Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Under Driver's Seat

G00462967

Courtesy of LAND ROVER NORTH AMERICA, INC.

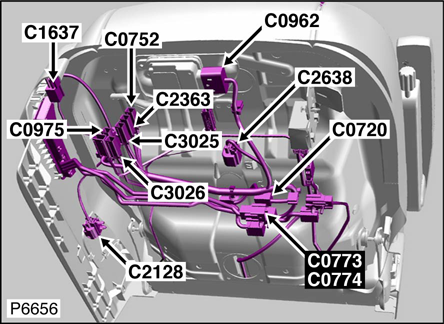

Fig 2: Under Driver's Seat (Passenger's Seat Similar)

G00478617

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 3: Under Front Of Vehicle

G00462970

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 4: Behind Left Side Of Front Bumper

G00462971

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 5: Left Side Of Engine Compartment

G00462972

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 6: Right Front Wheel Arch Liner

G00462973

Courtesy of LAND ROVER NORTH AMERICA, INC.

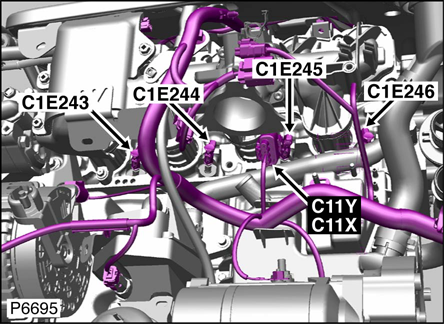

Fig 7: Behind Radiator

G00478629

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 8: Steering Wheel

G00462975

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 9: Right Side Of Dash

G00462976

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 10: Left Side Of Engine Compartment

G00462977

Courtesy of LAND ROVER NORTH AMERICA, INC.

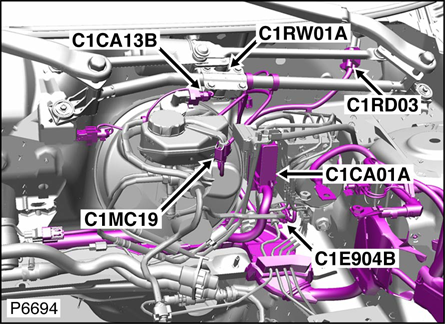

Fig 11: Left Rear Of Engine Compartment

G00478619

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 12: Left Front Wheelwell

G00462979

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 13: Right Front Wheelwell

G00462980

Courtesy of LAND ROVER NORTH AMERICA, INC.

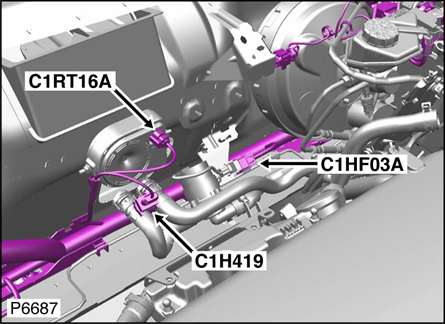

Fig 14: Left Rear Of Engine Compartment

G00478620

Courtesy of LAND ROVER NORTH AMERICA, INC.

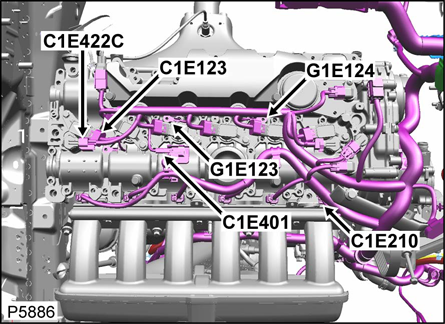

Fig 15: Top Of Engine

G00478622

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 16: Center Rear Of Engine Compartment

G00462983

Courtesy of LAND ROVER NORTH AMERICA, INC.

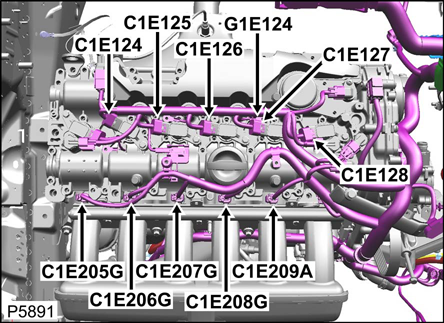

Fig 17: Top Of Engine

G00478621

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 18: Left Side Of Engine

G00462985

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 19: Top Rear Of Engine

G00462986

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 20: Rear Of Engine

G00462987

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 21: Right Side Of Engine

G00462988

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 22: Front Of Engine Compartment

G00462989

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 23: Left Rear Of Engine

G00462990

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 24: Right Rear Of Engine Compartment

G00462991

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 25: Under Front Of Vehicle

G00462992

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 26: Behind Right Side Of Front Bumper

G00462994

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 27: Left Front Of Engine Compartment

G00462995

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 28: Behind Left Side Of Front Bumper

G00462996

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 29: Right Front Of Engine Compartment

G00462997

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 30: Underside Of Engine Compartment Hood

G00462998

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 31: Right Side Of Dash

G00463000

Courtesy of LAND ROVER NORTH AMERICA, INC.

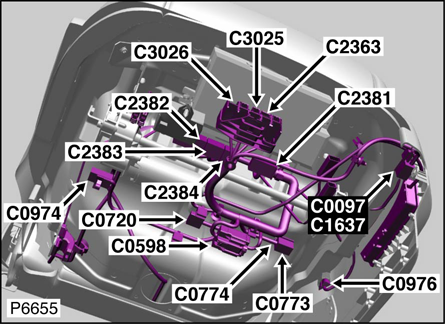

Fig 32: Under Driver's Seat

G00478618

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 33: Behind Center Of Dash

G00463002

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 34: Under Center Console

G00463003

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 35: Left "D" Pillar

G00471251

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 36: Right "D" Pillar

G00463005

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 37: Driver's Door

G00463006

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 38: Front Passenger's Door

G00463007

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 39: Left Rear Door

G00463008

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 40: Right Rear Door

G00463009

Courtesy of LAND ROVER NORTH AMERICA, INC.

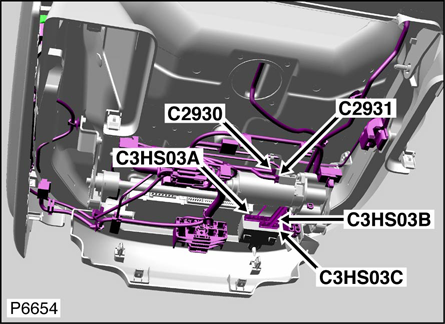

Fig 41: Under Driver's Seat

G00478624

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 42: Under Left Side Of Dash

G00463011

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 43: Under Left Side Of Dash

G00463012

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 44: Center Of Dash

G00463013

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 45: Behind Center Of Dash

G00463014

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 46: Behind Center Of Dash

G00463015

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 47: Left Side Of Dash

G00463016

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 48: Top Center Of Dash

G00463017

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 49: Underside Of Steering Column

G00463018

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 50: Steering Column

G00463020

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 51: Center Of Dash

G00463021

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 52: Right Side Of Dash

G00463022

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 53: Under Center Console

G00463023

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 54: Left Side Of Dash

G00463024

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 55: Under Left Side Of Dash

G00463025

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 56: Under Front Passenger's Seat

G00463026

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 57: Under Driver's Seat

G00463027

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 58: Under Driver's Seat

G00463028

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 59: Under Front Passenger's Seat

G00463029

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 60: Center Of Headlining

G00463030

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 61: Under Front Passenger's Seat

G00463031

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 62: Under Rear Of Vehicle

G00463032

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 63: Under Center Console

G00463033

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 64: Under Center Console

G00463034

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 65: Driver's Seat

G00463035

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 66: Front Passenger's Seat

G00463036

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 67: Left Rear Wheelwell

G00463037

Courtesy of LAND ROVER NORTH AMERICA, INC.

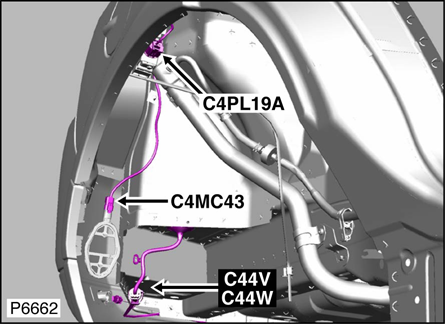

Fig 68: Right Rear Wheelwell

G00478625

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 69: Under Front Passenger's Seat

G00463039

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 70: Driver's Seat

G00463040

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 71: Front Passenger's Seat

G00463041

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 72: Driver's Seat

G00463042

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 73: Front Passenger's Seat

G00463043

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 74: Left "B" Pillar

G00463044

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 75: Right "B" Pillar

G00463045

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 76: Center Of Headlining

G00463046

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 77: Left Rear Wheelwell

G00463047

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 78: Rear Of Headlining

G00463048

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 79: Left Rear Quarterpanel

G00463050

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 80: Luggage Compartment

G00463051

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 81: Left Rear Wheelwell

G00463052

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 82: Right Rear Wheelwell

G00463053

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 83: Left Front Of Luggage Compartment

G00463054

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 84: Rear Of Roof

G00463055

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 85: Right Rear Quarterpanel

G00463056

Courtesy of LAND ROVER NORTH AMERICA, INC.

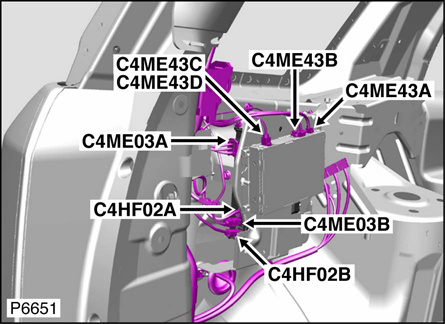

Fig 86: Right Rear Quarterpanel

G00478626

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 87: Left Rear Quarterpanel

G00463058

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 88: Tailgate

G00463059

Courtesy of LAND ROVER NORTH AMERICA, INC.

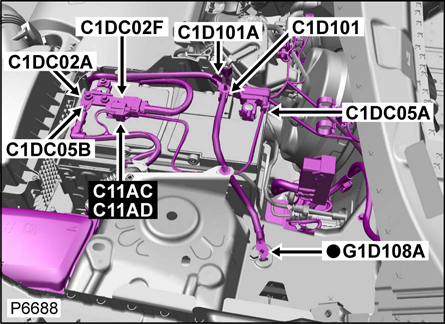

Fig 89: Left Front Of Engine Compartment

G00478627

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 90: Left Front Of Engine Compartment

G00463061

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 91: Right Front Of Engine Compartment

G00463062

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 92: Right Side Of Dash

G00463063

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 93: Auxiliary Junction Box

G00471247

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 94: Battery Junction Box

G00471248

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 95: HVAC Overview

G00471249

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 96: Left Front Of Engine Compartment

G00478628

Courtesy of LAND ROVER NORTH AMERICA, INC.
