Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

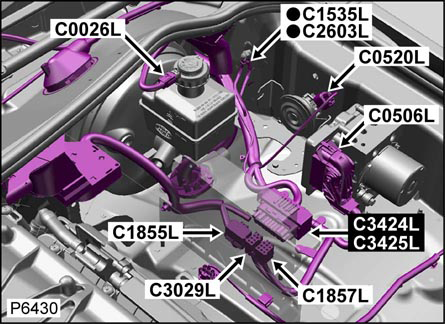

| ABS Module (C0506) | Left rear of engine compartment. See Figure. |
| AFS Control Module (C2193) | Base of right "A" pillar. See Figure. |

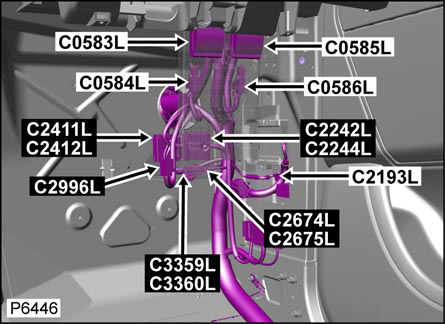

| Air Suspension Module (C2320 & 2321) | Left "A" pillar. See Figure. |

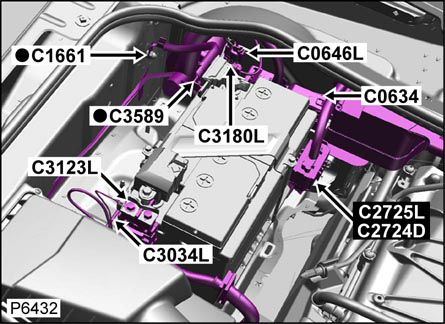

| Battery Monitoring System Module (C3180) | Right side of engine compartment. See Figure. |

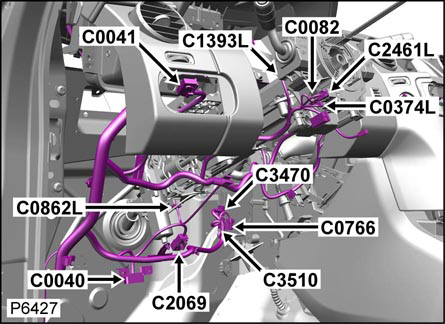

| Climate Control Module (C3470) | Behind left side of dash. See Figure. |
| DAB/SDARS Tuner Module (C2155 & C2158) | Behind right rear trim panel. See Figure. |

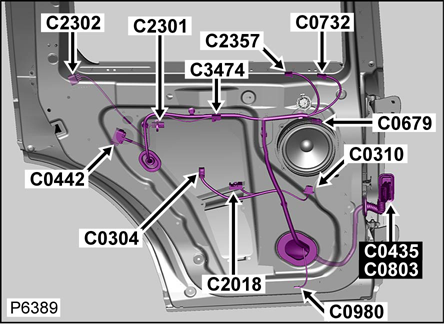

| Door Handle Module (C2301) | Behind rear door trim panel. See Figure. |
| Door Latch Module (C2302) | Rear door. See Figure. |

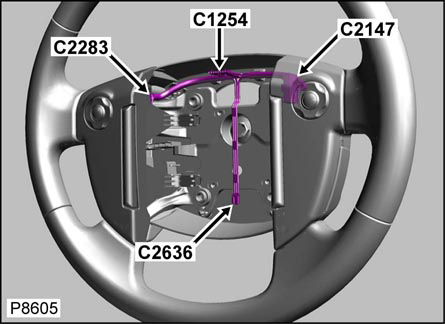

| Driver Air Bag Module (C2636) | Center of steering wheel. See Figure. |

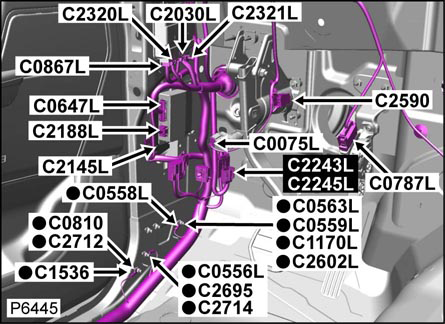

| Electric Brake Trailer Module (C2590) | Driver's side footwell. See Figure. |

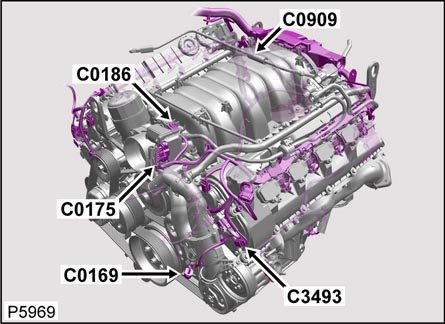

| Electric Throttle Unit (C0175) | Top of engine. See Figure. |
| Engine Control Module (ECM) Connector (C0634) | Right side of engine compartment. See Figure. |

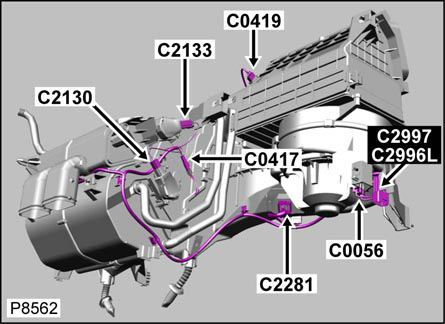

| Front Blower Motor Control Module (C2281) | Behind right side of dash. See Figure. |

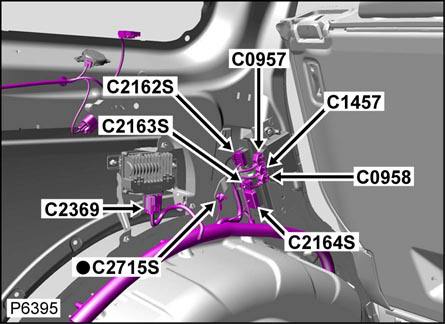

| Fuel Pump Driver Module (2369) | Left side of luggage compartment. See Figure. |
| Heated Seat Module (Rear) (C2084) | Under rear seat. See Figure. |

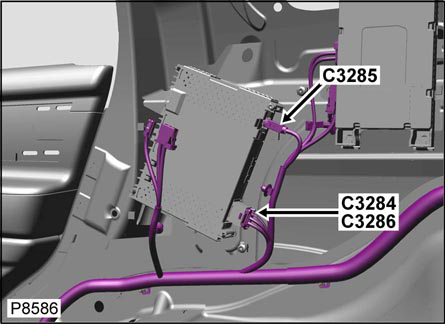

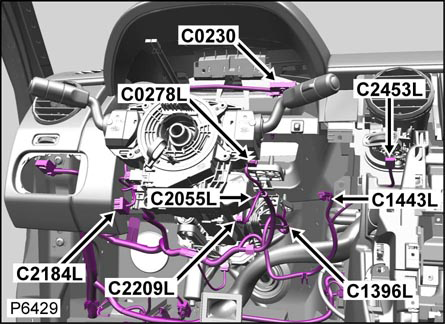

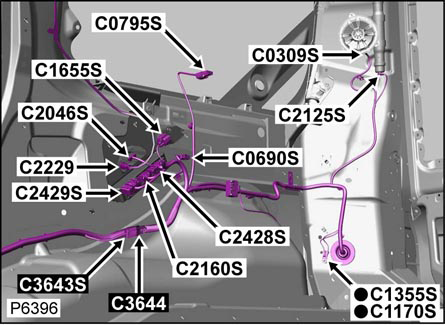

| IBOC Radio Module (C3286) | Right side of luggage compartment. See Figure. |
| Immobilizer Antenna Module | Under steering column. See Figure. |
| Keyless Module | Right rear quarter trim panel. See Figure. |

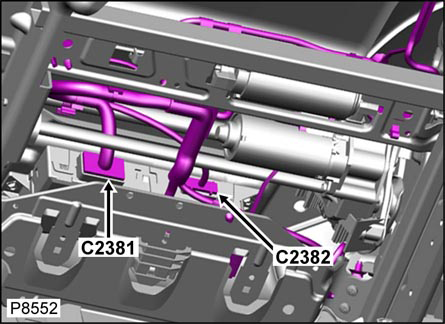

| Memory Control Module (C2381) | Under driver's seat. See Figure. |
| Parking Aid Module (C0957) | Base of left "C" pillar. See Figure. |

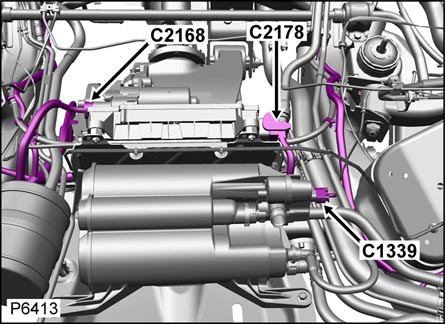

| Parking Brake Module Connector (C2178) | Under center of vehicle. See Figure. |

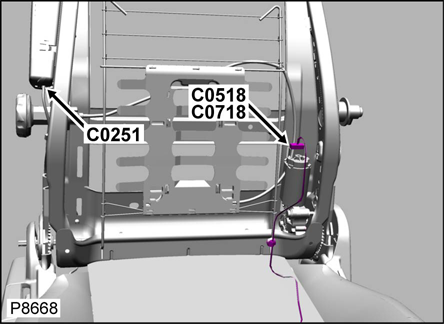

| Passenger Air Bag Module (C0251) | Side of passenger seat. See Figure. |

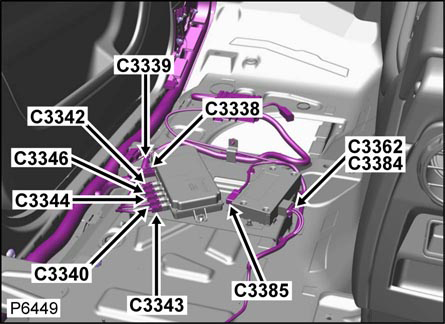

| Portable Audio Interface Module (C3362) | Under left front seat. See Figure. |
| Rear Blower Motor Control Unit (C2282) | On rear blower motor assembly. See Figure. |
| Rear Differential Control Module (C2162) | Left side of luggage compartment. See Figure. |

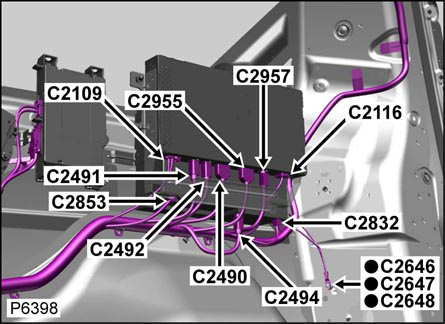

| Rear Seat-Entertainment Module (C2109) | Right rear trim panel. See Figure. |

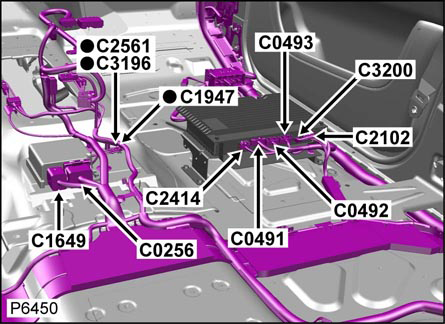

| Restraints Control Module (C1649) | Under center console. See Figure. |

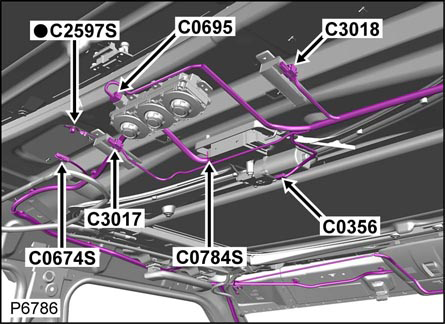

| Roof Opening Panel Control Module (C0784) | Rear of headliner. See Figure. |
| Speed Control Module (C2145) | Left kick panel. See Figure. |

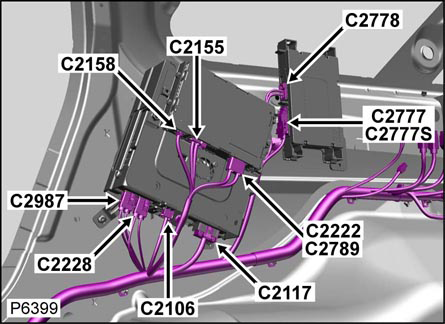

| Telephone Module (C2777) | Behind right rear trim panel. See Figure. |
| Transfer Box Control Module (C1855, C1857 & C3029) | Left side of engine compartment. See Figure. |
