Start Control Unit: Removal

NOTE: This step must be performed if replacing the start control unit.

NOTE: Make sure that all keys (remote control handsets) are present when performing this procedure.

Using the Land Rover approved diagnostic equipment, interrogate the start control unit and upload the stored data.
Make the SRS system safe. Refer to STANDARD WORKSHOP PRACTICES .
Remove the driver lower air bag. Refer to DRIVER LOWER AIR BAG MODULE .
Remove the starter control unit trim cover.
Remove the instrument cluster surround.
Remove the steering column lower cowl.
Adjust the steering column to its lowest position.

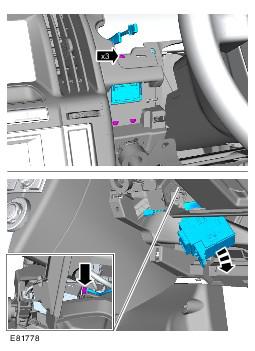

See figure
Remove the start control unit.
