In-Vehicle Temperature Sensor: Removal

WARNING: This page is about a different car, the 2012 Land Rover Range Rover Sport and 2011 Land Rover Range Rover Sport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fully extend the steering column for access.
  2. Remove the instrument panel access panel.
    • Release the 2 clips.
    GJ0013622
  3. Remove the steering column upper shroud.
    • Release the 6 clips.
    GJ0014051

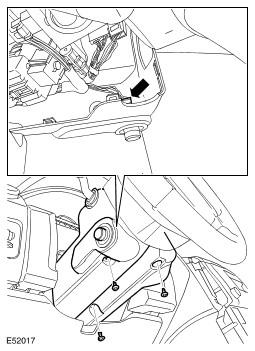

  4. Remove the steering column lower shroud.
    • Remove the 3 Torx screws.
    • Disconnect the electrical connector.
    GJ0014052

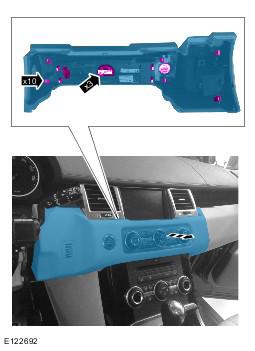

  5. Remove the instrument panel center finisher.
    GJ0013625
  6. Release the steering column gaiter panel.
    • Remove the 2 Torx screws.
    • Release the 2 clips.
    GJ0014053

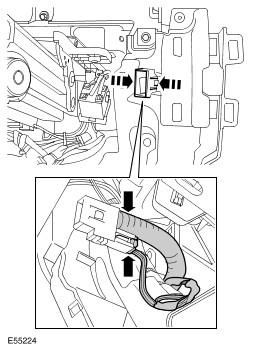

  7. Remove the in-vehicle temperature sensor.
    • Release the 2 clips.
    • Disconnect the electrical connector.
    • Disconnect the hose.
    GJ0014054
