Climate Control Assembly: Removal
WARNING: This page is about a different car, the 2013 Land Rover LR4, 2012 Land Rover LR4, 2011 Land Rover LR4, and 2010 Land Rover LR4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.
NOTE:
Make sure that the gear selector lever is in position N before removing any components.
- Refer to Floor Console Upper Section article.

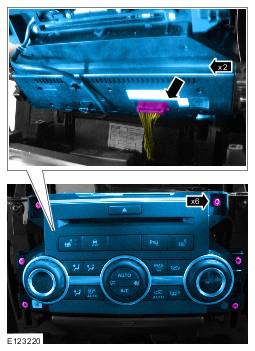

- Torque: 2.5 Nm
- See figure
- See figure

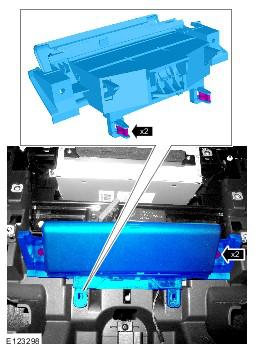

- Torque: 2.5 Nm
- Torque: 2.5 Nm

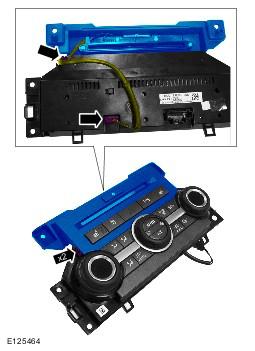

- See figure

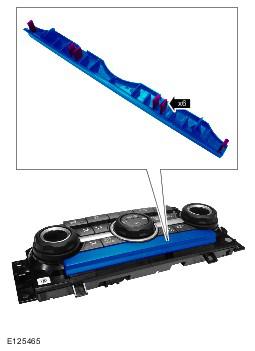

- See figure
CAUTION:
When installing the lower locating tang of the trim panel, make sure the floor console is not damaged. If necessary protect the surrounding areas using masking tape.
NOTE:

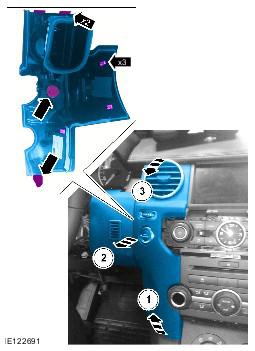

LHD illustration shown, RHD is similar.
NOTE:
Remove in the sequence shown.
NOTE:
To install, reverse the removal sequence.

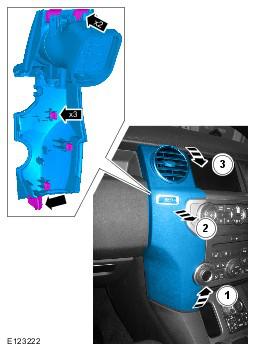

CAUTION:
When installing the lower locating tang of the trim panel, make sure the floor console is not damaged. If necessary protect the surrounding areas using masking tape.
NOTE:
Remove in the sequence shown.
NOTE:
To install, reverse the removal sequence.
