In-Vehicle Temperature Sensor: Removal

WARNING: This page is about a different car, the 2013 Land Rover LR4, 2012 Land Rover LR4, 2011 Land Rover LR4, and 2010 Land Rover LR4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fully extend the steering column for access.
  2. Remove the instrument panel access panel.
    • Release the 2 clips.
    GJ0013622
  3. Remove the steering column upper shroud.
    • Release the 6 clips.
    GJ0016989
  4. Remove the steering column lower shroud.
    • Remove the 3 Torx screws.
    • Release the steering column adjustment lever.
    GJ0016990

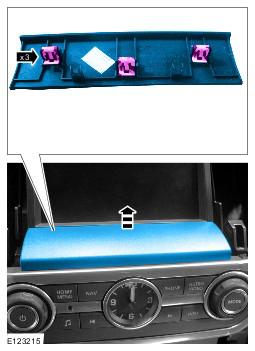

  5. Remove the center console upper finisher trim.
    GJ0018946

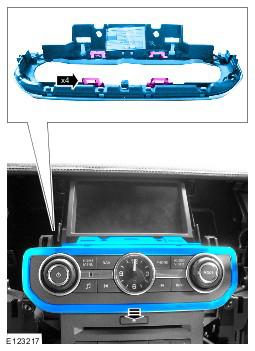

  6. Remove the audio unit bezel.
    GJ0018948
  7. Remove the instrument panel center finisher.
    GJ0018944
  8. Release the steering column gaiter panel.
    • Remove the 2 Torx screws.
    • Release the 2 clips.
    GJ0014053
  9. Remove the in-vehicle temperature sensor.
    • Release the 2 clips.
    • Disconnect the electrical connector.
    • Disconnect the hose.
    GJ0014054
