Navigation System Components

WARNING: This page is about a different car, the 2013 Land Rover LR4, 2012 Land Rover LR4, 2011 Land Rover LR4, and 2010 Land Rover LR4. However, it is still accessible from the selected car via links, so may be relevant.

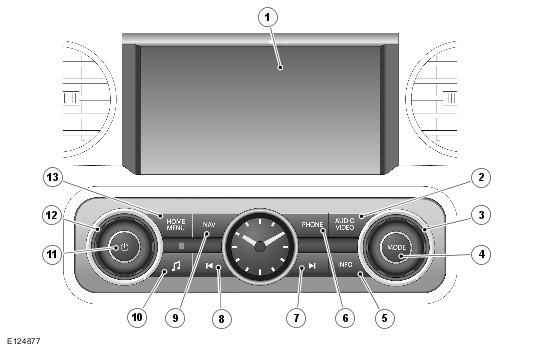

Touch Screen Display (TSD)

Courtesy of JAGUAR CARS, INC.

Item Number	Description
1	Touch screen display
2	Access Audio/Video Menu
3	Scroll up down (menu control)
4	Mode
5	Traffic/News information
6	Access Phone Menu
7	Search up/increase
8	Search down/increase
9	Access Navigation Menu
10	Tone hard key
11	Audio on/off
12	Volume
13	Access touch screen Home Menu

The TSD (touch screen display) and Integrated Control Panel are located in the center of the instrument panel and are the driver's control interface for the navigation system. The TSD is connected to the MOST ring and communicates with the other components in the audio/infotainment system.

The TSD is a seven inch touch sensitive, 1280 X 480 pixels LCD (liquid crystal display) VGA screen.

In addition to the navigation system the TSD and the Integrated Control Panel provides the driver with display and control of various other vehicle functions.

Microphone

Courtesy of JAGUAR CARS, INC.

The microphone is located in the front interior lamp console. The standard, directional type microphone is connected to the Touch Screen Display (TSD) for voice recognition of the navigation system and the telephone. The microphone has an integrated noise suppression system for hands-free telephone use.

TMC Antenna Amplifier

Courtesy of JAGUAR CARS, INC.

The TMC (traffic message channel) antenna amplifier is located above the rear left-hand-side window and is connected to the FM antenna which is integrated into the window. The TMC signals are received through the normal radio signals via the RDS (radio data system) and are routed separately from the radio signals via the TMC antenna amplifier to the Touch Screen Display unit.

Global Positioning System Antenna

Courtesy of JAGUAR CARS, INC.

The global positioning system (GPS) antenna is located in the rear spoiler and connected to the Touch Screen Display unit.

VICS Beacon Antenna (Japan only)

Courtesy of JAGUAR CARS, INC.

The VICS beacon is located on top of the instrument panel on the left-hand-side. The beacon is connected to the TSD via a screened co-axial cable.

VICS Antenna Amplifier (Japan only)

Courtesy of JAGUAR CARS, INC.

The VICS antenna amplifier is located above the rear left-hand-side window. The amplifier is connected to the TSD unit.
