Navigation System Antenna: Removal
WARNING: This page is about a different car, the 2013 Land Rover LR4, 2012 Land Rover LR4, 2011 Land Rover LR4, and 2010 Land Rover LR4. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the battery ground cable. Refer to Specifications .
- Remove the high mounted stoplamp. Refer to High Mounted Stoplamp .
- Remove the liftgate trim panel.
- Release the 4 clips.

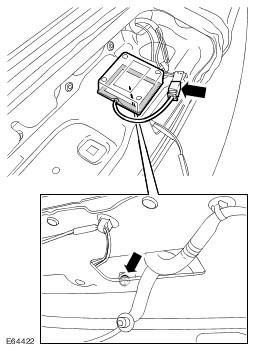

- Remove the navigation system antenna.
- Remove the screw.
- Release and disconnect the electrical connector.
- Cut through the adhesive retaining pad.
