Navigation System Display Module: Removal

WARNING: This page is about a different car, the 2013 Land Rover LR4, 2012 Land Rover LR4, 2011 Land Rover LR4, and 2010 Land Rover LR4. However, it is still accessible from the selected car via links, so may be relevant.
  1. See figure
    GJ0018946
  2. Torque: 2.5 Nm
    GJ0018947
  3. See figure
    GJ0018948
    4. NOTE: LHD illustration shown, RHD is similar.
  4. See figure
    GJ0018944
  5. See figure
    GJ0018949
  6. See figure

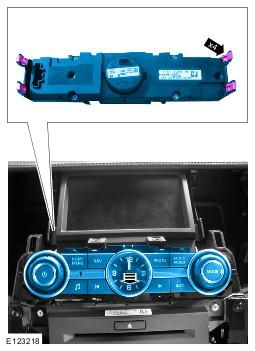

    GJ0018954
  7. See figure
    GJ0018955
  8. Torque: 2.5 Nm

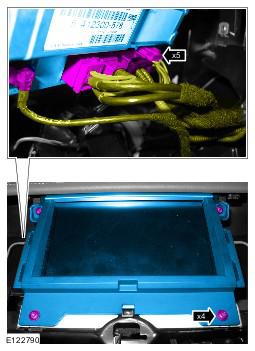

    GJ0013680
    9. NOTE: Do not disassemble further if the component is removed for access only.
  9. See figure

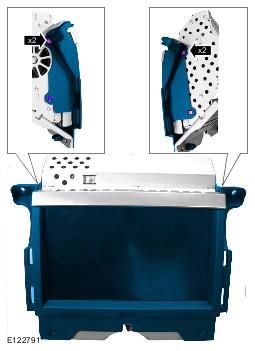

    GJ0013681
