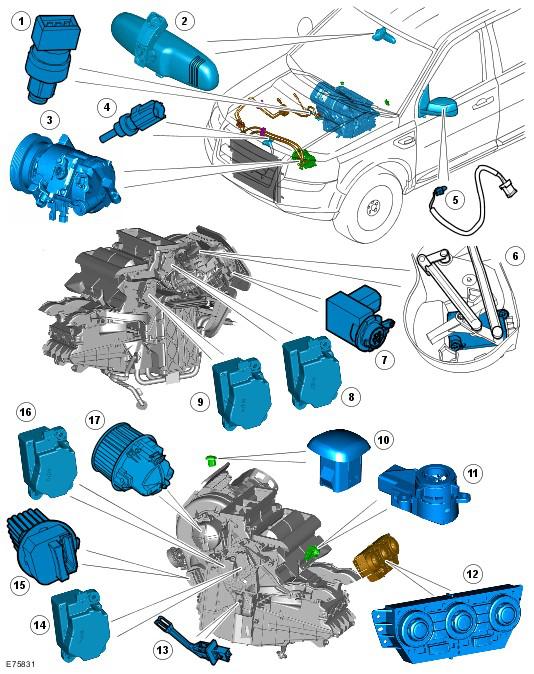

| 1 |
Refrigerant pressure sensor |
| 2 |
Cabin humidity sensor (if fitted) |
| 3 |
Air Conditioning (A/C) compressor (i6 shown) |
| 4 |
Engine Coolant Temperature (ECT) sensor |
| 5 |
Ambient air temperature sensor |
| 6 |
Air intake stepper motor |
| 7 |
Pollution sensor (if fitted) |
| 8 |
Windshield distribution (defrost) stepper motor |
| 9 |
Right Hand (RH) temperature blend stepper motor |
| 10 |
Sunload sensor |
| 11 |
Cabin temperature sensor |
| 12 |
Automatic Temperature Control (ATC) module |
| 13 |
Evaporator temperature sensor |
| 14 |
Left Hand (LH) temperature blend stepper motor |
| 15 |
Blower motor control module |
| 16 |
Face/feet distribution stepper motor |
| 17 |
Blower motor |
