Seat Switch, Recline Button Cap Replacement (SSM65557)
Publication date: 2015-03-16Reference number: SSM65557
SEAT SWITCH, RECLINE BUTTON CAP REPLACEMENT
TECHNICAL SERVICE BULLETIN
Reference Number(s): SSM65557, Date of Issue:
16-Mar-2015
| LAND ROVER: | LR2 / L359, LR4/L319, Range Rover Sport / L320 |
| CATEGORY: | Body |
SERVICE INFORMATION
Symptom 101000 Seating
Attachments 1Seat Switch.pdf (1Seat Switch.pdf)
ISSUE
Content

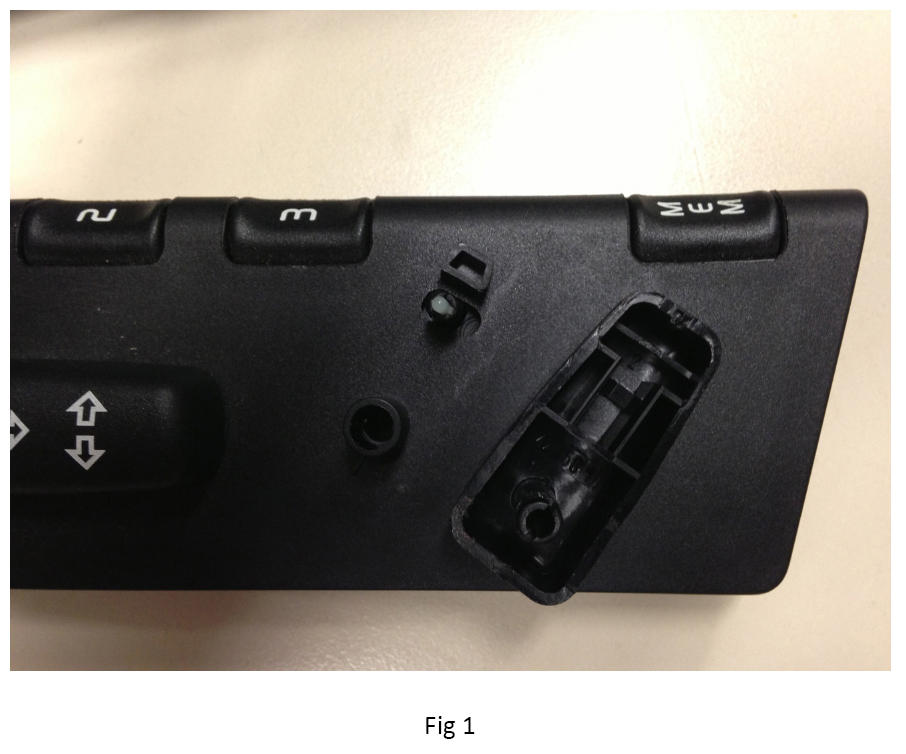

Seat Switch Pack Recline Button cap is damaged or has broken / fallen off in service. (See fig.1)
ACTION

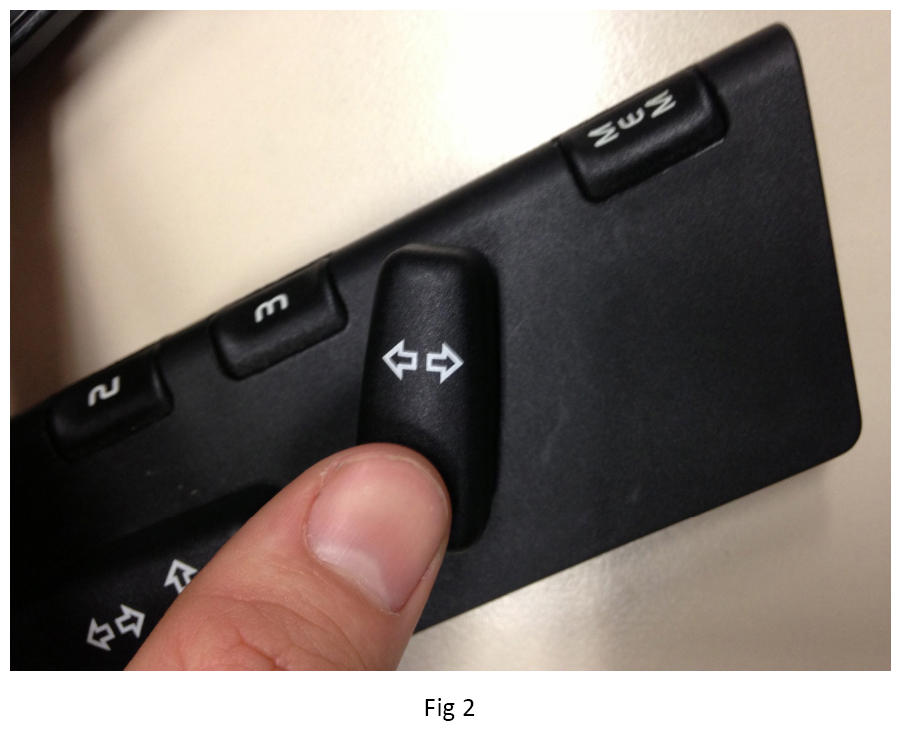

Replace by pressing on new button cap Part No: LR045801 (See fig.2)
