Gearshift Interlock Button/Spring Issue (SSM66837)
Publication date: 2015-02-09Reference number: SSM66837
GEARSHIFT INTERLOCK BUTTON/SPRING ISSUE
TECHNICAL SERVICE BULLETIN
Reference Number(s): SSM66837, Date of Issue:
February 9, 2015
| LAND ROVER: | LR2/L359 |
| CATEGORY: | Driveline |
SERVICE INFORMATION
Symptom 503000 Automatic Transmission Engagement Concerns
Attachments 1Appendix 1 Gear Selector.pdf (1Appendix 1 Gear Selector.pdf)
1Appendix 2 Gear Selector.pdf (1Appendix 2 Gear Selector.pdf)
ISSUE
Content

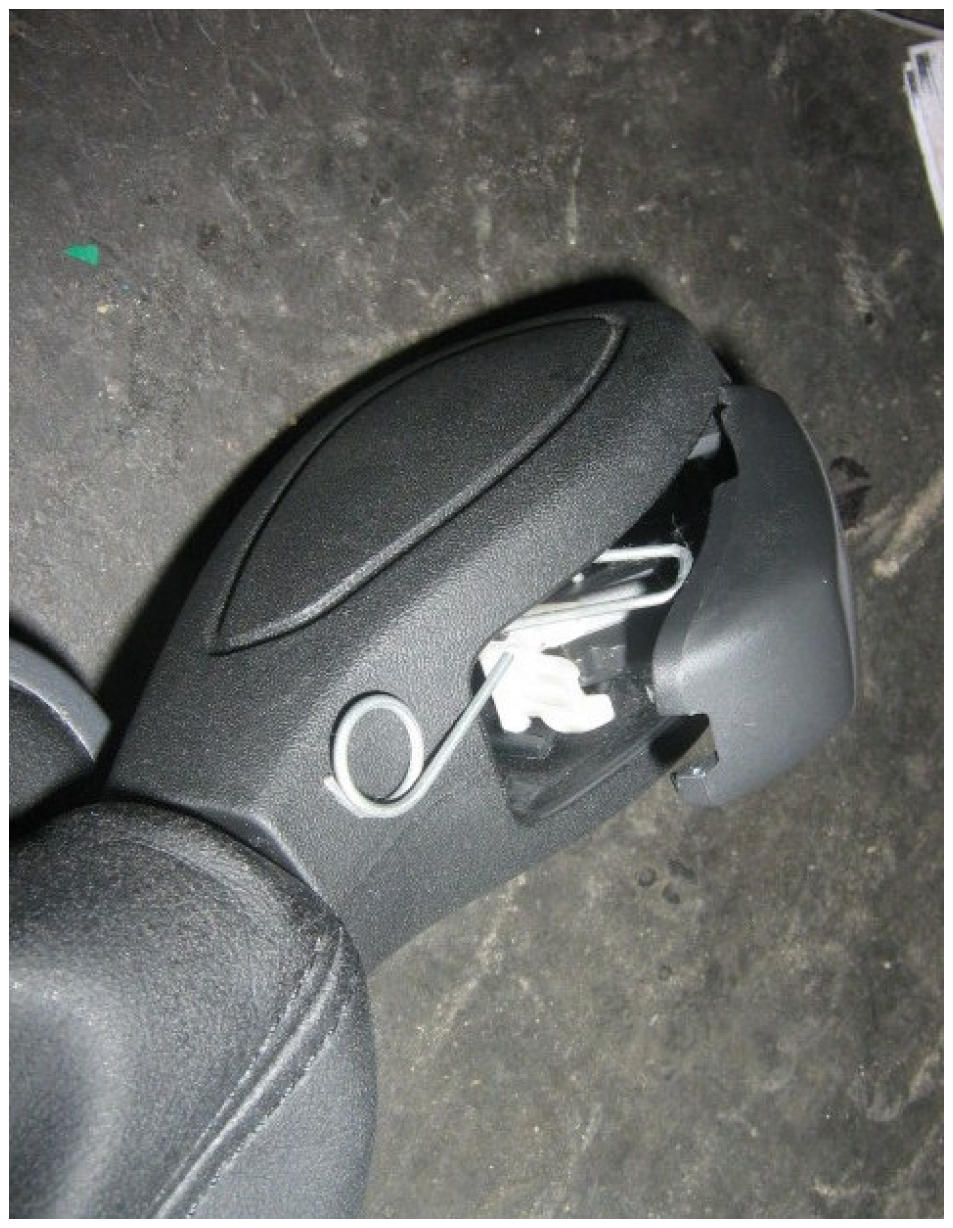

The gearshift interlock button inoperative or spring has come adrift (See Appendix 1)
CAUSE
The interlock button mechanism has been modified to prevent this issue from Vin No.
H372254 UK Build
L910950 Pune Build
ACTION

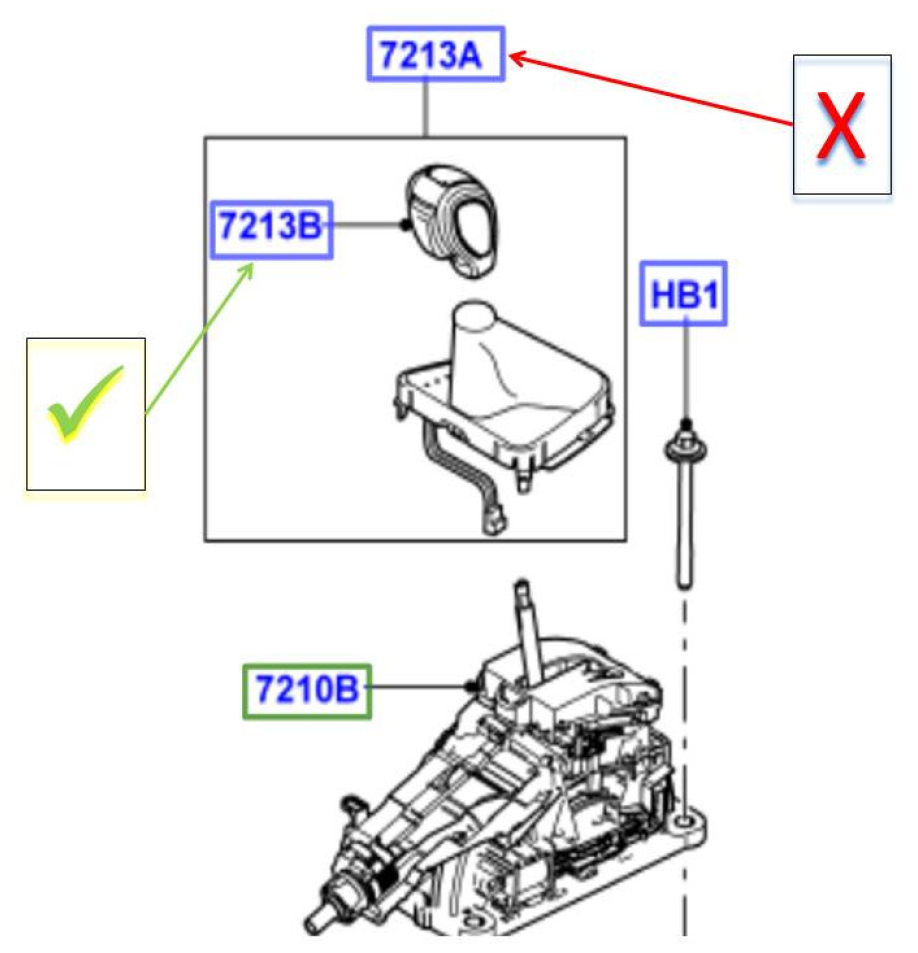

To resolve this issue please replace the gear selector knob ONLY
(See Appendix 2)
NOTE:
Replacement of the complete assemby is NOT
necessary.
Please only submit further EPQR's for any vehicles that were manufactured later than the above assured VIN's
