FREELANDER Key Case Bulging (SSM72120)

Publication date: 2014-12-17
Reference number: SSM72120

FREELANDER KEY CASE BULGING

TECHNICAL SERVICE BULLETIN

Reference Number(s): SSM72120, Date of Issue: 17-Dec-2014

LAND ROVER:	LR2/L359
CATEGORY:	Body

Symptom 112000 Latches/Locks & Security

Attachments Example Freelander key bulging.pdf (Example Freelander key bulging.pdf)

Freelander key differences.pdf (Freelander key differences.pdf)

Content

NOTE: Only applicable to early type key fitted up to 12 model year.

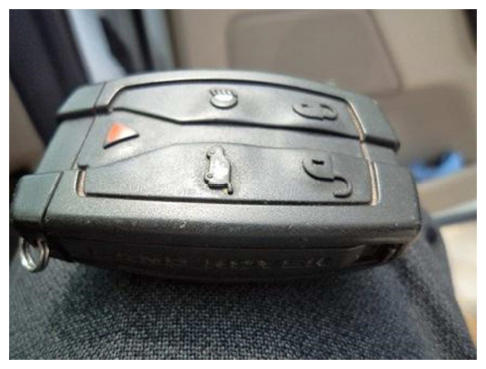

Reports of key case bulging. See attached photo.

Keys were manufactured oversize.

A number of improvements were made to the manufacture of the key when production moved from Cadiz, Spain to Yanfeng, China. See attachement.

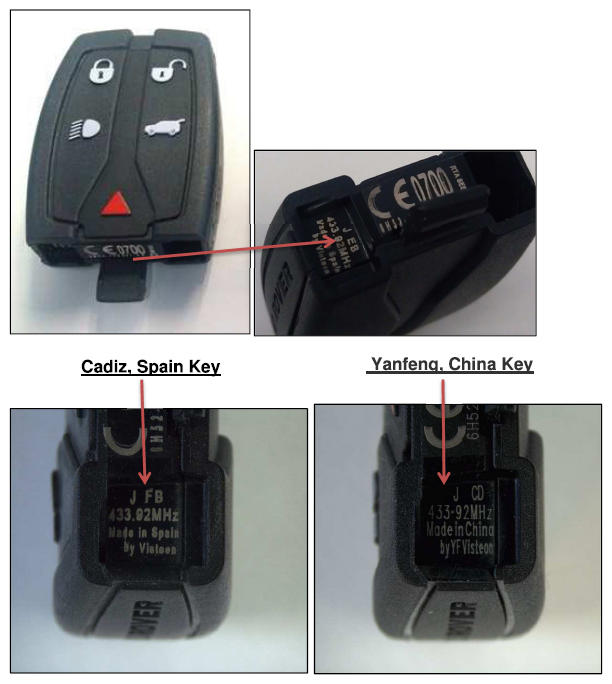

The country of Manufacture can be identified by unclipping the emergency key blade.
With the clip for the emergency key blade at the bottom view the block of text to the left of the CE mark
Keys from Cadiz, Spain have 'Made in Spain'
Key from Yanfeng China have 'Made in China'

EPQR's are only required for issues with keys manufactured in China.

Please ensure you attach a photo to the EPQR showing this information.

Please retain the parts for investigation.
