Steering Column: Removal

  1. Make the SRS system safe. Refer to STANDARD WORKSHOP PRACTICES .
  2. Remove the driver lower air bag. Refer to DRIVER LOWER AIR BAG MODULE .
  3. Remove the steering column lower cowl.
    GJ0021113

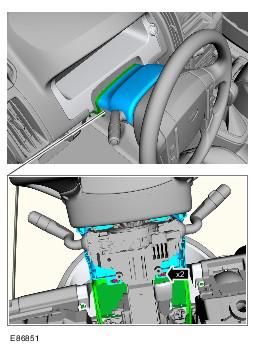

  4. Remove the steering column upper cowl.
    GJ0021114
    5. CAUTION: Take extra care not to damage the clips.
  5. Release the steering column wiring harness.
    GJ0021115

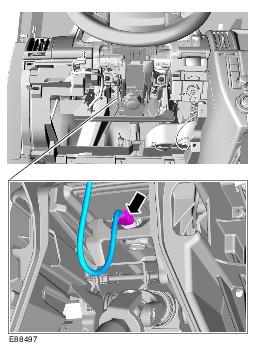

  6. If installed, disconnect the SRS ride-down electrical connector concealed at the rear of the steering column.
    GJ0021116
  7. Remove the steering column universal joint clamp bolt and release the shaft.
    GJ0021117

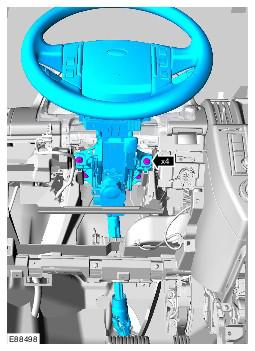

  8. Remove the steering column assembly.
    GJ0021118
    9. NOTE: Do not disassemble further if the component is removed for access only.

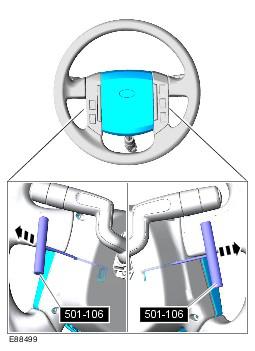

    • Using the special tool, remove the driver air bag module.

      Remover, Driver Air Bag (501-106)

    • Carefully release the 2 clips.
    GJ0021119
    10. WARNING: Do not probe supplemental restraint system (SRS) electrical connectors.
    • Disconnect the 3 electrical connectors.
    GJ0021120
  11. Remove the steering wheel.
    GJ0021121
    12. CAUTION: Make sure that the clockspring rotor does not rotate.
  12. Remove the clockspring.
    GJ0021122
