Special Tool(S)

501-F007  Inclinometer

CHECK

1. WARNING: Make sure to support the vehicle with axle stands.

   Raise and support the vehicle.

2. Refer to: FRONT BUMPER .

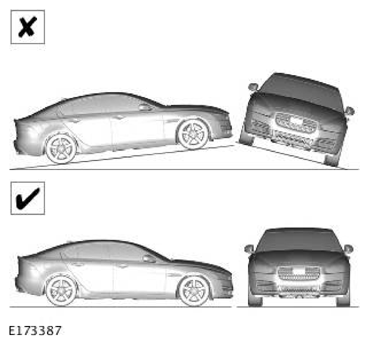

3. NOTE: Make sure that the vehicle is standing on a level surface.

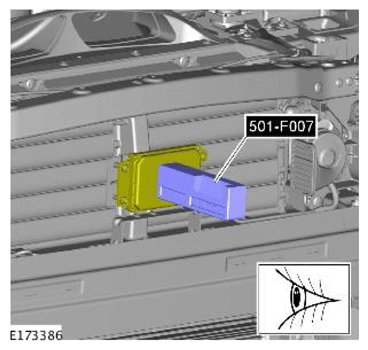

4. Using the special tool, check the speed control sensor is level, (+/- 0.5 degree).

   Special Tool(s): 501-F007

   ADJUSTMENT

5. Special Tool(s): 501-F007

6. Refer to: FRONT BUMPER .
7. • This procedure is required if:
   • The ACC radar needed to be removed or is misaligned in its position due to another repair operation.
8. • From the diagnostic tool menu, select: Service Alignment Mode.
   • The follow indicator will now be flashing, this indicates that the vehicle is in "service alignment" and now requires driving.
   • The vehicle speed must be above 30 mph (48 kph).
   • Choose a road with plenty of stationary objects, like street lights, road signs, or barriers. Use an inside or outside lane.
   • Following vehicles too closely will obscure the stationary targets from the radar, a time gap of 2 seconds is recommended.
   • A straight road will produce a quicker and better result, although the process will still operate on a curved road.
   • The time that the ACC module takes to align will vary, depending on the route, speed, number of targets, and individual module.
   • When the flashing follow indicator light extinguishes, the ACC system is now functional, and a required vehicle speed can now be set by the driver and the ACC system will operate as normal.
