Removal And Installation: Removal
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Disconnect the startup battery ground cable.
Refer to: SPECIFICATIONS .
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
- Remove the front bumper for access.
Refer to: FRONT BUMPER .

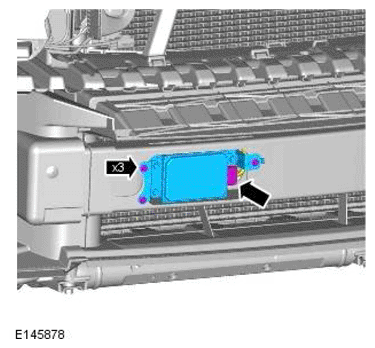

- Disconnect the electrical connector.
- Remove the 3 retaining bolts from the adaptive speed control module.
Torque: 5 Nm
