Automatic Transmission External Controls (G2423681): Specifications

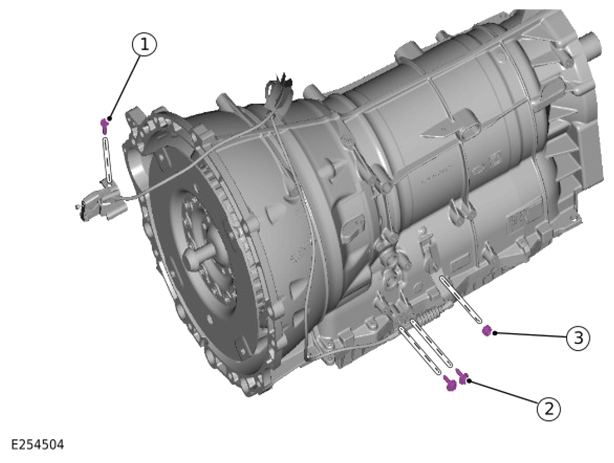

COMPONENT TORQUE LOCATION
G15309290Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
TORQUE SPECIFICATIONS

ITEM DESCRIPTION NM LB-FT
1 Emergency Park Release (EPR) cable to engine mounting bolt 10 7.4
2 Emergency Park Release (EPR) cable to transmission bolts 10 7.4
3 Emergency Park Release (EPR) lever nut 11 8.1
