Adaptive Speed Control Module Adjustment (G2245440): Check

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Remove the front bumper cover.
Refer to: FRONT BUMPER

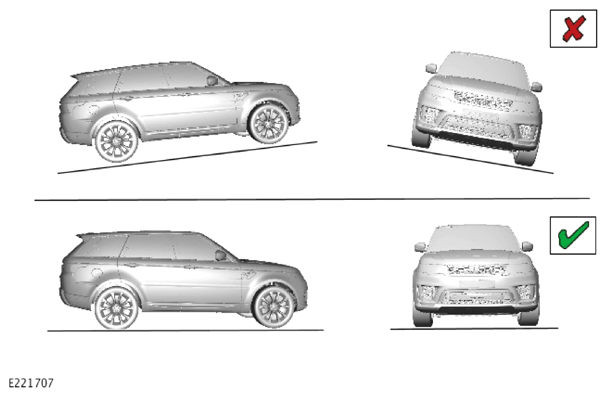

NOTE: Make sure that the vehicle is standing on a level surface.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Set the air suspension ride height to the STANDARD setting.
NOTE:

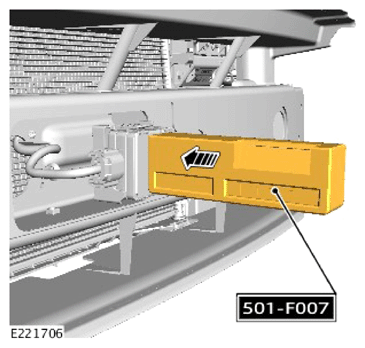

- Make sure that the special tool is installed to the front of the Adaptive Speed Control Module (ASCM), as it is shown in the illustration to check the alignment.
- The ASCM has no mechanical horizontal or vertical adjustment.
- If the alignment reading is not within tolerance, the vehicle may have accidental damage. Inspect the front end of the vehicle thoroughly and rectify any concerns.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using the special tool, check the ASCM alignment, (-2 degrees +/- 3 degrees).

Special Tool(s): 501-F007
Install the front bumper cover.
Refer to: FRONT BUMPER
