Speed Control (G2524160): Specifications

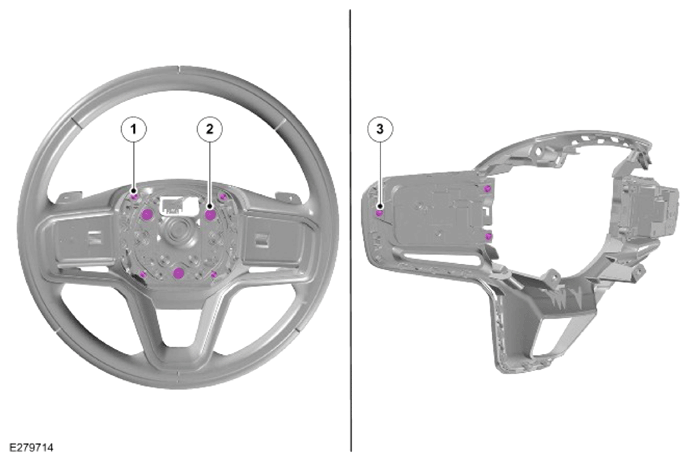

COMPONENT TORQUE LOCATION
G14514725Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
TORQUE SPECIFICATIONS

  DESCRIPTION NM LB-FT LB-IN
1 Horn switch bolts 6 - 53
2 Steering wheel trim bolts 2 - 18
3 Speed control switch screws 0.5 - 4
