Lexus
>>
1990
>>
ES 250 Automatic
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Anti-Lock Brake System
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Anti-Lock Brake System: Wiring Diagram

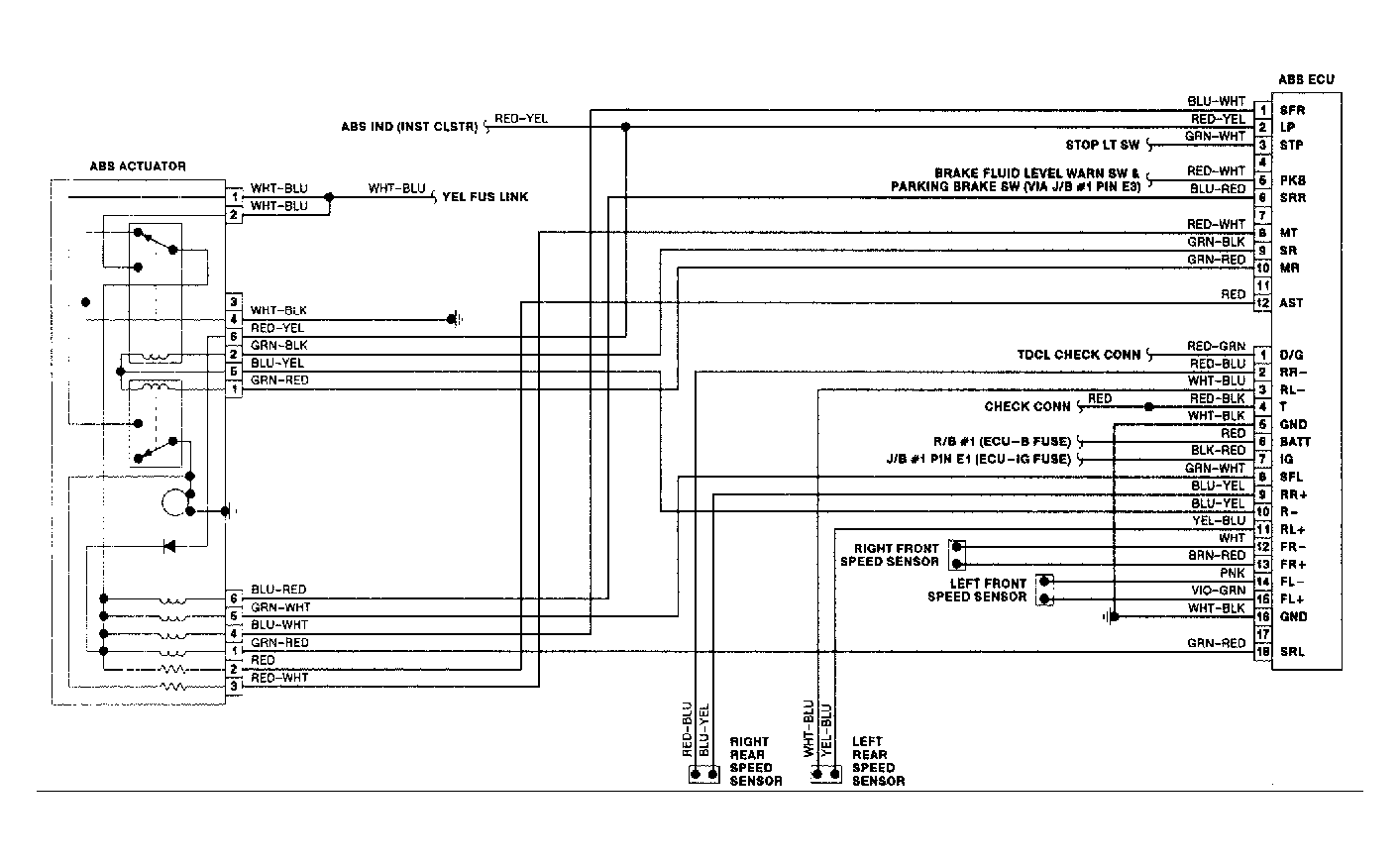

Fig 1: Anti-Lock Brake System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
