Remote Keyless Entry: Overhaul: Transmitter: Replacement

1. Prepare the new transmitter (with ROM).Remove the ECU from the vehicle.
2. Remove the ROM from the ECU. Install the New ROM into the ECU.See Fig 1.
3. Install the new ECU into the vehicle. See Fig 1.
4. Chech that door lock remote control operation works. See Fig 1.
5. Cut the new key to the shape of the replaced key. See Fig 1.

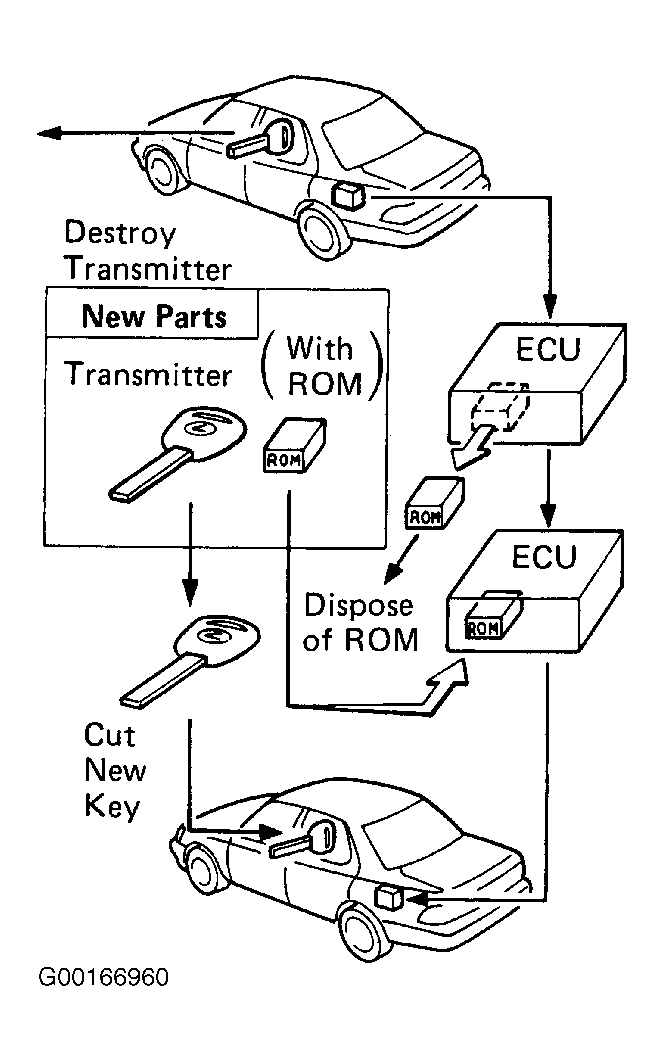

Fig 1: Replacing Transmitter

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
