Component Locations

COMPONENT LOCATIONS

Component	Location
GAUGE Fuse	In Junction Block No. 1. See Fig 1 & Fig 2.
Power Window CB (Circuit Breaker)	In Junction Block No. 1. See Fig 1 & Fig 2.
Power Window Main Relay	In Junction Block No. 1. See Fig 1 & Fig 2.
Ground IE	Behind Left Kick Panel. See Fig 3.
Ground IH	Behind Right Kick Panel. See Fig 3.

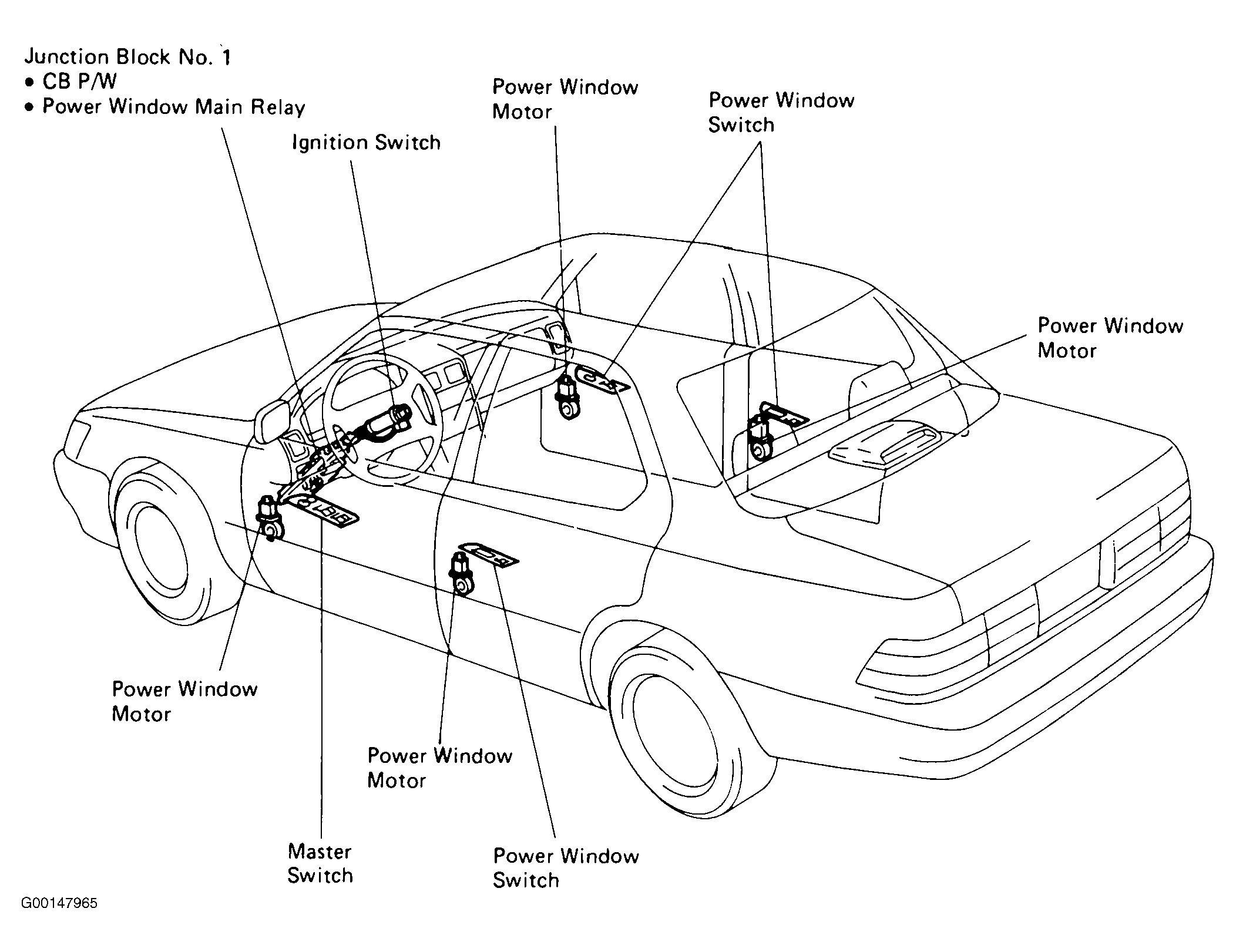

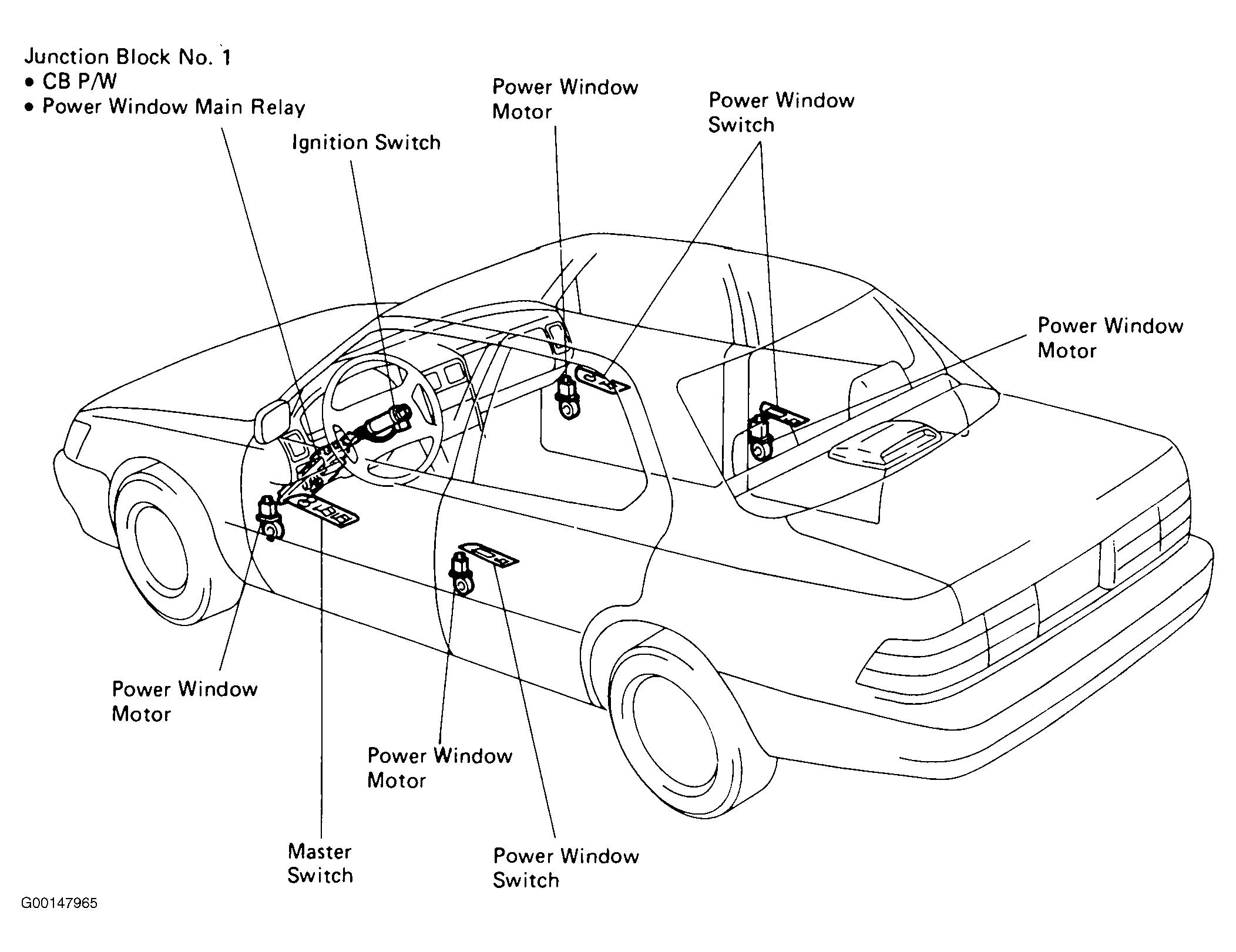

Fig 1: Locating Power Window Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

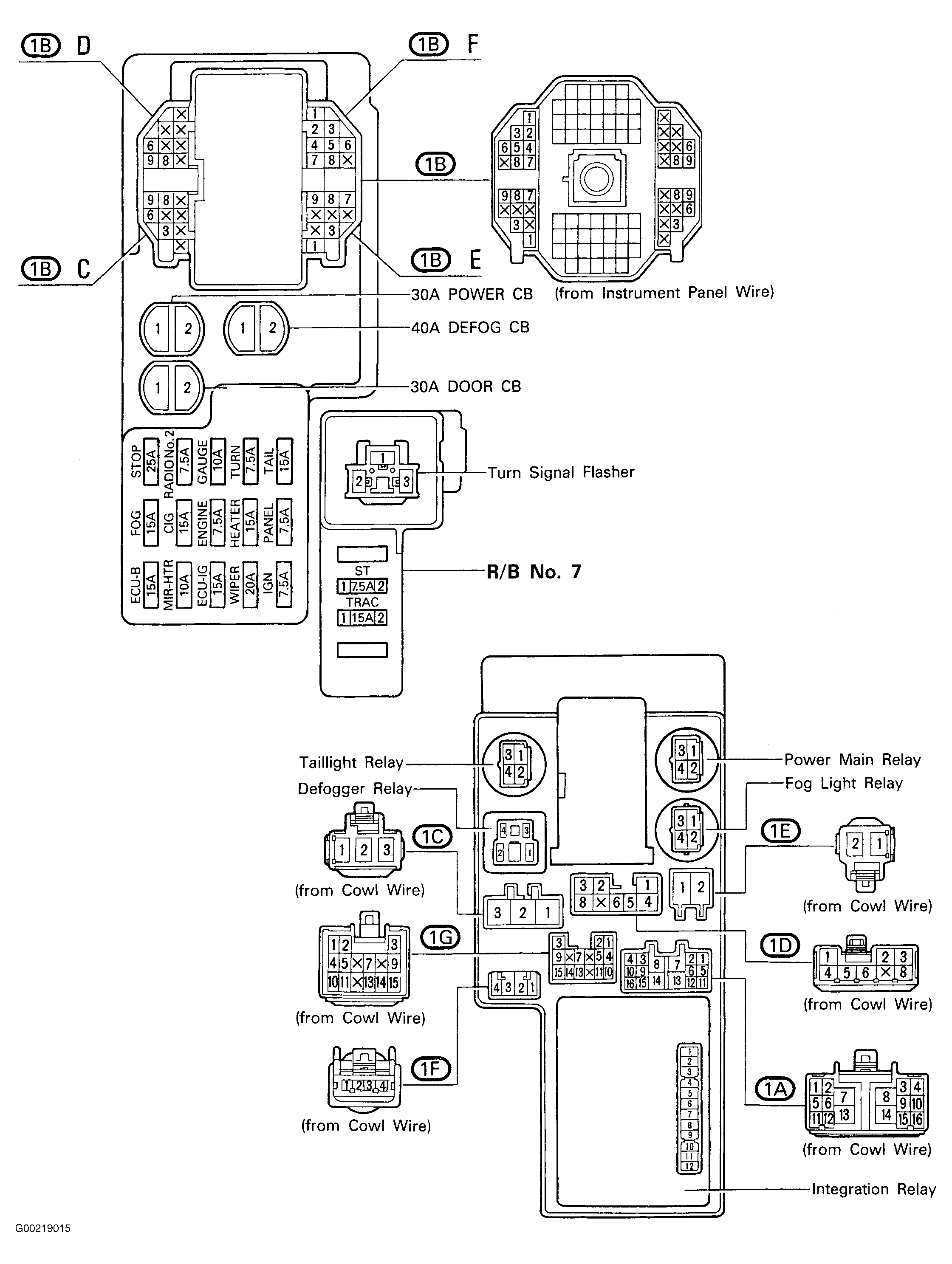

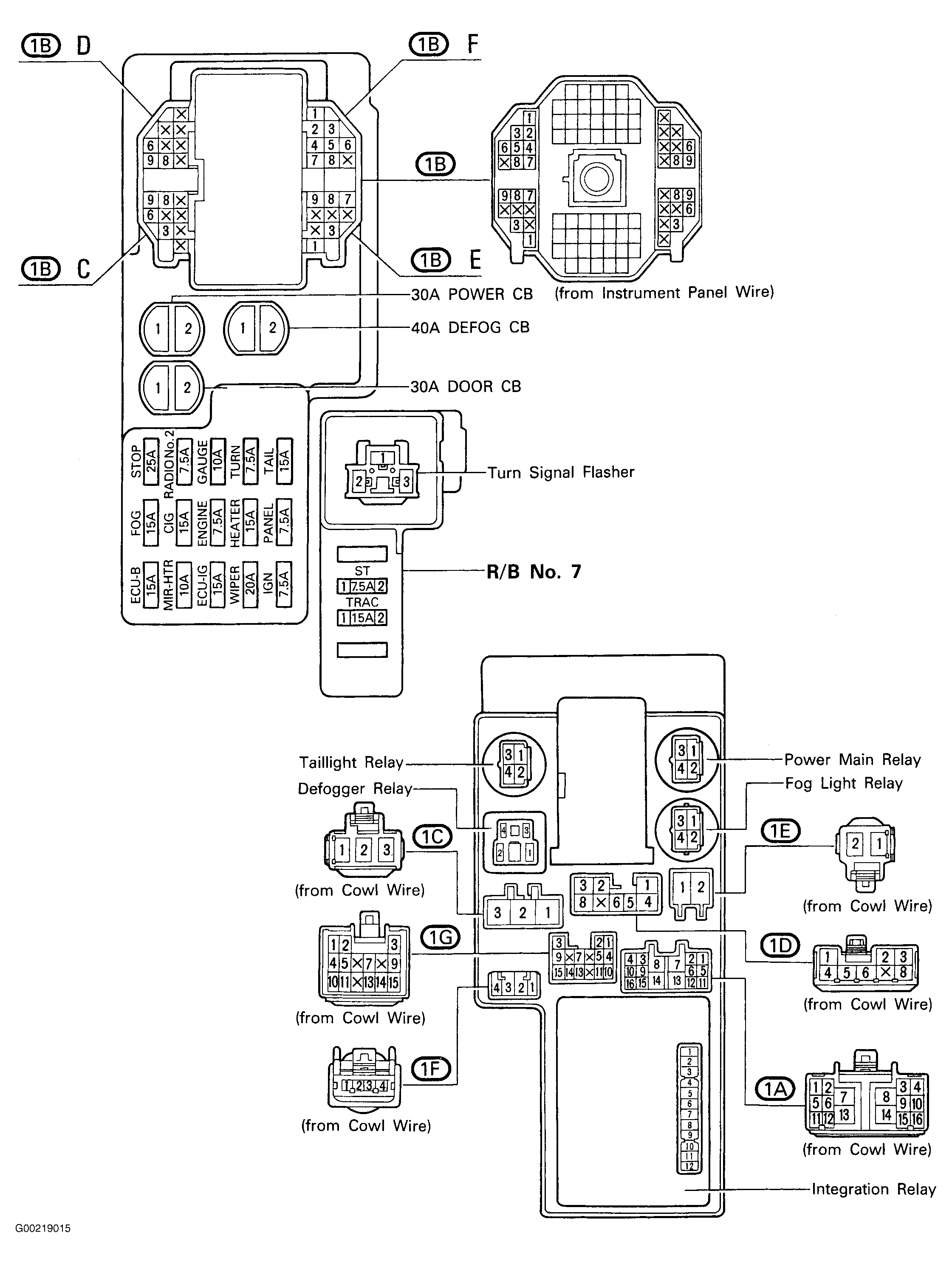

Fig 2: Identifying Junction Block No. 1 Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

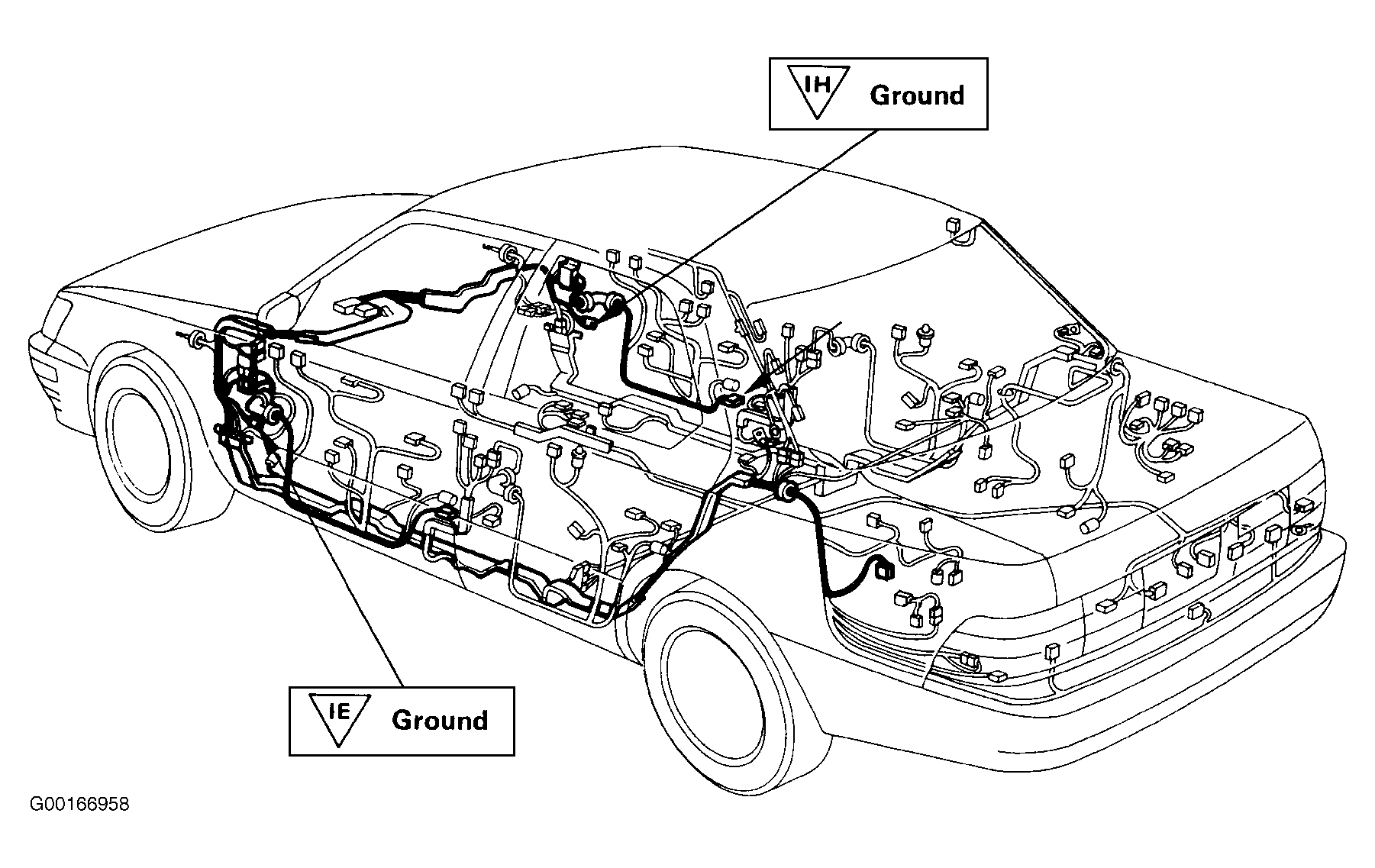

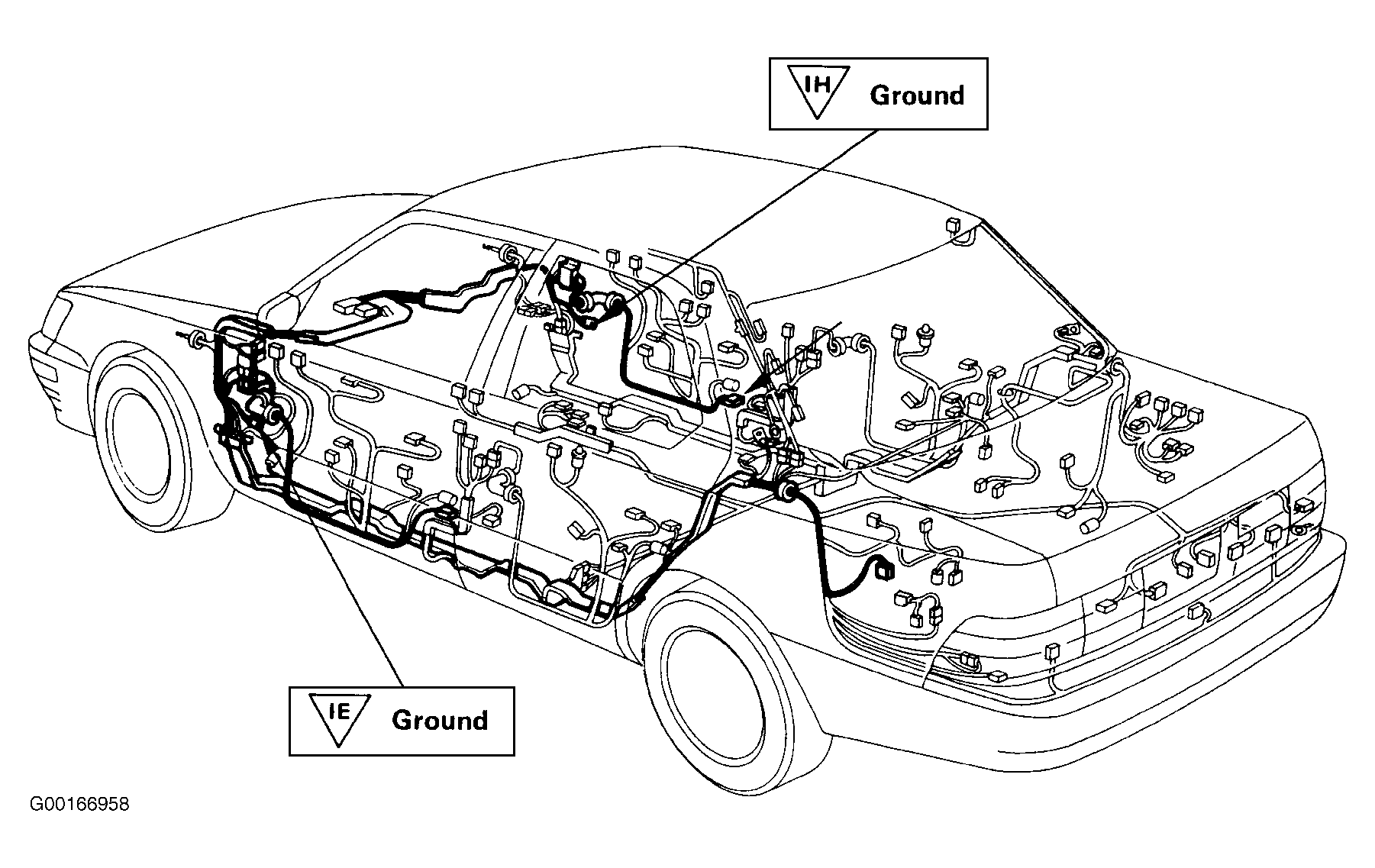

Fig 3: Locating Grounds IE & IH

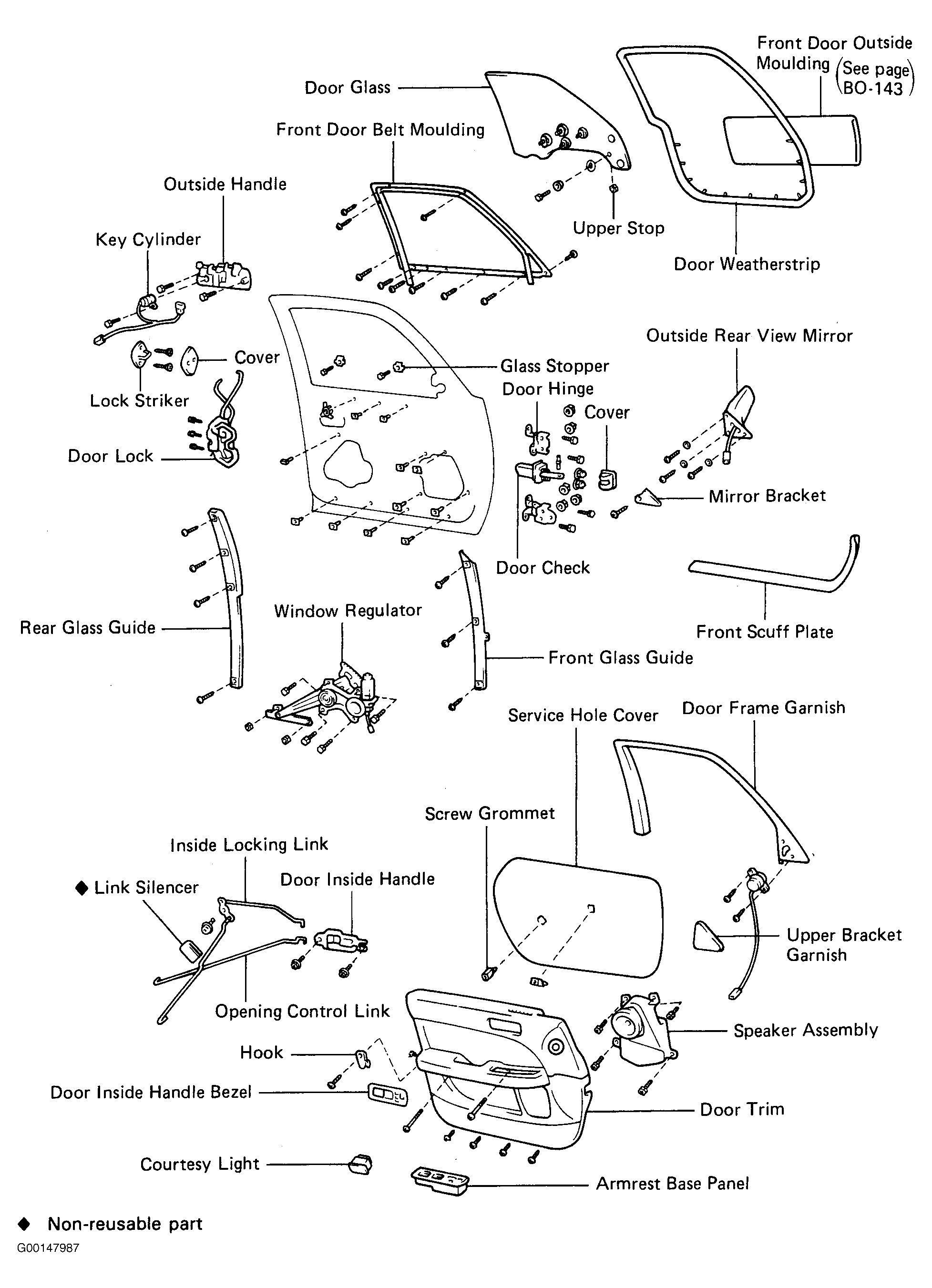

Fig 4: Exploded View Of Front Door Components

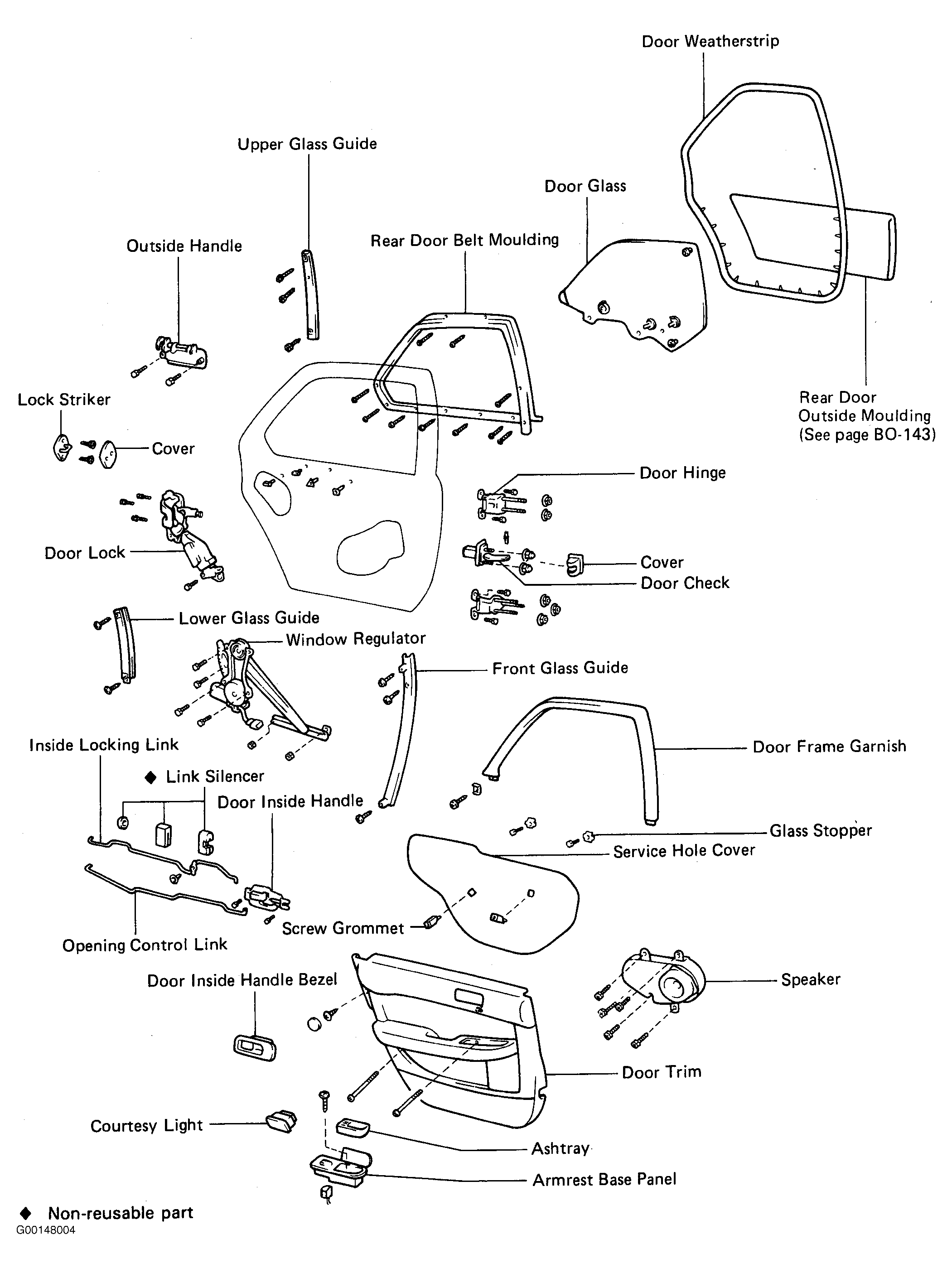

Fig 5: Exploded View Of Rear Door Components
