Relay Circuit

Remove the relay from the junction block and inspect the connector on junction block side. See Fig 1 and Fig 2 . If the circuit is not as specified, see WIRING DIAGRAMS  and inspect the circuits connected to other parts.

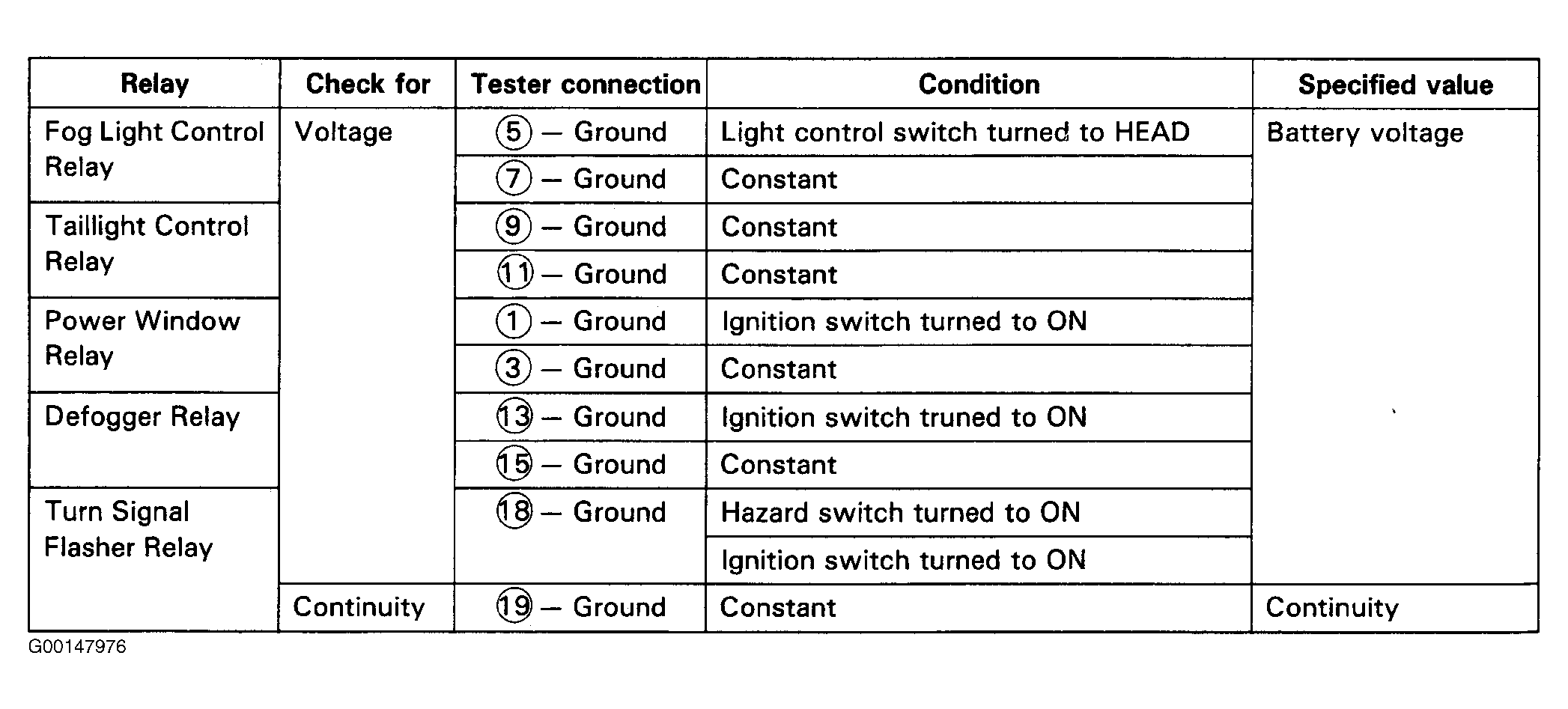

Fig 1: Inspecting Relay Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

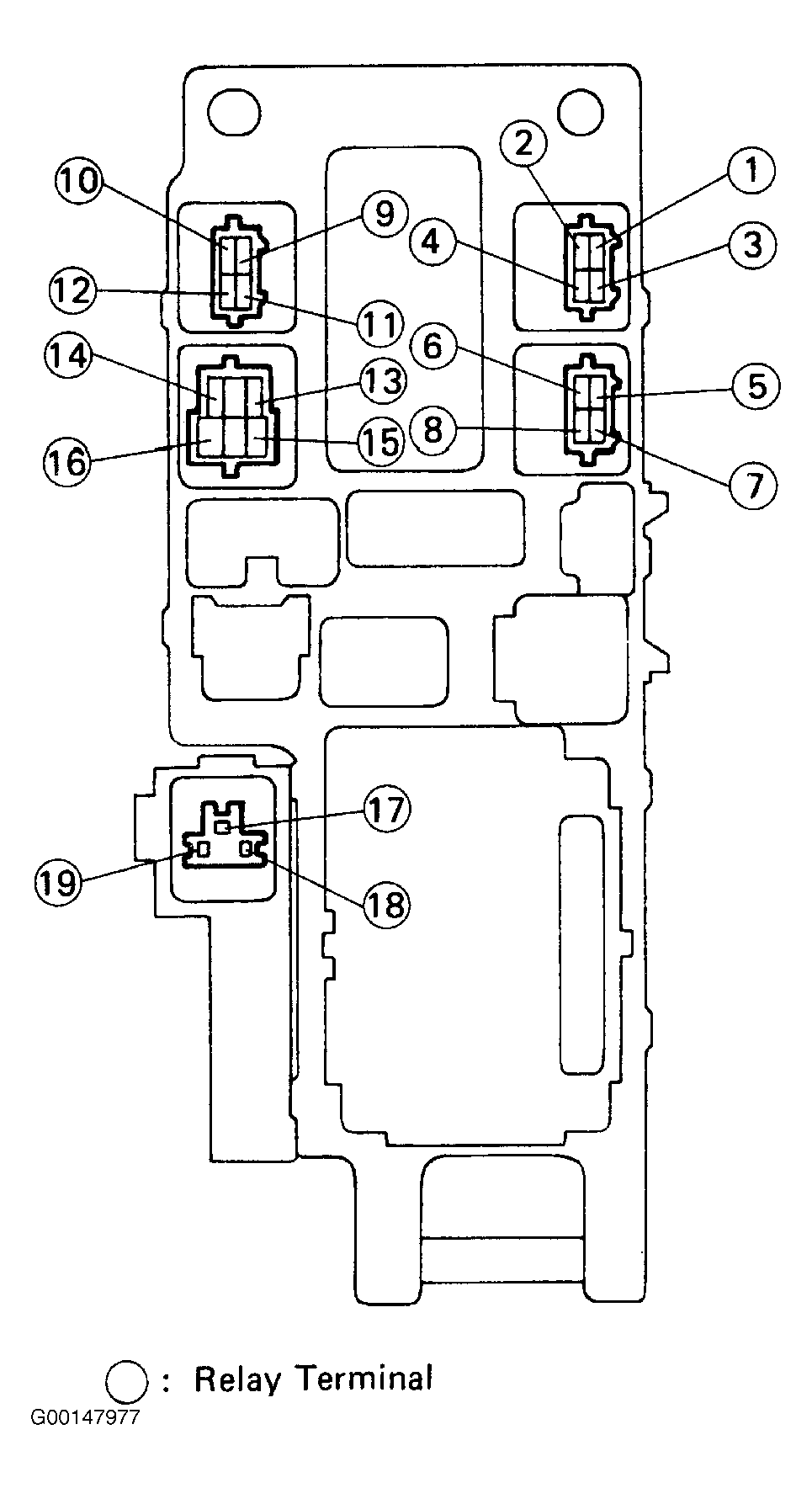

Fig 2: Inspecting Relay Block

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
