Power Window Master Switch: Continuity

Inspect the switch continuity between terminals. See Fig 1. If continuity is not as specified, replace the master switch. See POWER WINDOW MASTER SWITCH .

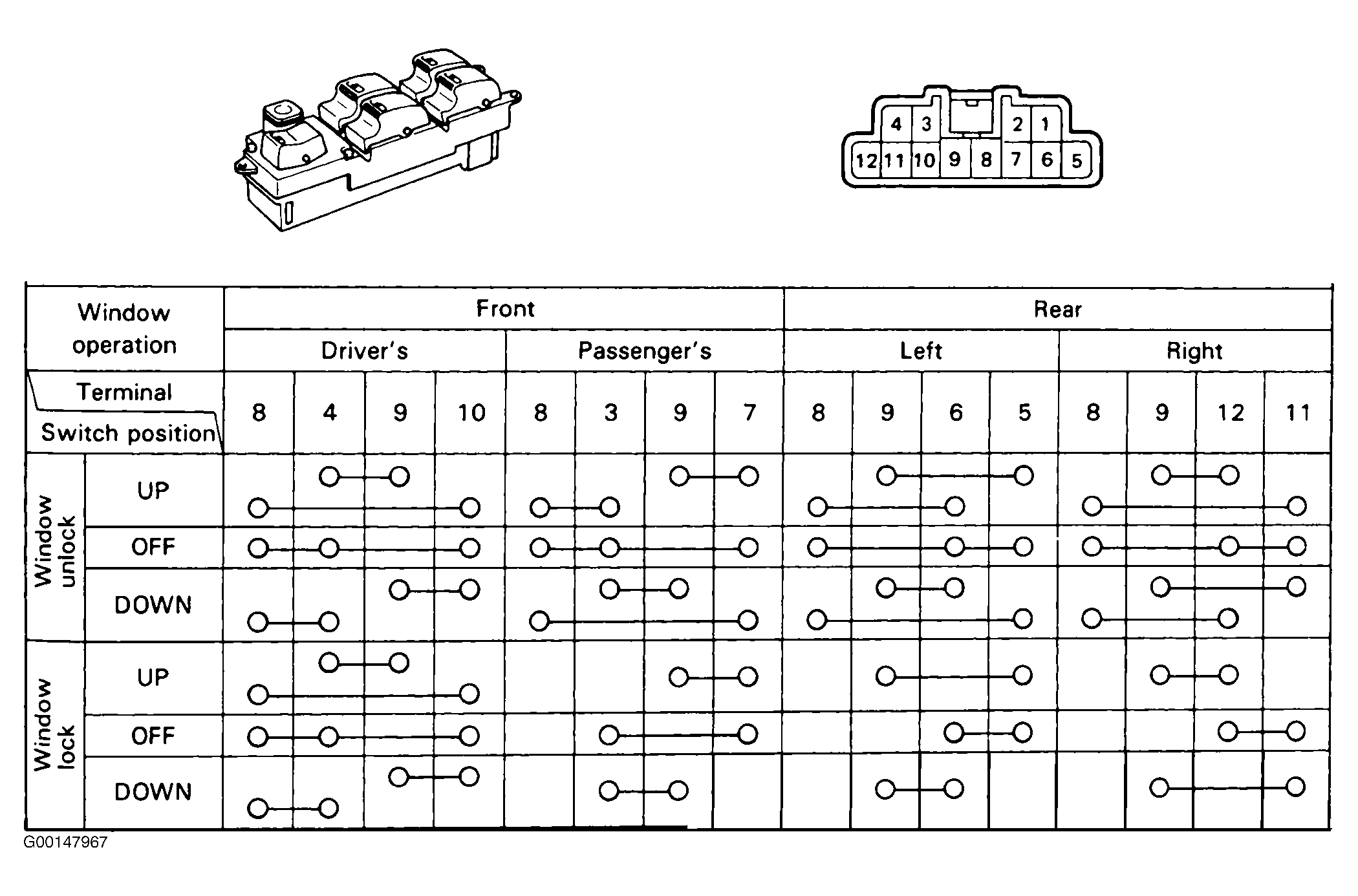

Fig 1: Testing Power Window Master Switch Continuity

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
