Airflow Meter Resistance Specifications (LS400)

AIRFLOW METER RESISTANCE SPECIFICATIONS (LS400)

Terminals	Ohms	°F (°C)
THA & E2	10,000-20,000	-4 (-20)
THA & E2	4000-7000	32 (0)
THA & E2	2000-3000	68 (20)
THA & E2	900-1300	104 (40)
THA & E2	400-700	140 (60)

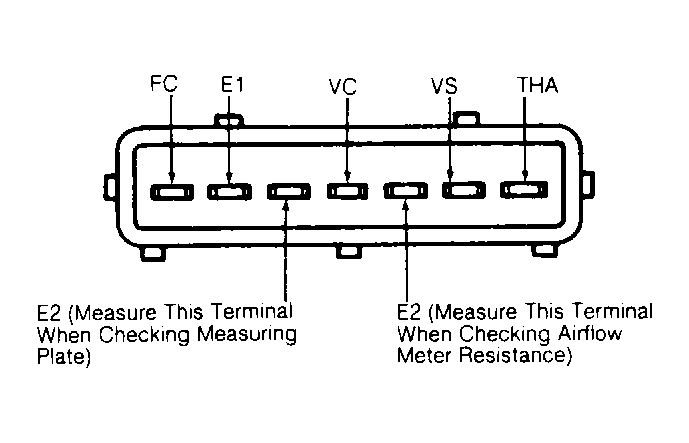

Fig 1: Airflow Meter Terminal Identification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
