A/C Compressor Circuit

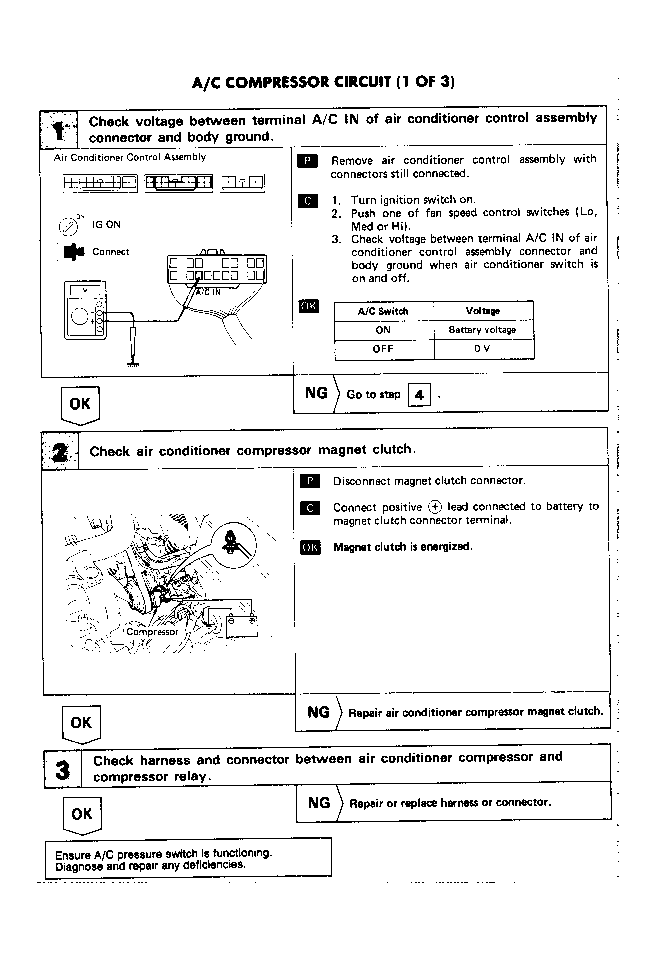

Fig 1: A/C Compressor Circuit Steps 1-3 (1 of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

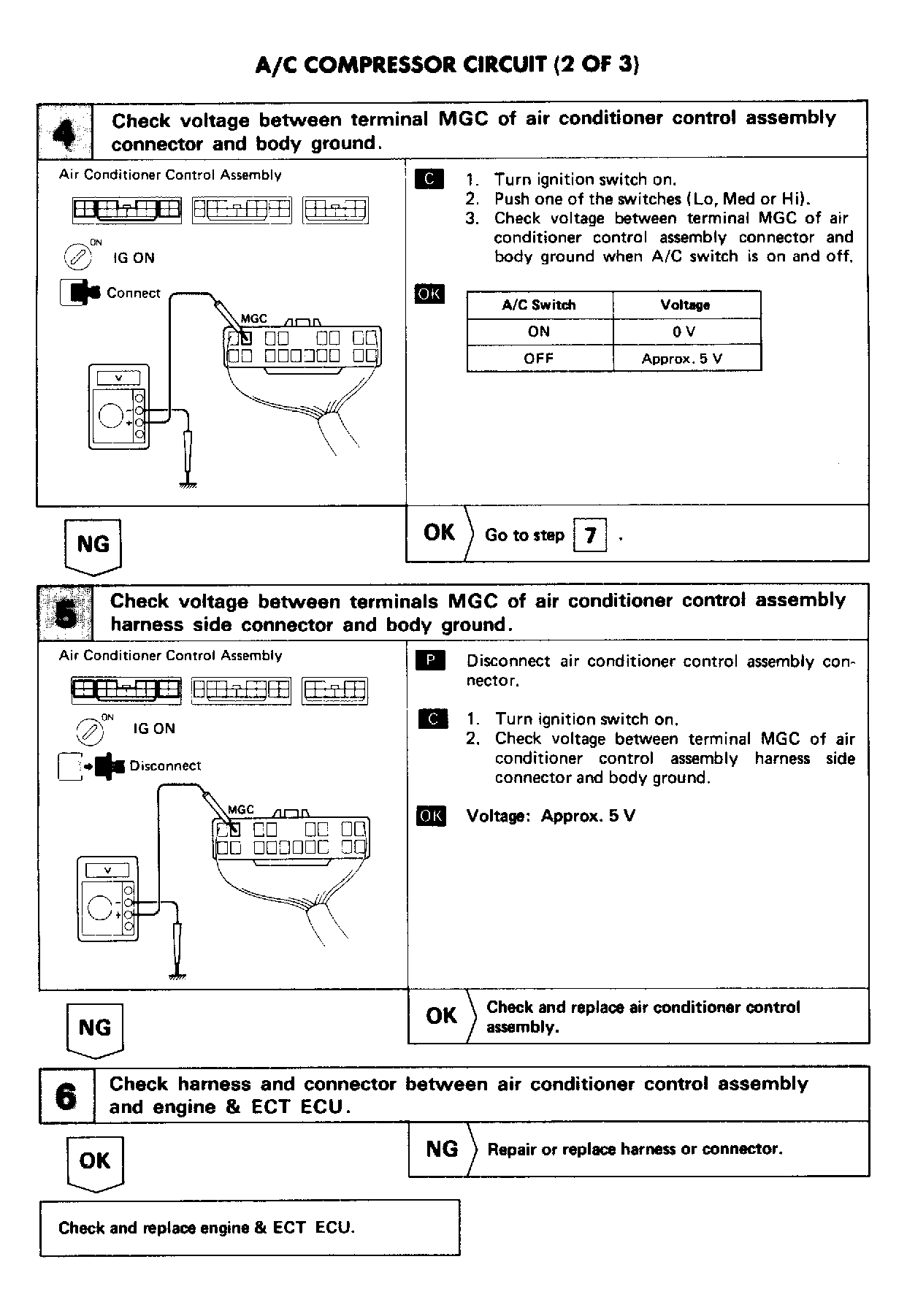

Fig 2: A/C Compressor Circuit Steps 4-6 (2 of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

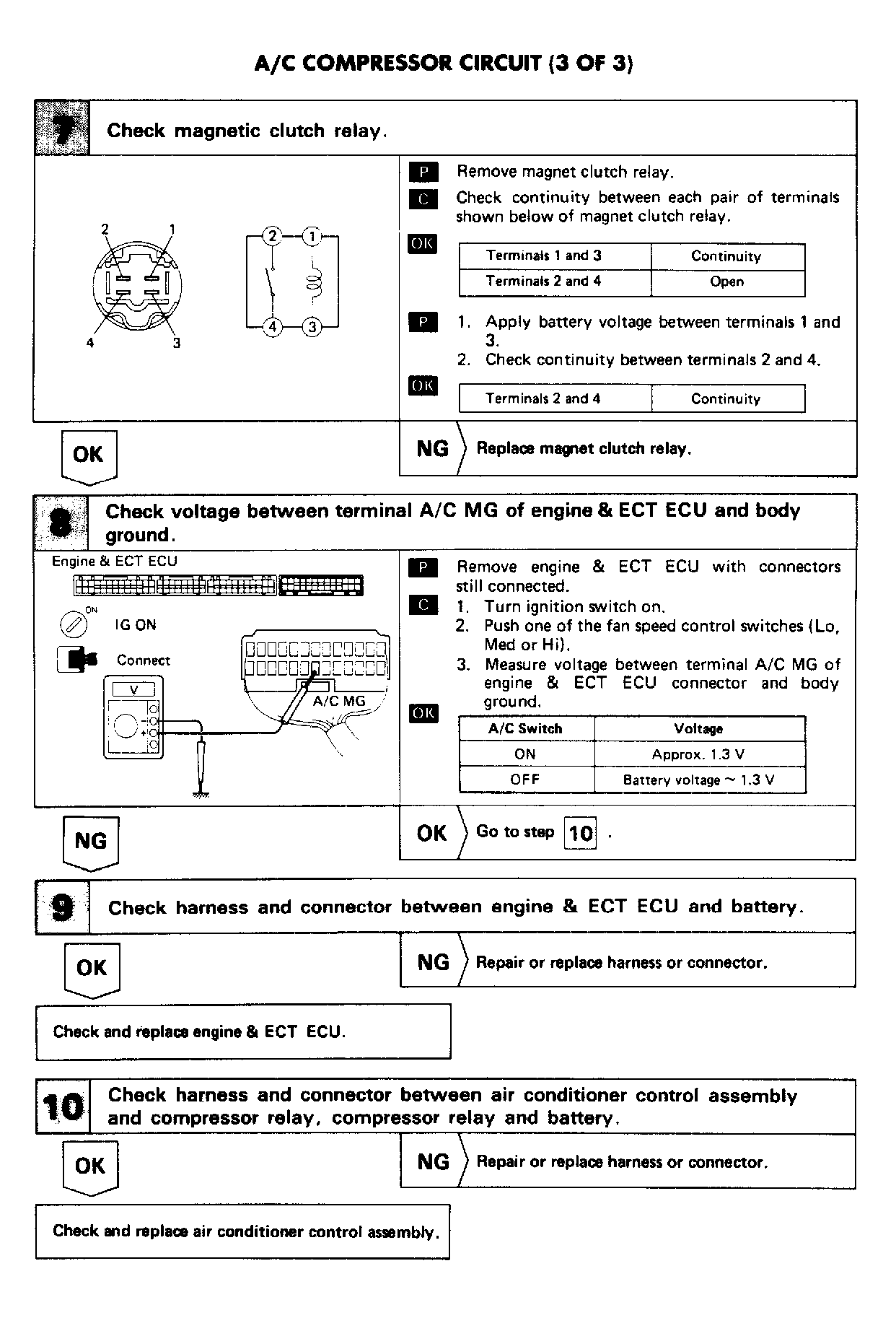

Fig 3: A/C Compressor Circuit Steps 7-10 (3 of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
