Code 71: EGR System Malfunction (CALIF)

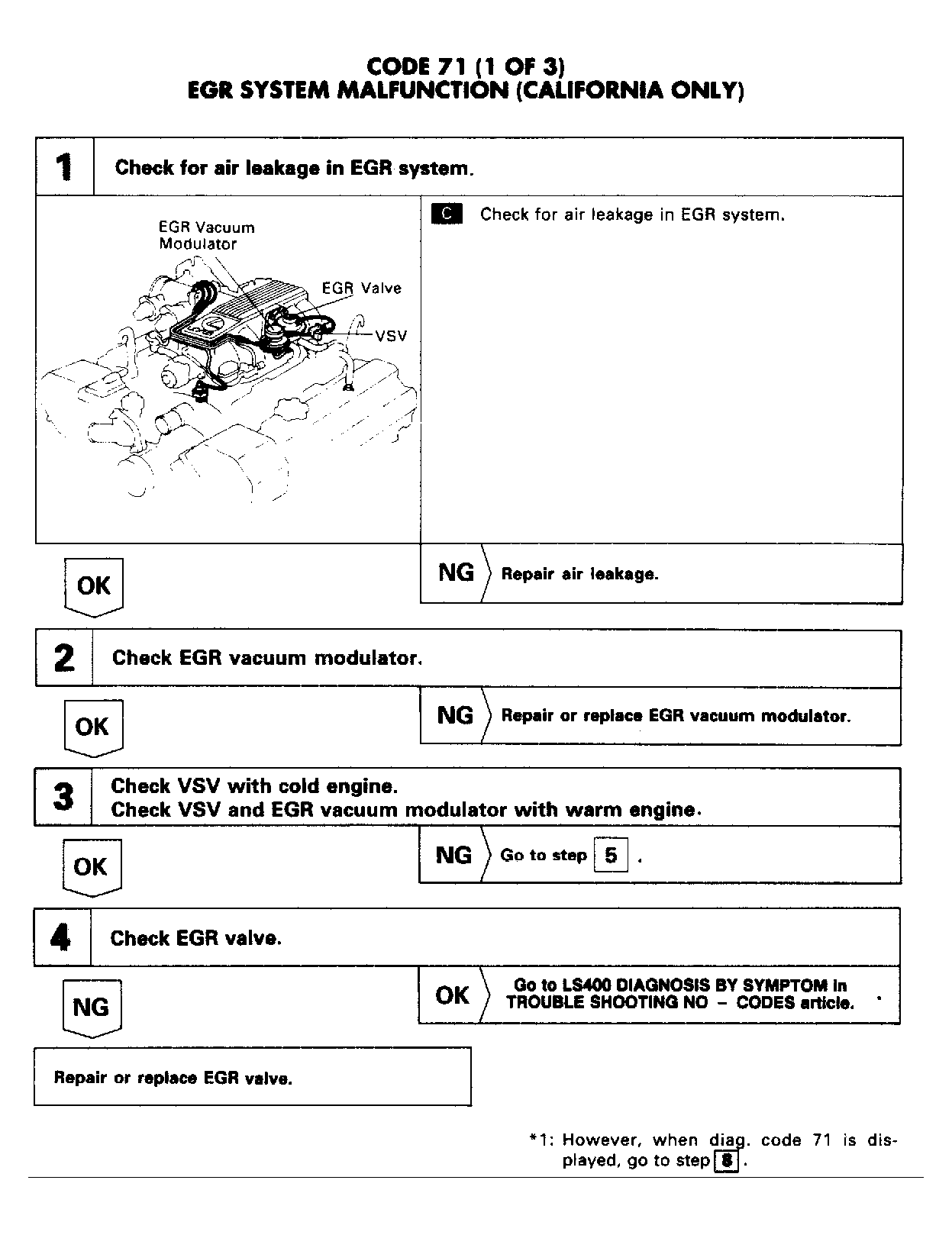

Fig 1: Code 71: EGR System Malfunction Steps 1-4 (1 of 3)
G90J18951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

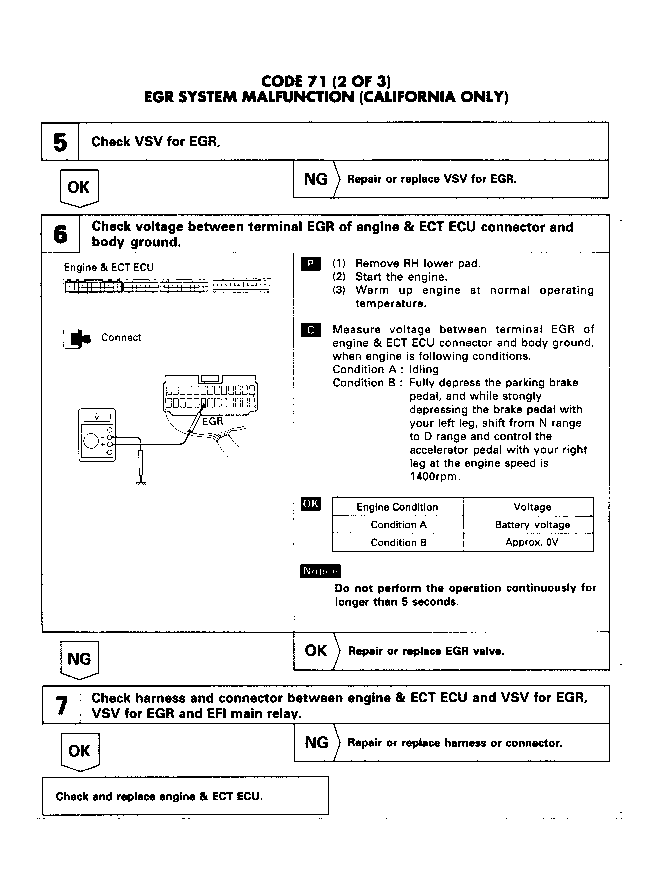

Fig 2: Code 71: EGR System Malfunction Steps 5-7 (2 of 3)
G90A18952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

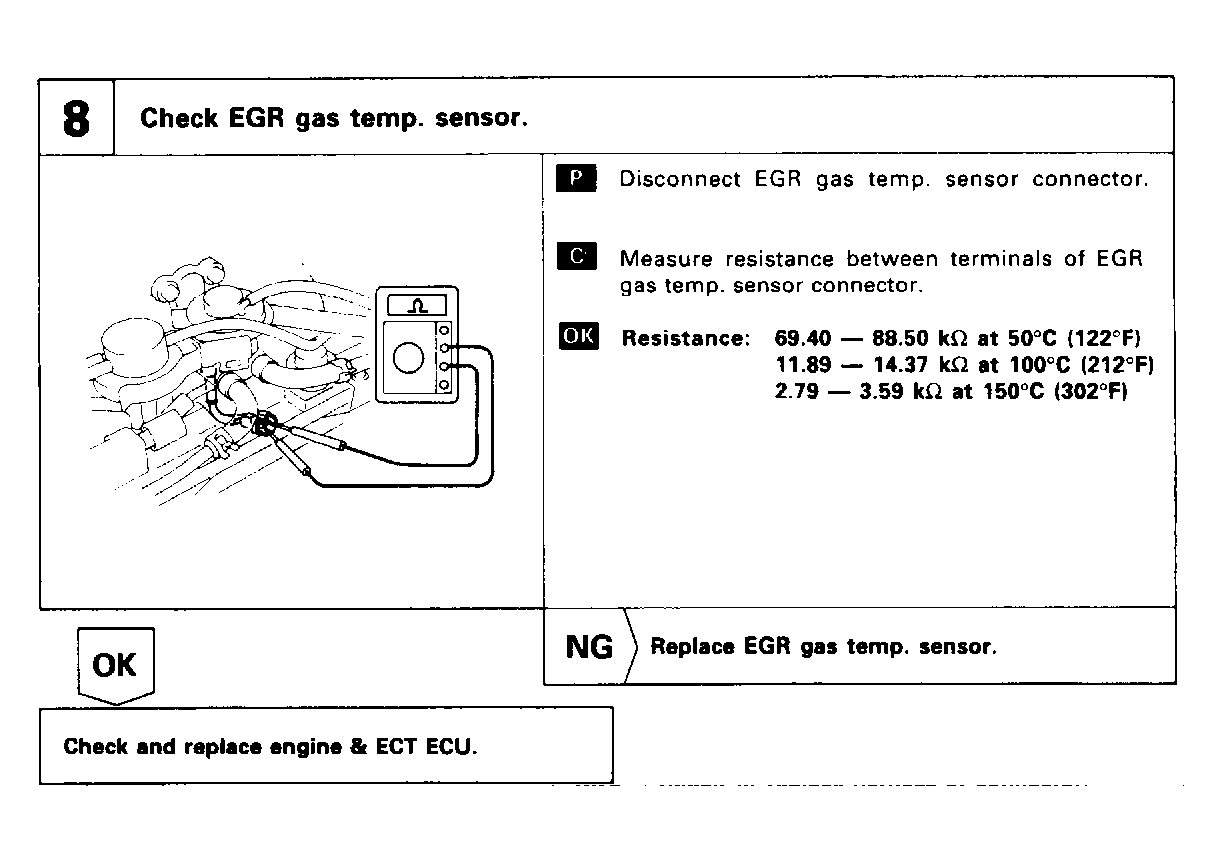

Fig 3: Code 71: EGR System Malfunction Step 8 (3 of 3)
G90B18953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
