Injector Circuit

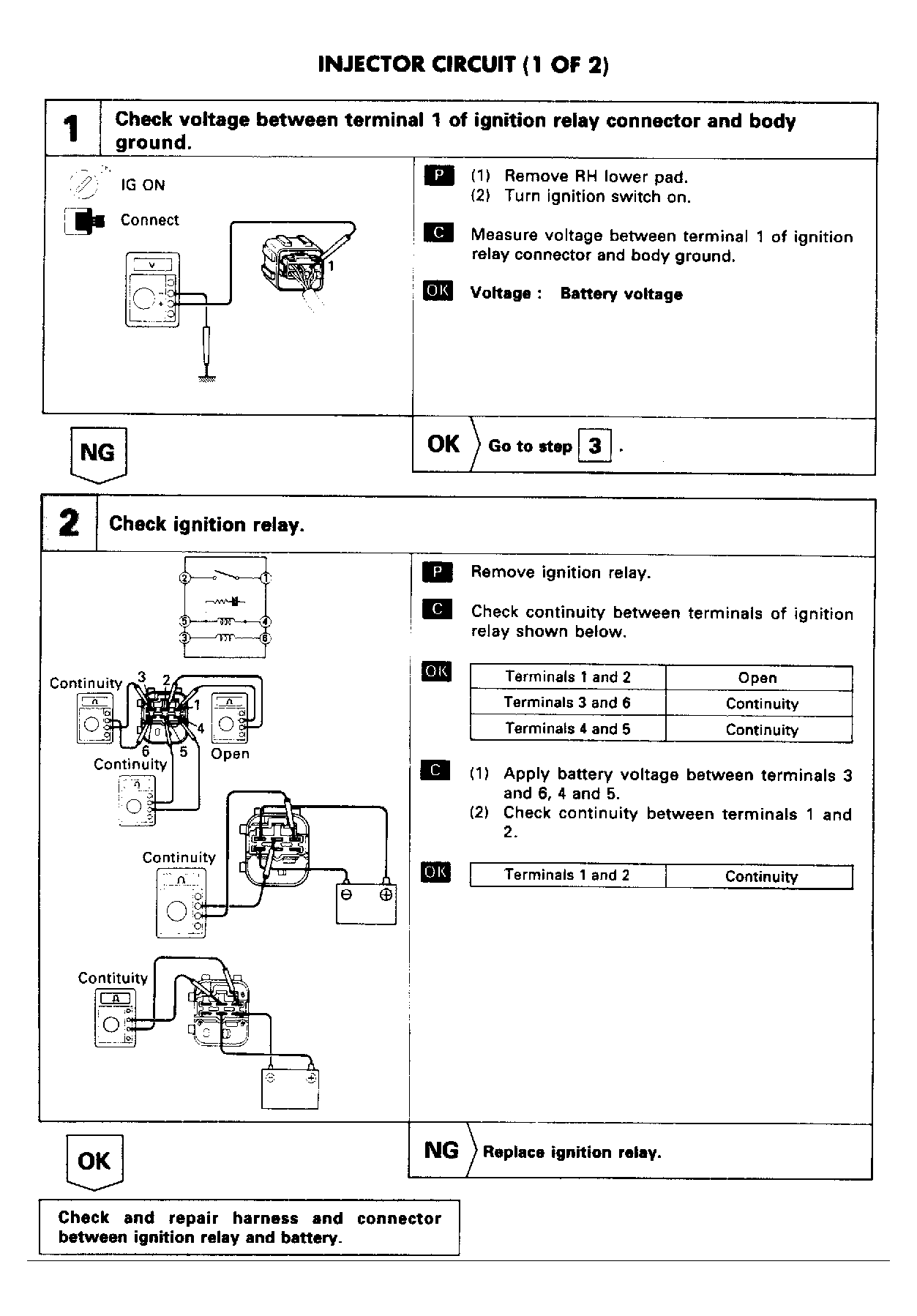

Fig 1: Injector Circuit Chart (1 of 2)
G90B18961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

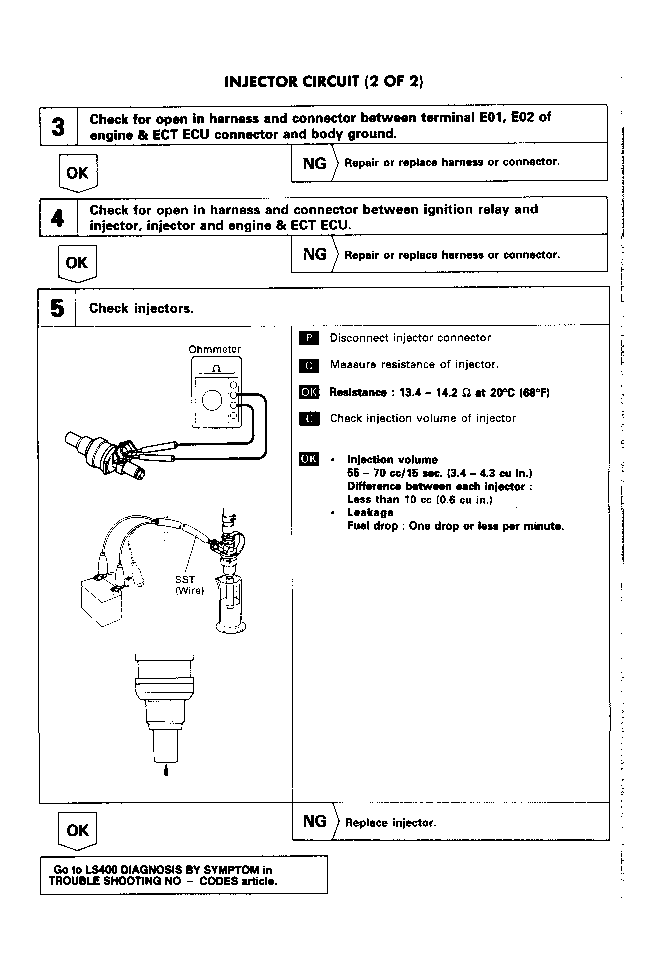

Fig 2: Injector Circuit Chart (2 of 2)
G90C18962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
