Neutral Start Switch Signal

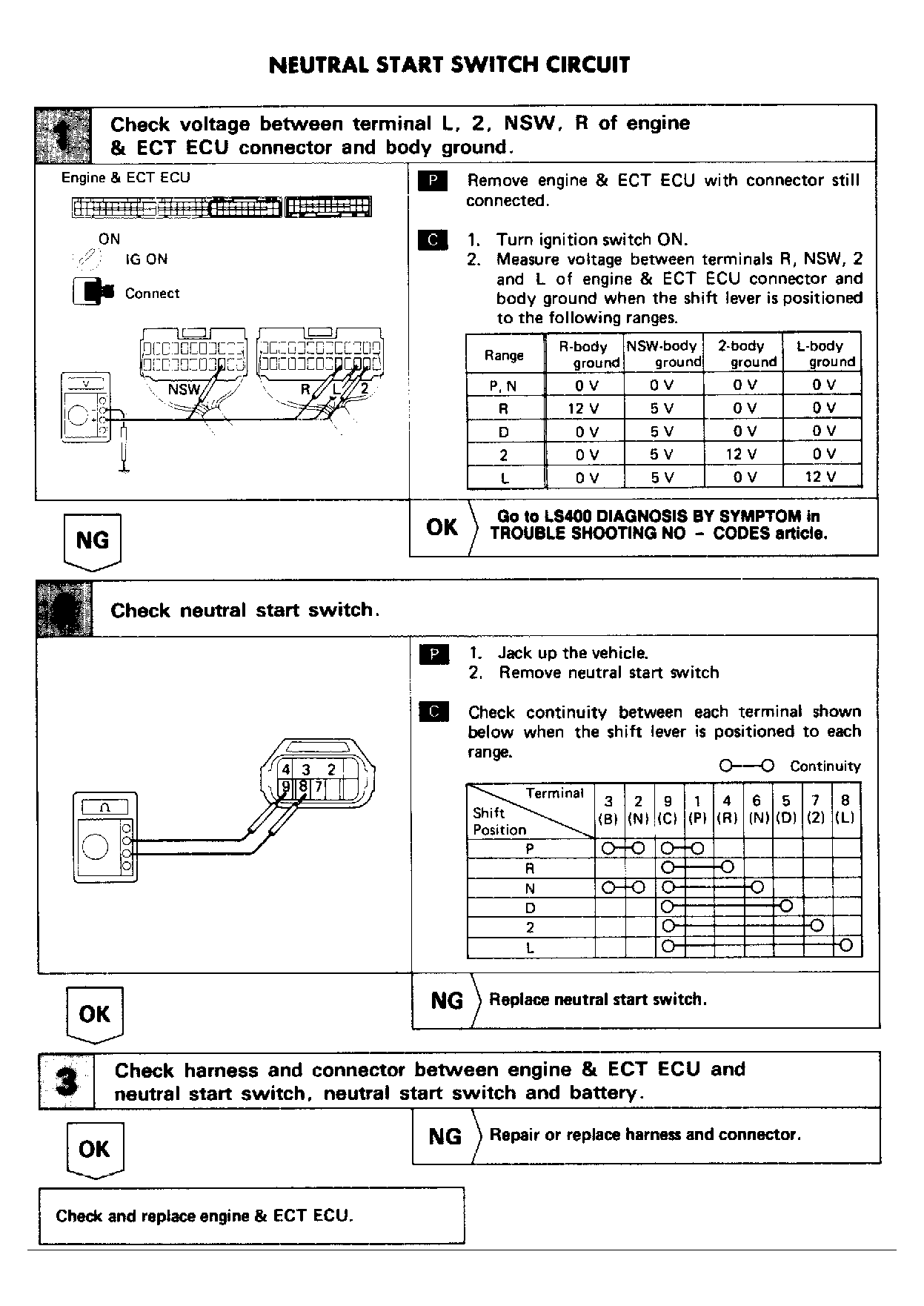

Fig 1: Neutral Start Switch Circuit Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
