Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| Electronic Control Unit (ECU) | ||
| A/C System | Behind center of dash. See Figure. | |

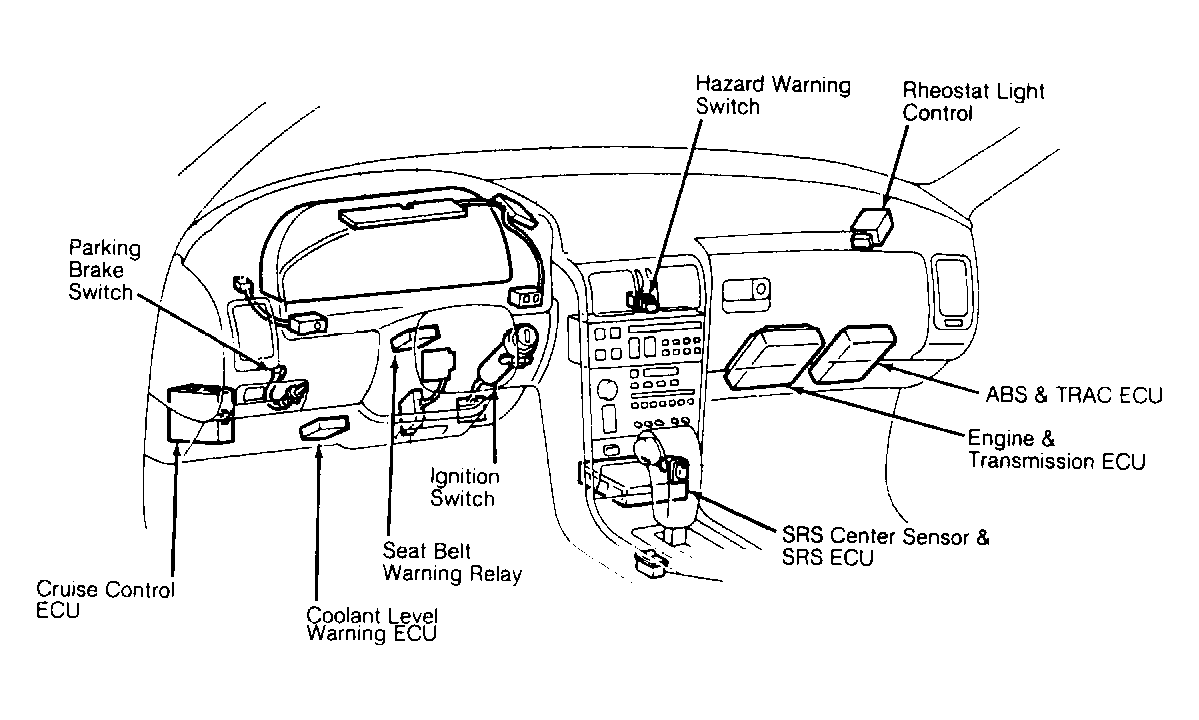

| Anti-Lock Brakes (ABS) | Behind right side of dash. See Figure & Figure . | |
| Anti-Theft | Behind left side of dash. See Figure. | |
| Coolant Level Warning | Behind left side of dash, left of steering column. See Figure. | |
| Cruise Control | Behind left side of dash. See Figure & Figure . | |
| Elec. Modulated Air Suspension | In right rear corner of luggage compartment. See Figure. | |
| Elec. Side Mirrors | Behind right side of dash. See Figure. | |
| Engine | Behind right side of dash. See Figure, Figure & Figure . | |
| Power Seat | Under driver's seat. See Figure. | |
| Progressive Power Steering | Behind center of dash. See Figure. | |
| SRS System | Behind center console. See Figure & Figure . | |
| Shift Lock (A/T) | On center console, behind shift lever. See Figure. | |
| TRAC System | Behind right side of dash, integral of ABS ECU. See Figure & Figure . | |
| Tilt & Telescopic Steering Column | Behind left side of dash, above steering column. See Figure. | |
| Transmission | Behind right side of dash, integrated with engine ECU. See Figure, Figure & Figure . | |
| Wireless Door Lock | On left side of luggage compartment. | |
