Component Location

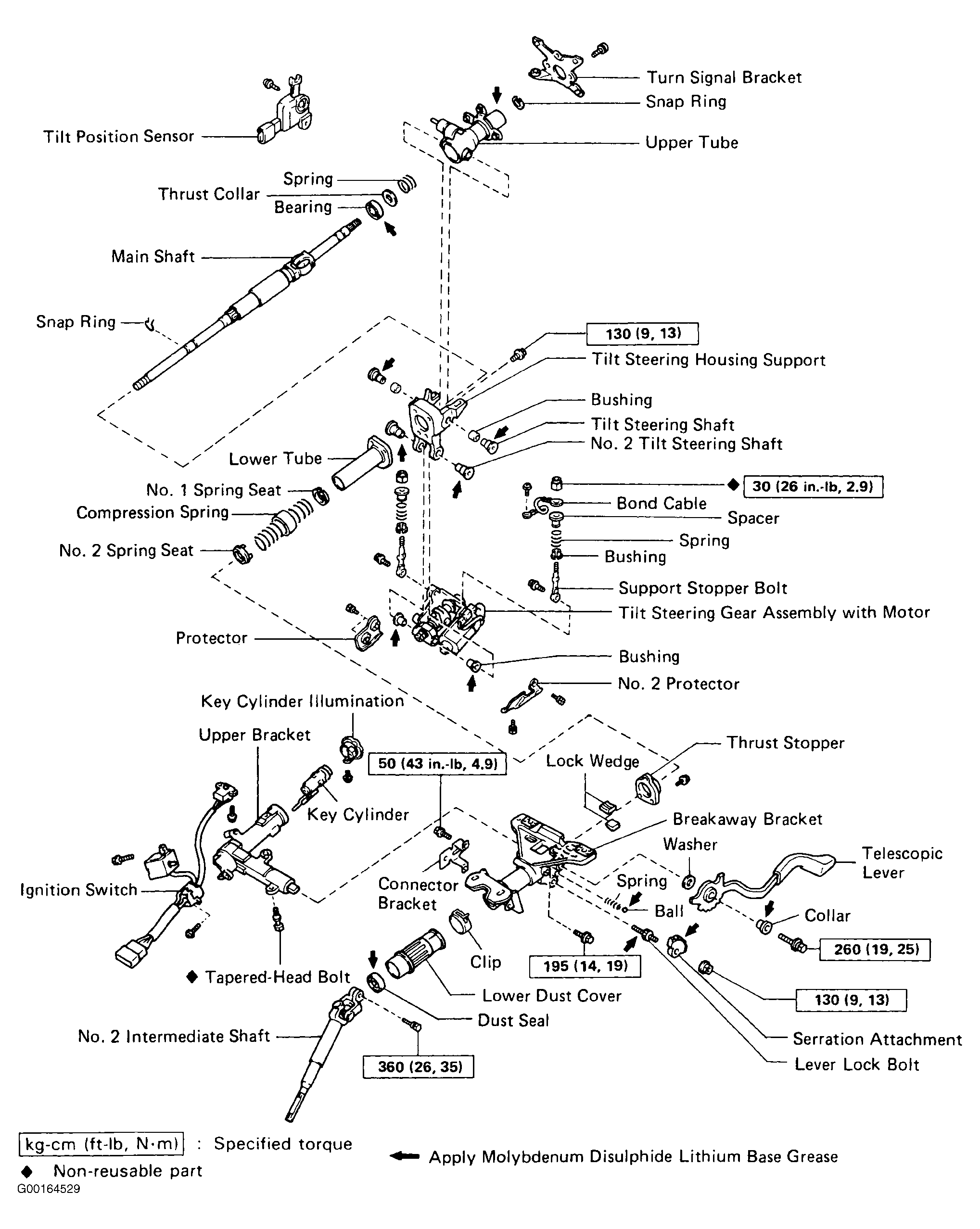

Fig 1: Exploded View Of Manual Telescopic Steering Column
G00164529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

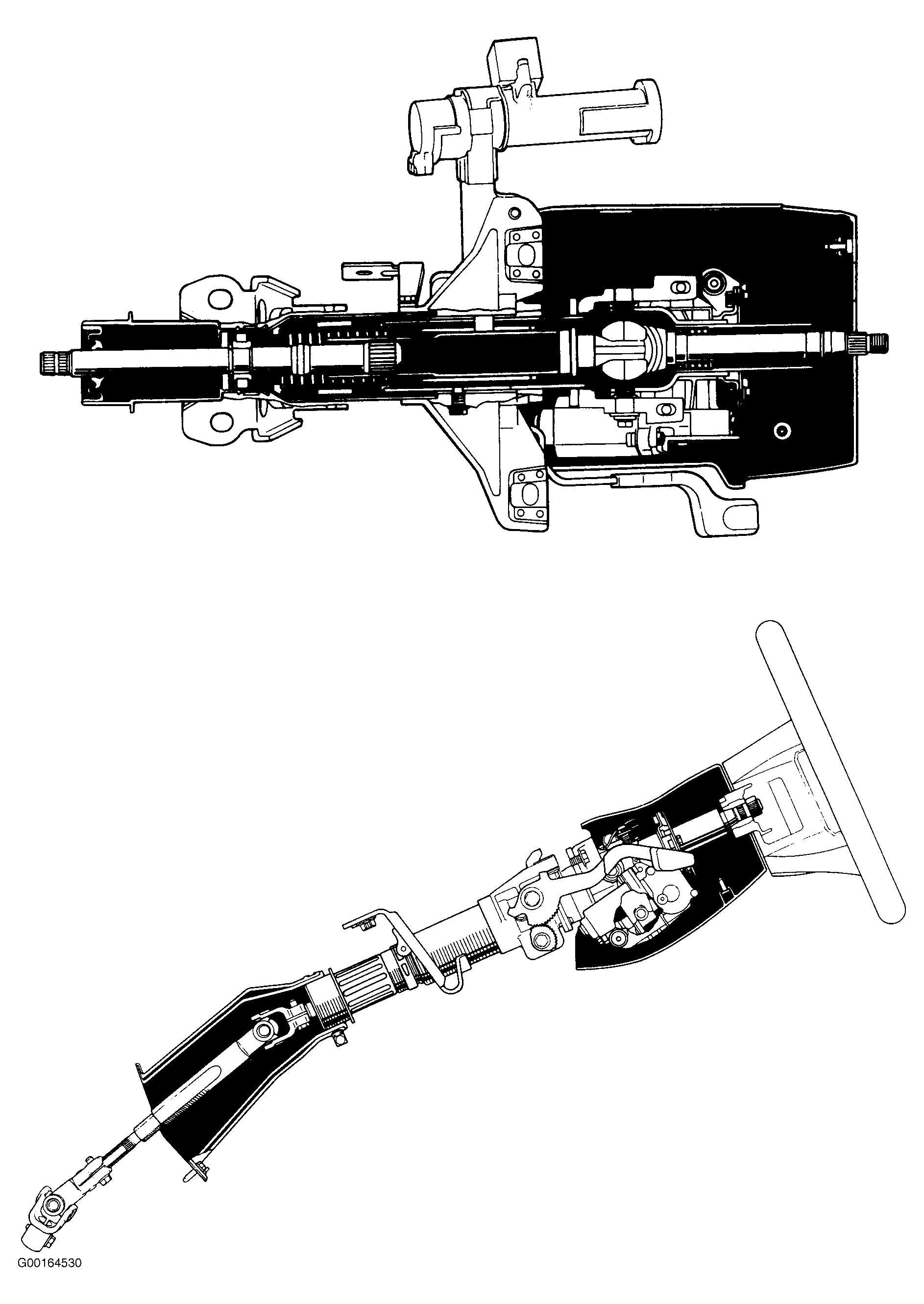

Fig 2: Sectional View Of Manual Telescopic Steering Column
G00164530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

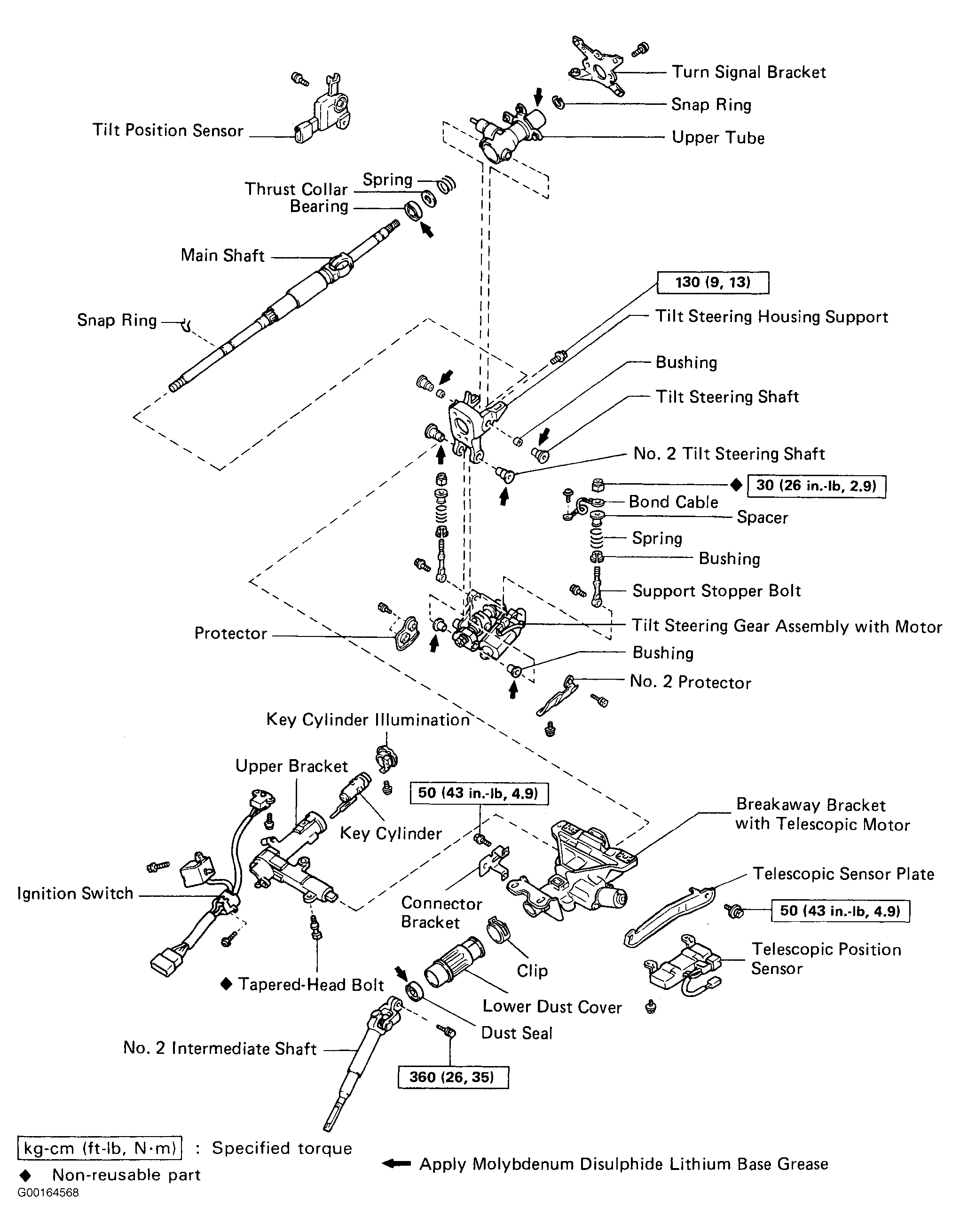

Fig 3: Exploded View Of Power Telescopic Steering Column
G00164568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

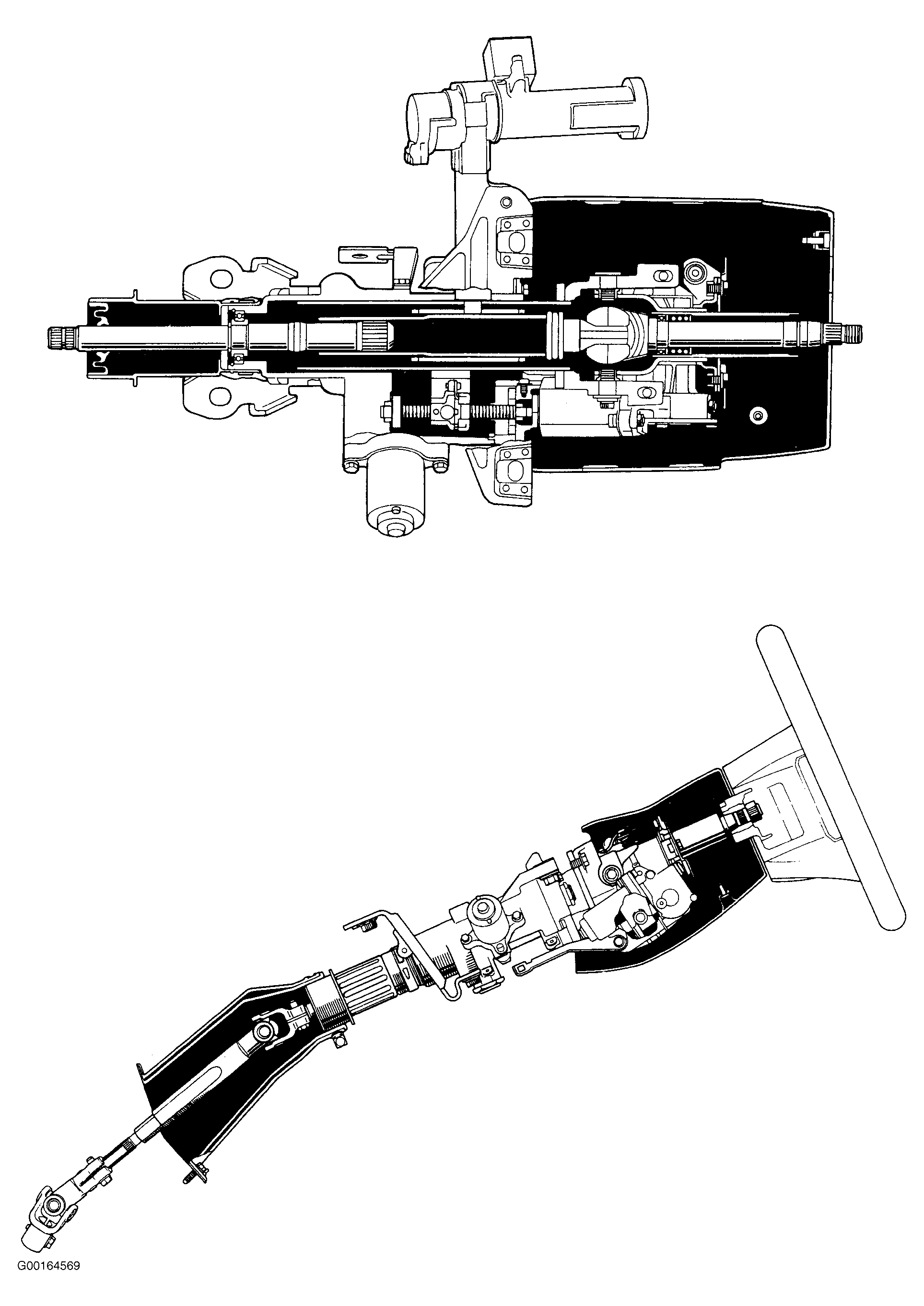

Fig 4: Sectional View Of Power Telescopic Steering Column
G00164569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
