Code 12: Rpm Signal

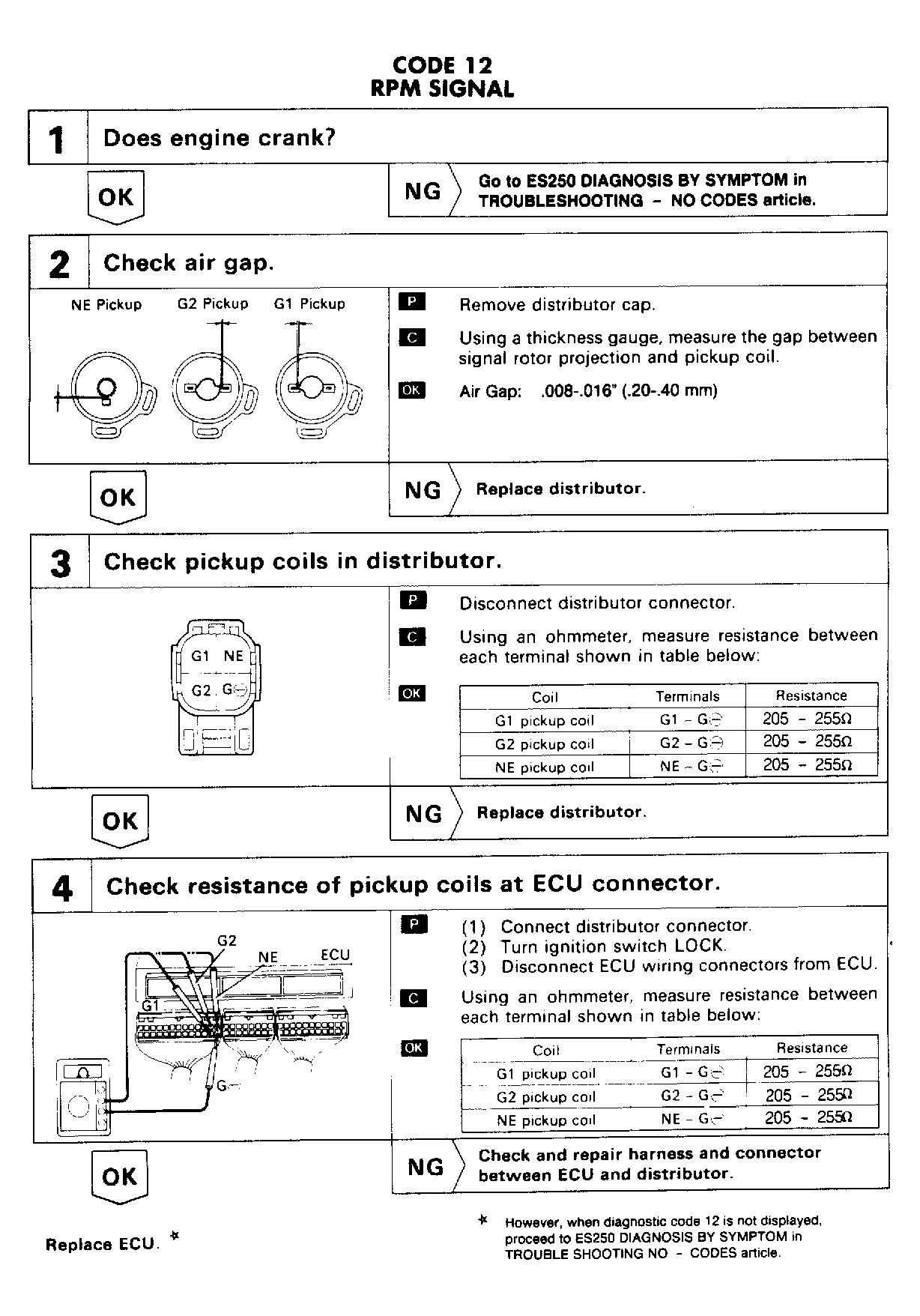

Fig 1: Code 12: RPM Signal Test
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
