Code 16: ECT Control Signal

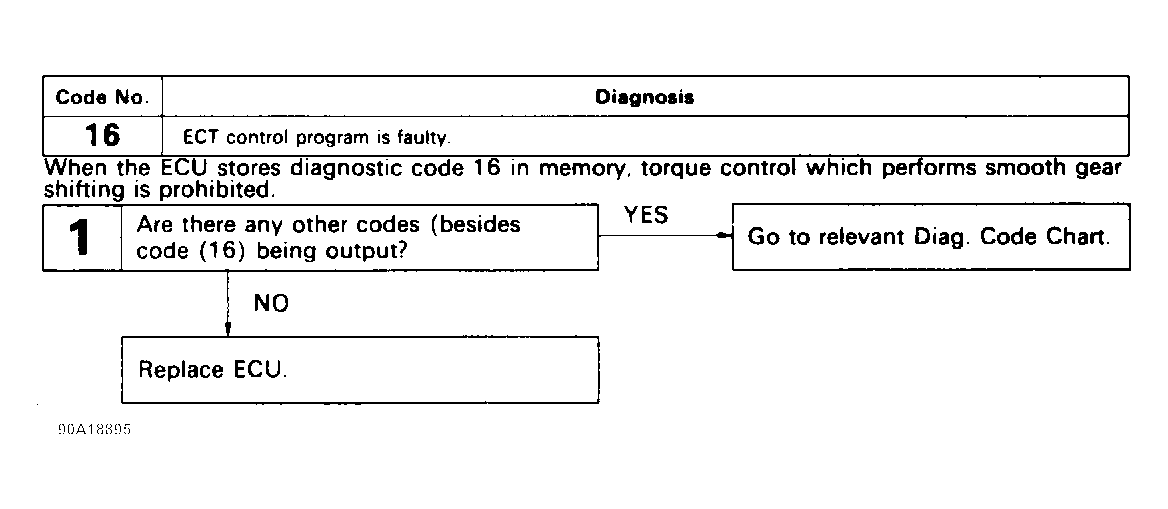

Fig 1: Code 16: ECT Control Signal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
