Code 27: Sub-O2 Sensor Signal (CALIF)

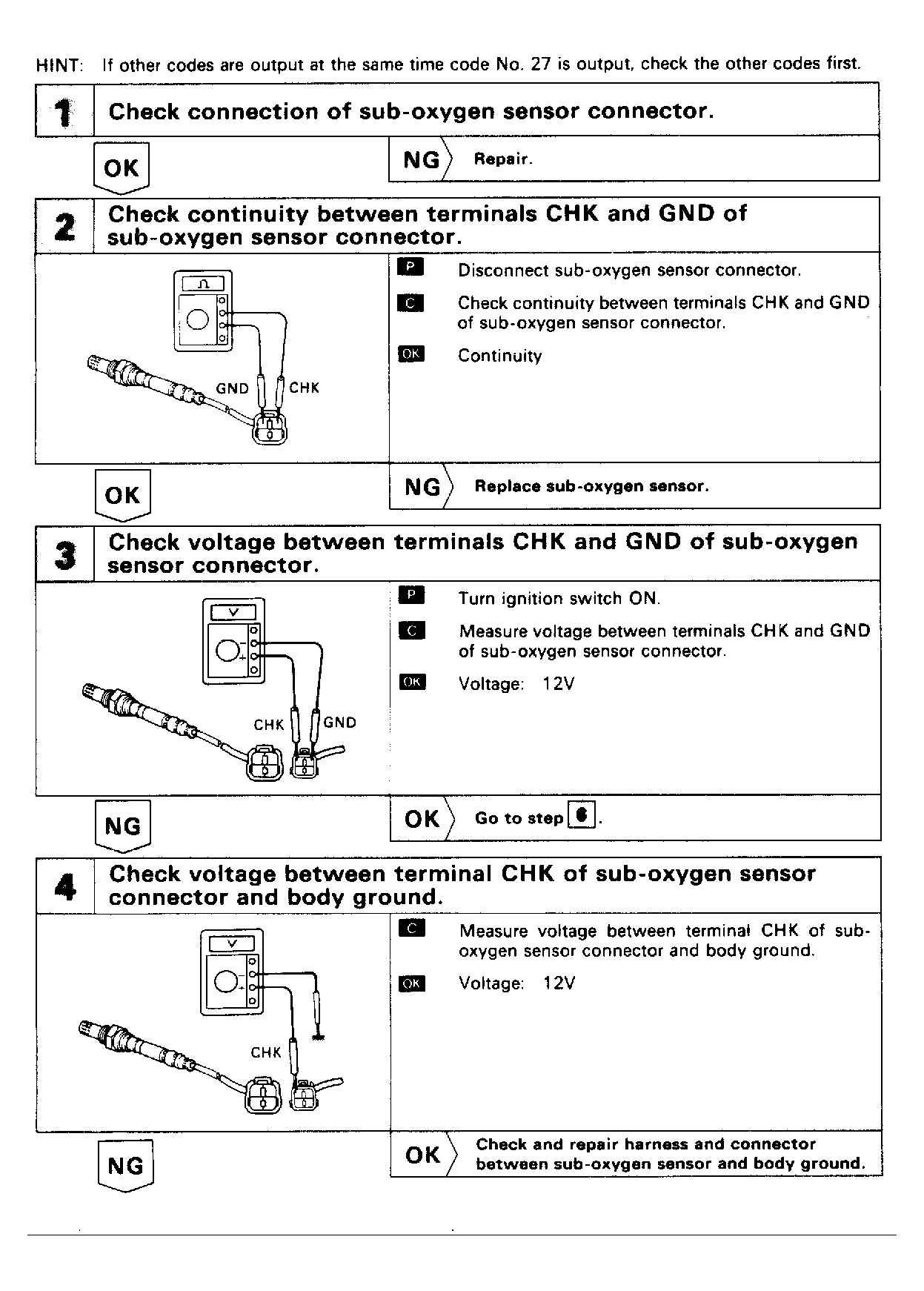

Fig 1: Codes 27: Sub-O2 Sensor Signal (Calif, 1 of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

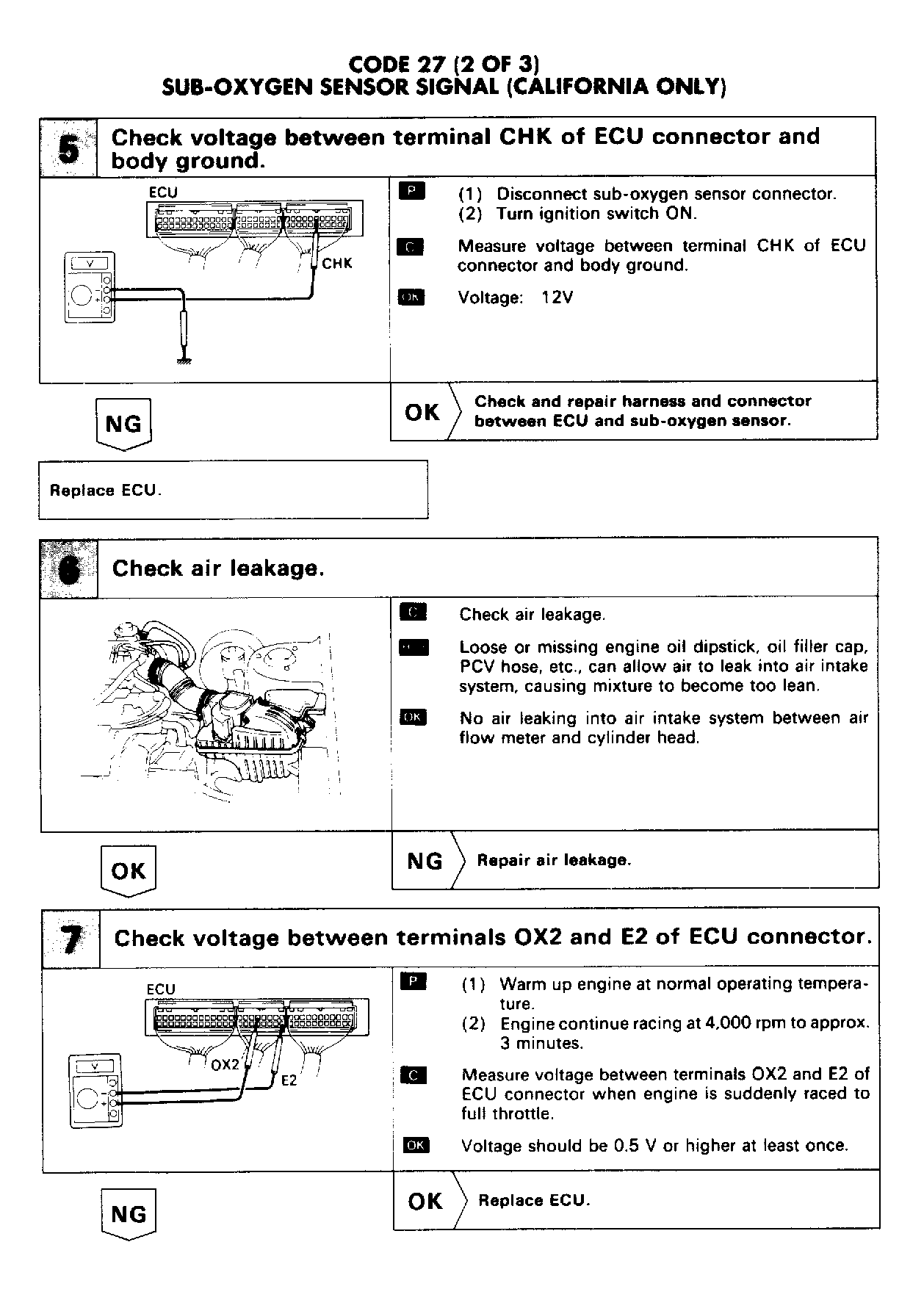

Fig 2: Codes 27: Sub-O2 Sensor Signal (Calif, 2 of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

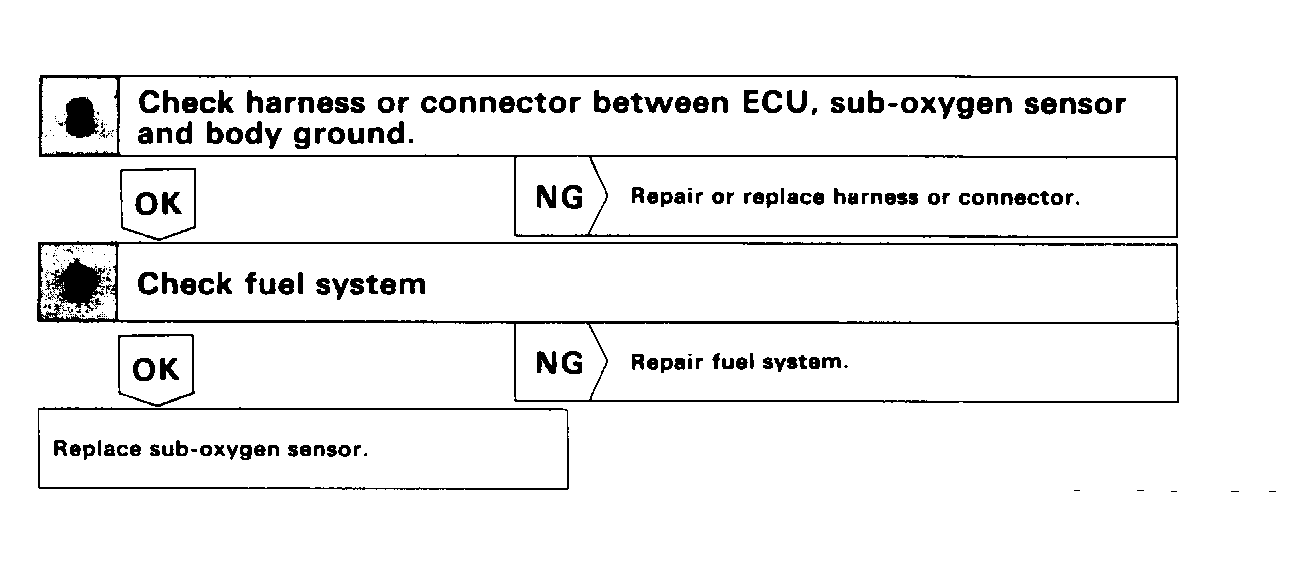

Fig 3: Codes 27: Sub-O2 Sensor Signal (Calif, 3 of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
