Code 12: Engine Speed Sensor

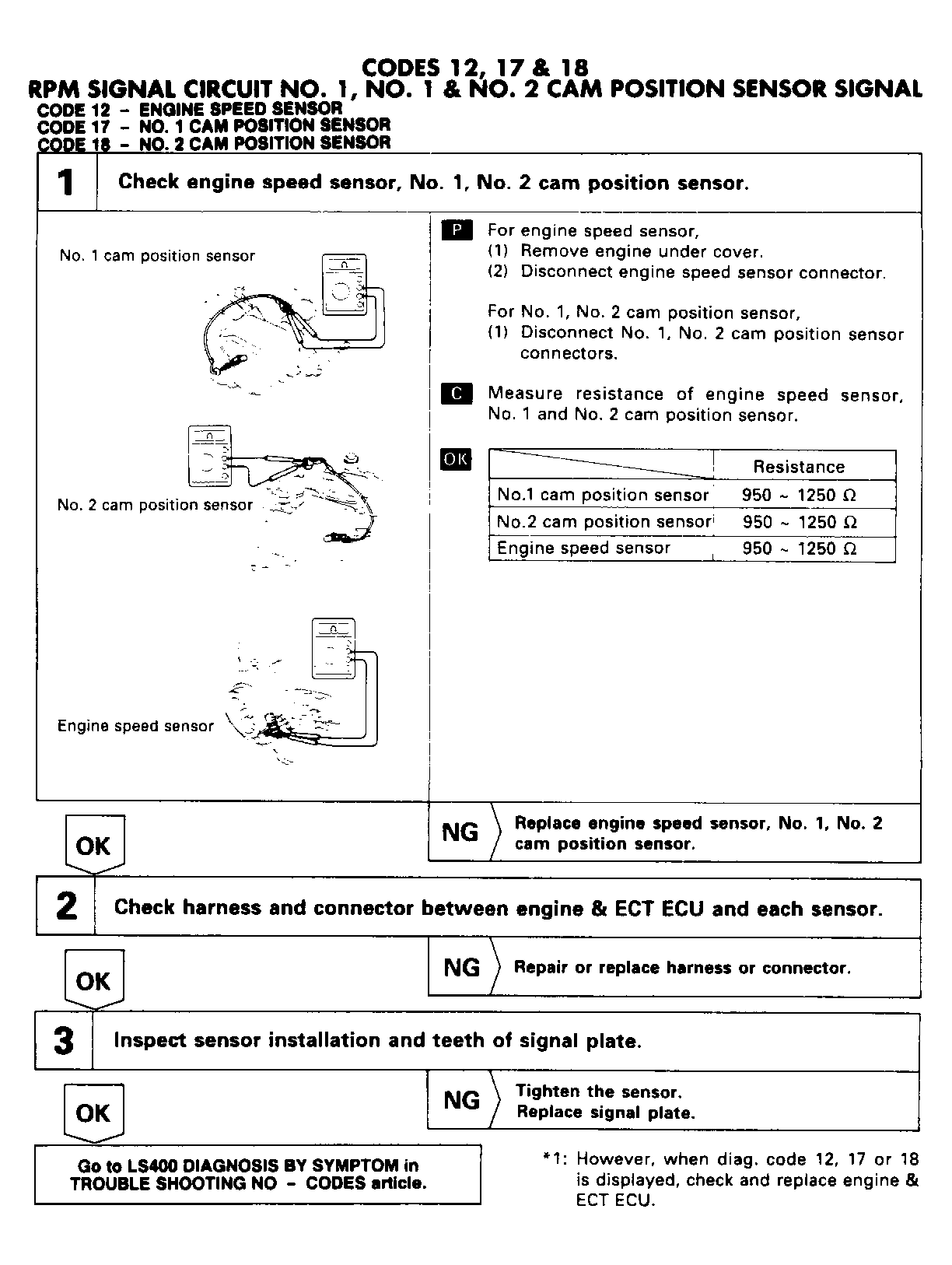

Fig 1: Code 12: Engine Speed Sensor Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
