Code 16: Elect Controlled Trans (ECT) Control Signal

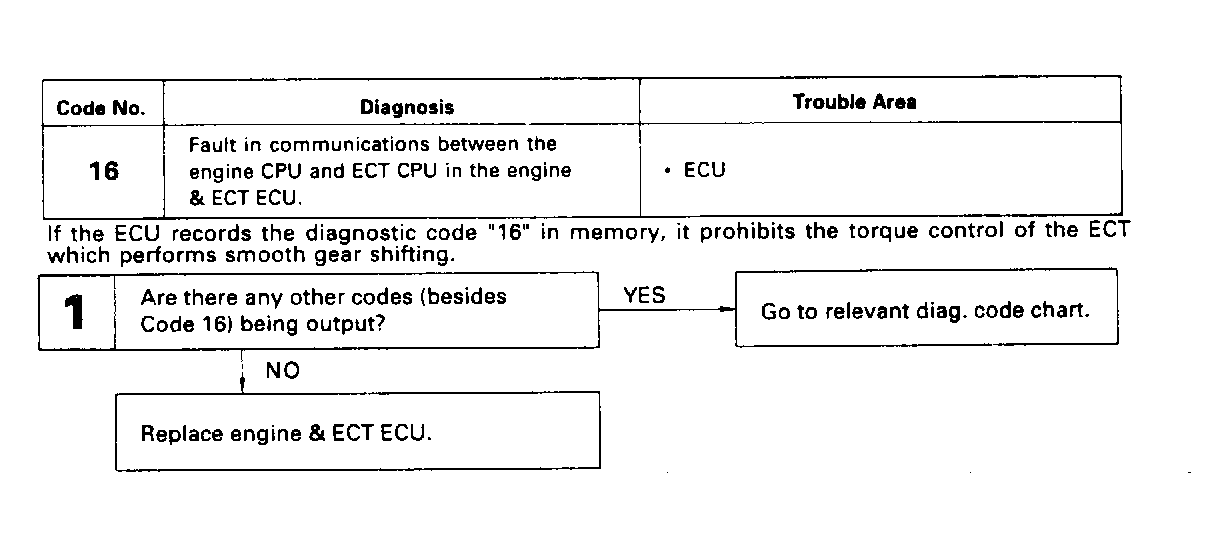

Fig 1: Code 16: ECT Control Signal Chart
G90F18932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
