Code 21 & 28: Left Or Right Bank Main O2 Sensor Signal

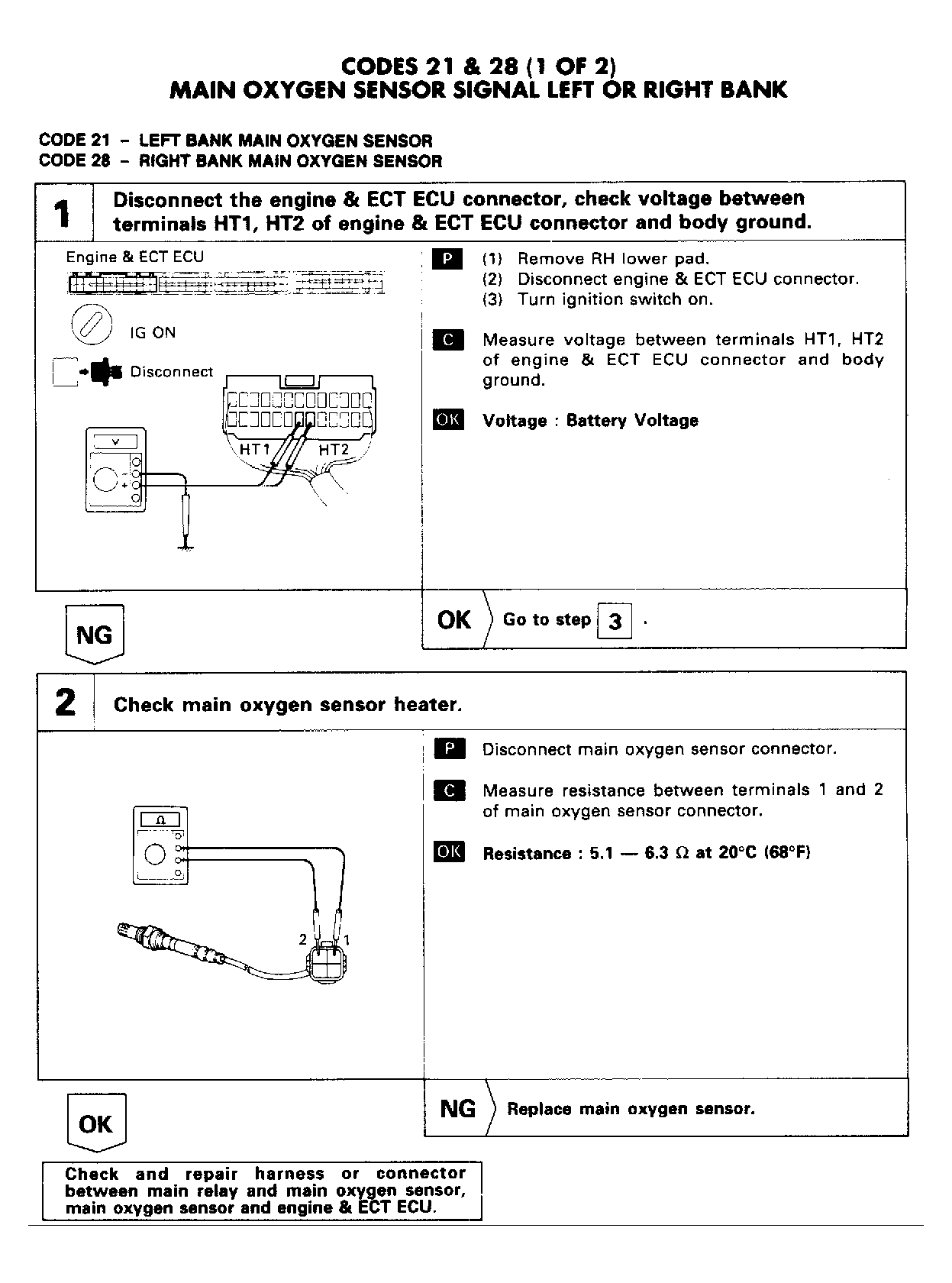

Fig 1: Codes 21 & 28: Main O2 Sensor Signal Left or Right Bank (1 of 2)
G90G18933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

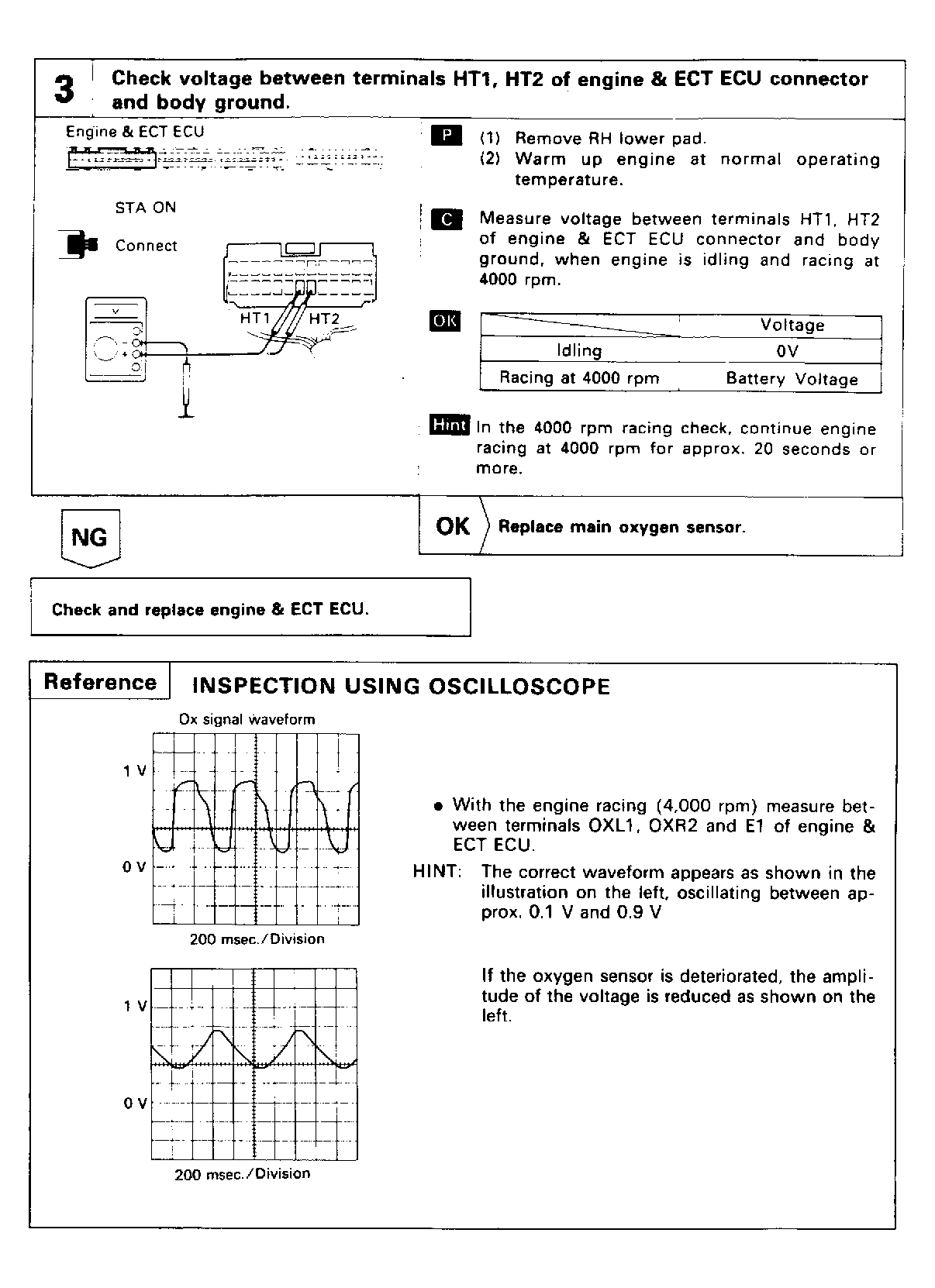

Fig 2: Codes 21 & 28: Main O2 Sensor Signal Left or Right Bank (2 of 2)
G90H18934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
