Using An Ammeter With A Current-Measuring Probe

1. Remove the master switch with connector connected.
2. Attach a current measuring probe to terminal 8 of the wire harness. See Fig 1.
3. Turn the ignition switch ON and set the power window switch in the down position.
4. As the window goes down, check that the current flow is approximately 7 A. See Fig 2.
NOTE: The circuit breaker opens some 4-40 seconds after the window stops going down, so that a check must be made before the circuit breaker operates.
5. Check that the current increases up to approximately 14.5 A or more when the window stops going down. If operation is not as specified, replace the master switch

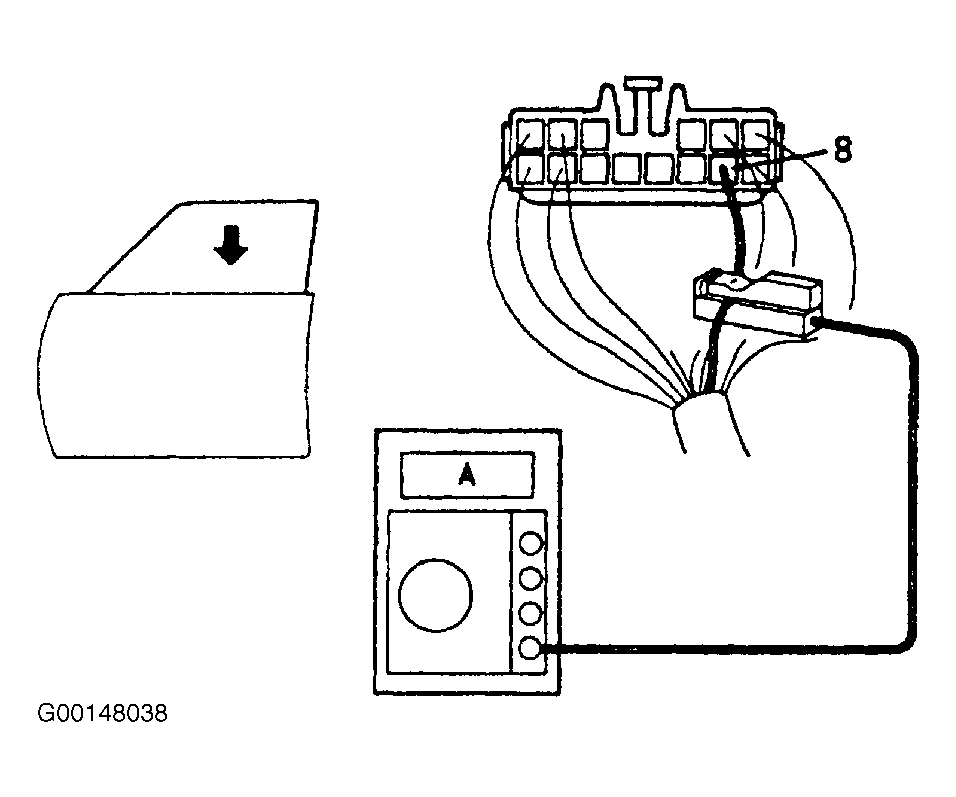

Fig 1: Testing Using An Ammeter With A Current Measuring Probe (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

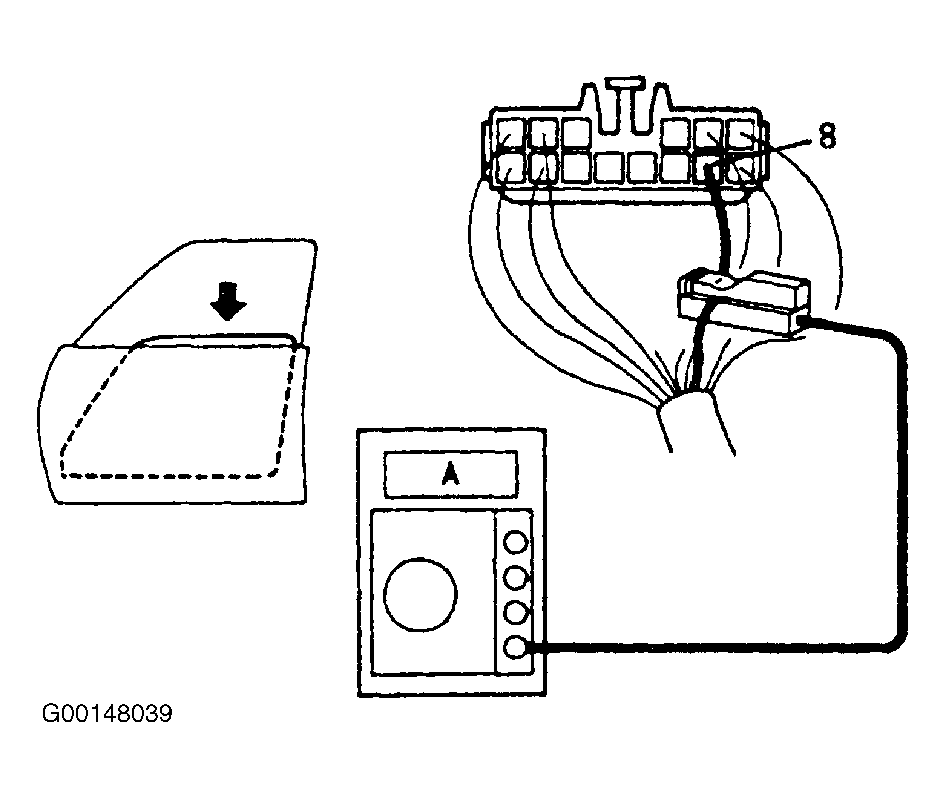

Fig 2: Testing Using An Ammeter With A Current Measuring Probe (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
