Normal Mode

  1. Normal mode is used for routine testing of vehicle. To read diagnostic codes, ensure battery voltage is at least 11 volts, throttle valve is fully closed, transaxle/transmission is in Neutral and all accessories are off.
  2. Total Diagnostic Communication Link (TDCL) connector is located under left side of instrument panel. See Fig 1. Diagnostic codes can be obtained through TDCL connector or check connector. On ES300, check connector is located in engine compartment near right shock tower. On SC300, check connector is located in engine compartment on top of exhaust manifold. See Fig 2.
  3. On all models, turn ignition on. DO NOT start engine. Using a jumper wire, connect terminals E1 and TE1 together either on TDCL connector or check connector. See Fig 3. Count number of flashes from CHECK ENGINE light.
    Fig 1: Locating TDCL Connector
    G90H18884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 2: Locating Check Connector (SC300)
    G92J25337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

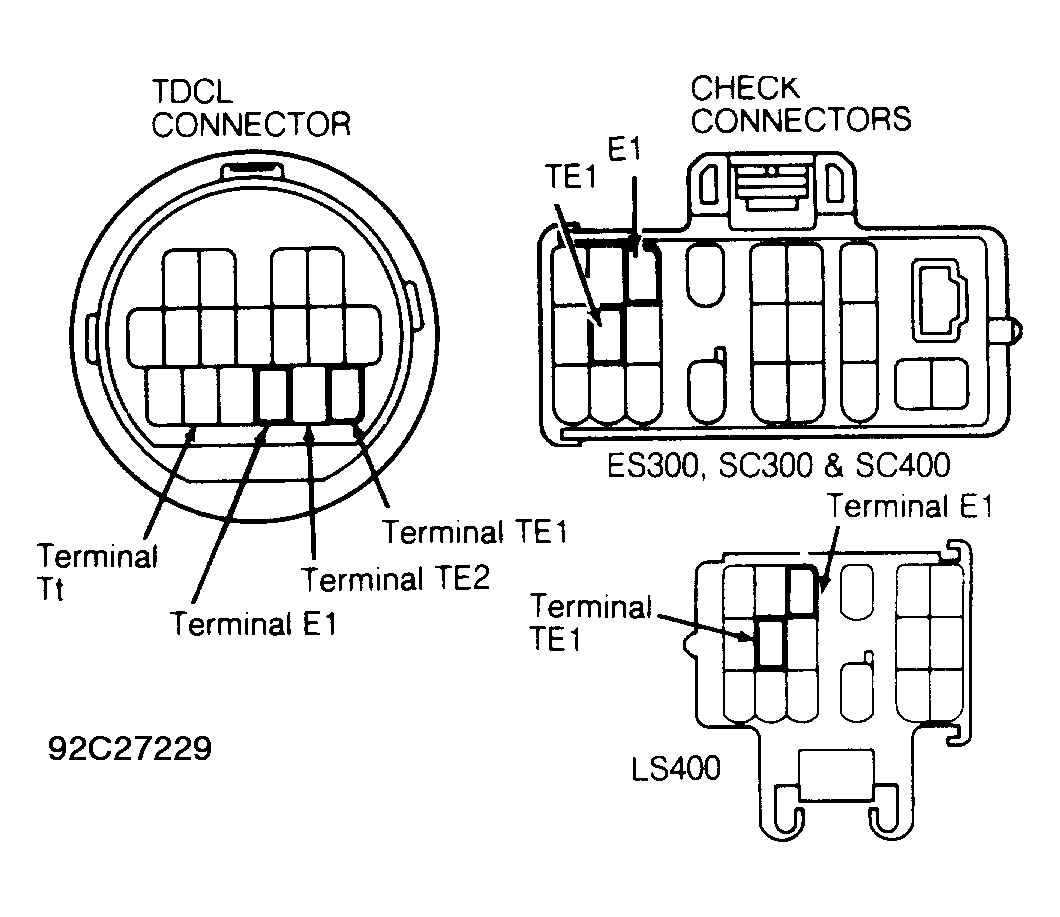

    Fig 3: Identifying TDCL & Check Connector Terminals
    G92C27229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. If CHECK ENGINE light flashes 2 times every second, system is normal. If a diagnostic code is displayed, first group of flashes will indicate first digit of a 2-digit diagnostic code. After a 1.5 second delay, second group of flashes will indicate second digit of diagnostic code.
  5. If more than one code is stored, a 2.5 second delay will occur between diagnostic codes. After all diagnostic codes have been displayed, a 4.5 second delay will occur and then codes will be repeated until jumper wire connecting terminals E1 and TE1 is disconnected. Diagnostic codes will display from smallest to largest number.
  6. Record diagnostic codes. See CODE IDENTIFICATION  table under TROUBLE CODE DEFINITION for description of possible circuit problem. After reading diagnostic code description, see appropriate diagnostic code chart. To clear codes, see CLEARING CODES.
