Control Units
CONTROL UNITS LOCATION
| Component | Location | ||
|---|---|---|---|
| Electronic Control Unit (ECU) | |||
| ABS | |||

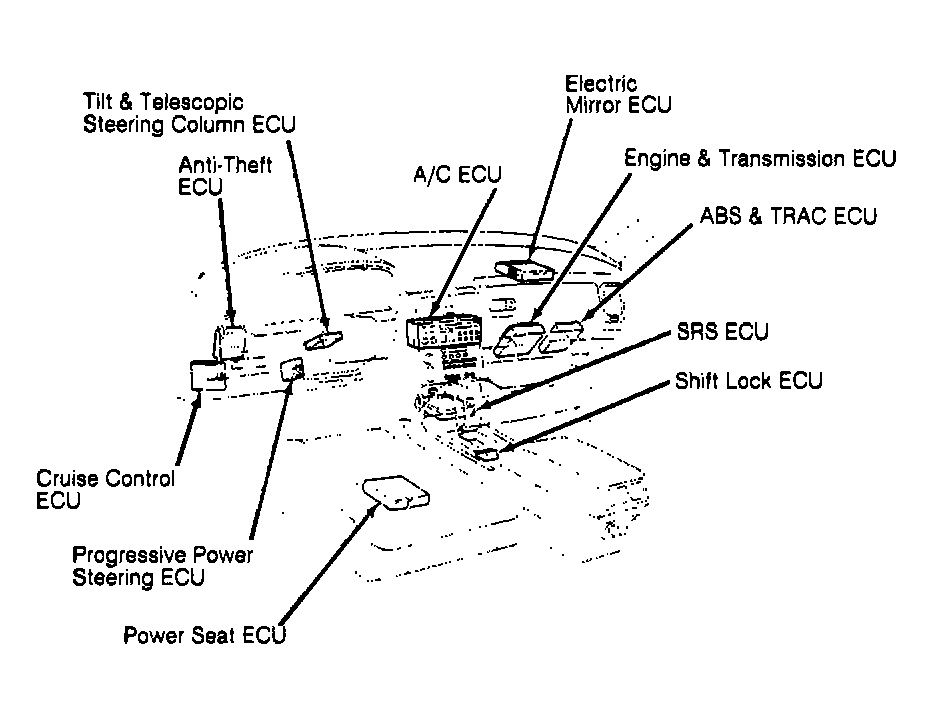

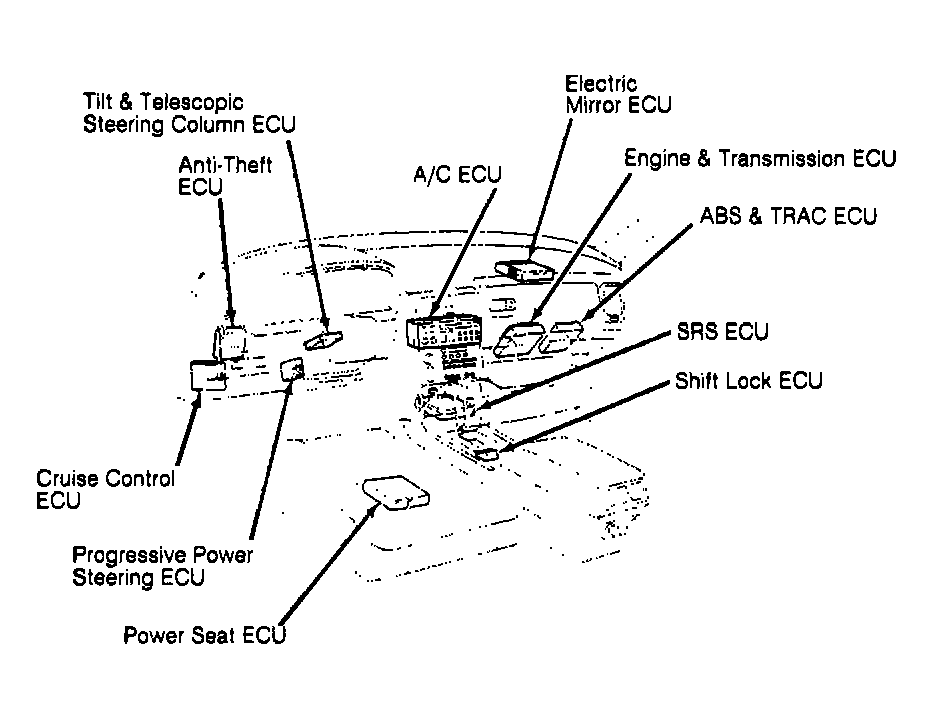

| View of Dash | Behind right side of dash. See Figure. | ||
| Control Units & Sensor Location | Behind right side of dash. See Figure. | ||
| A/C System | |||
| View of Dash | Behind center of console, integral of A/C control assembly. See Figure. | ||
| Control Units & Sensor Location | Behind center of console, integral of A/C control assembly. See Figure. | ||
| Anti-Theft | |||
| View of Dash | Behind left side of dash, above fuse/relay block. See Figure. | ||
| Control Units & Sensor Location | Behind left side of dash, above fuse/relay block. See Figure. | ||
| Coolant Level Warning | Behind left side of dash, left of steering column. See Figure. | ||
| Cruise Control | |||
| View of Dash | Behind left side of dash. See Figure. | ||
| Control Units & Sensor Location | Behind left side of dash. See Figure. | ||
| Electric Side Mirrors | |||
| View of Dash | Behind right side of dash. See Figure. | ||
| Control Units & Sensor Location | Behind right side of dash. See Figure. | ||

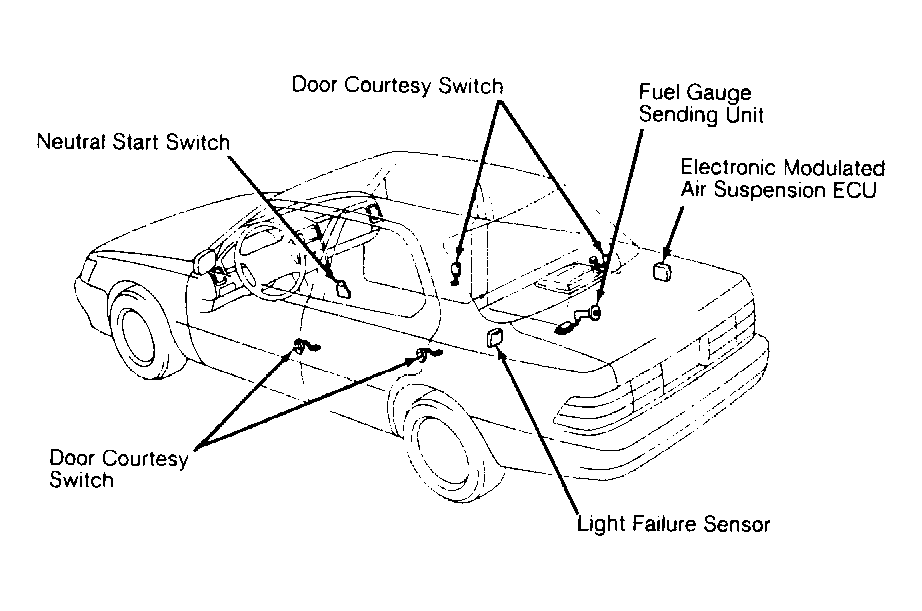

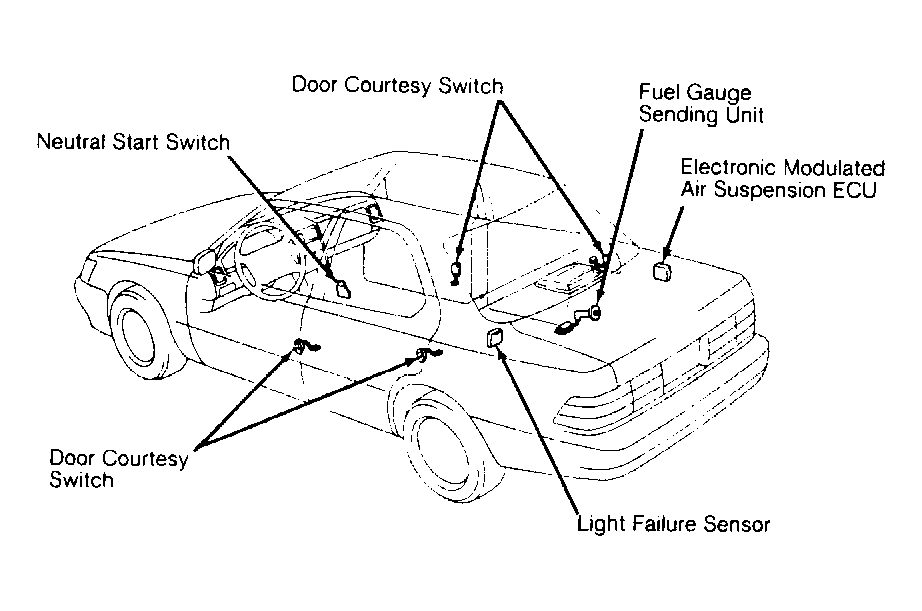

| Elec. Modulated Air Suspension | In right rear corner of luggage compartment. See Figure. | ||
| Engine | |||
| View of Dash | Behind right side of dash. See Figure. | ||

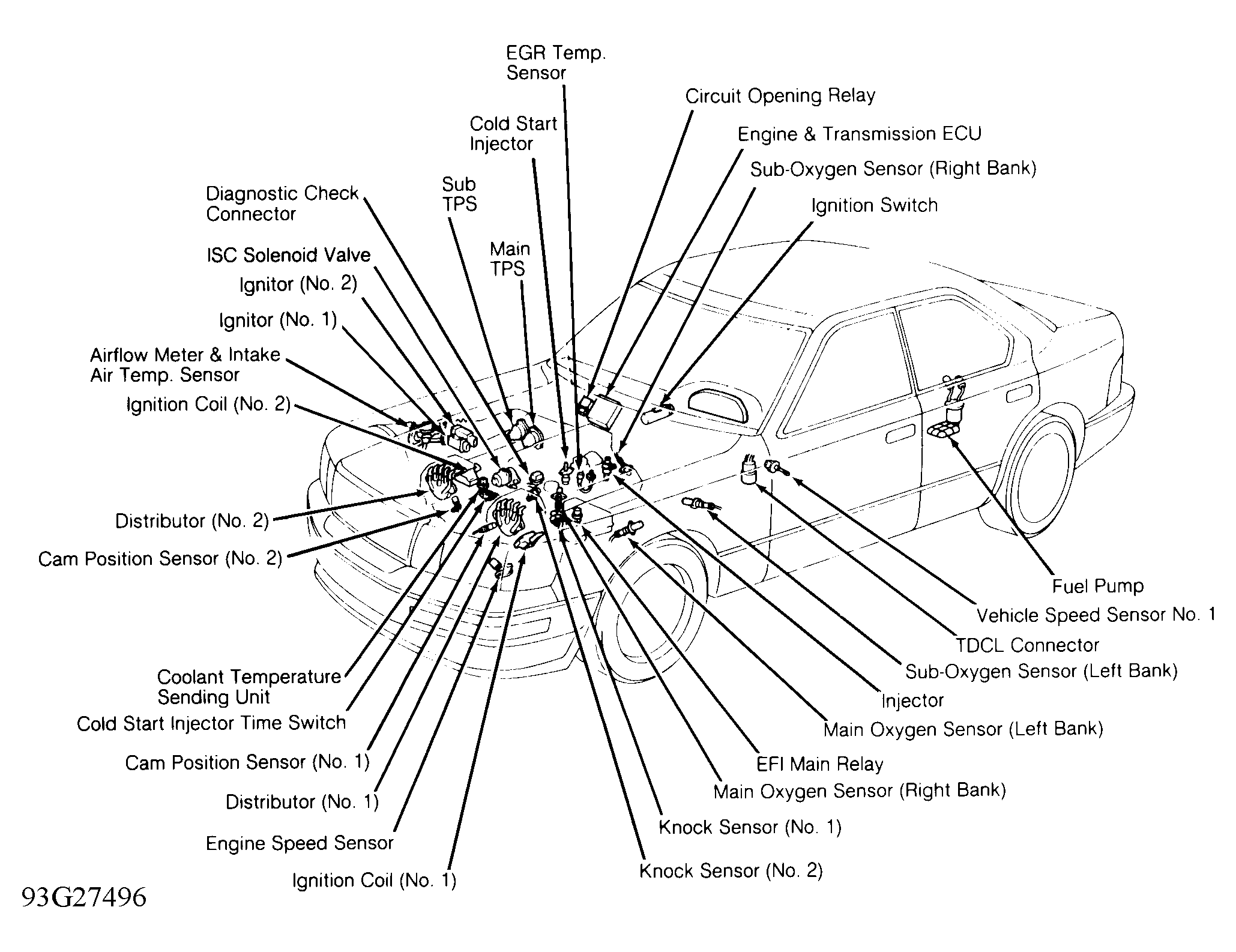

| Electrical Harness Layout | Behind right side of dash. See Figure. | ||

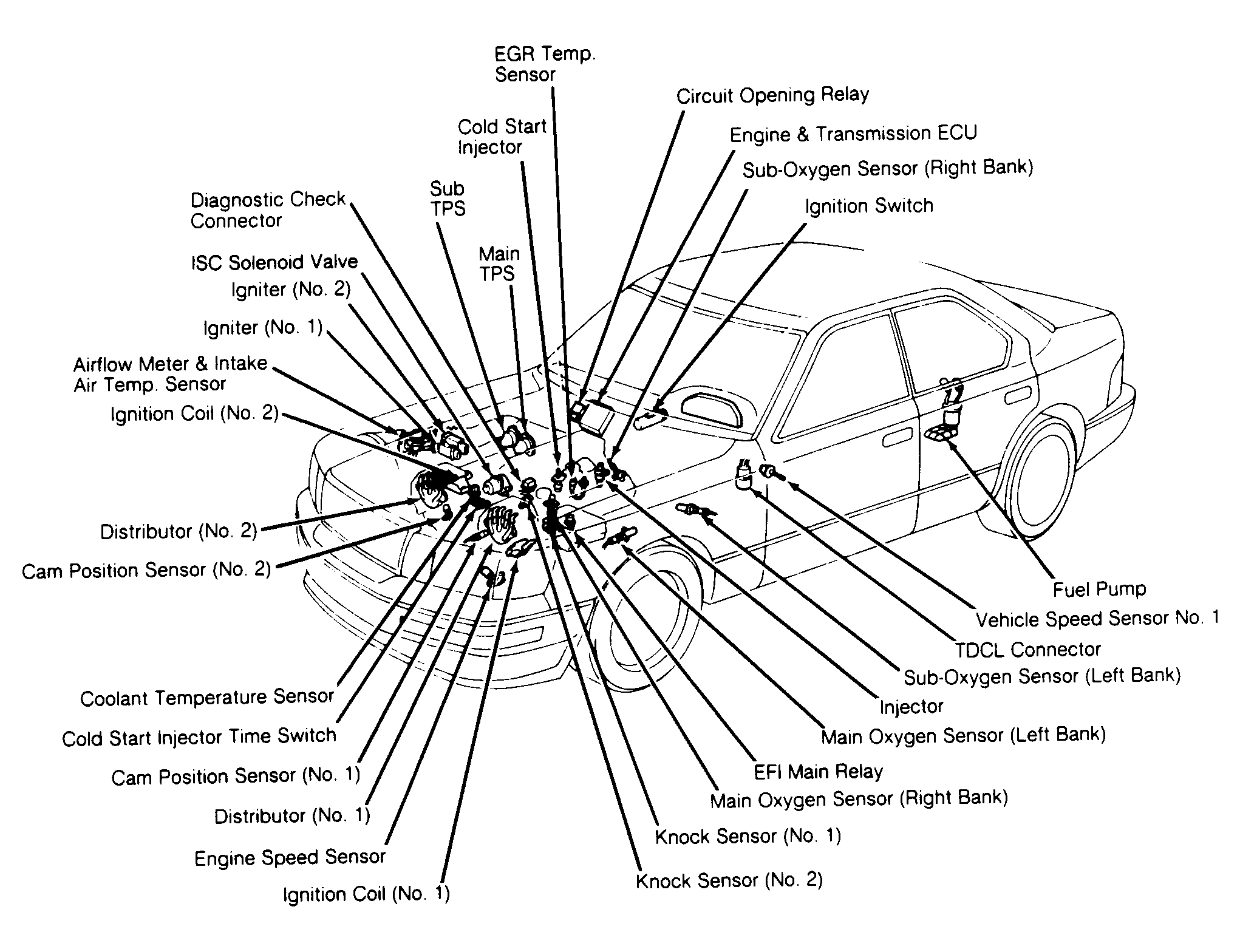

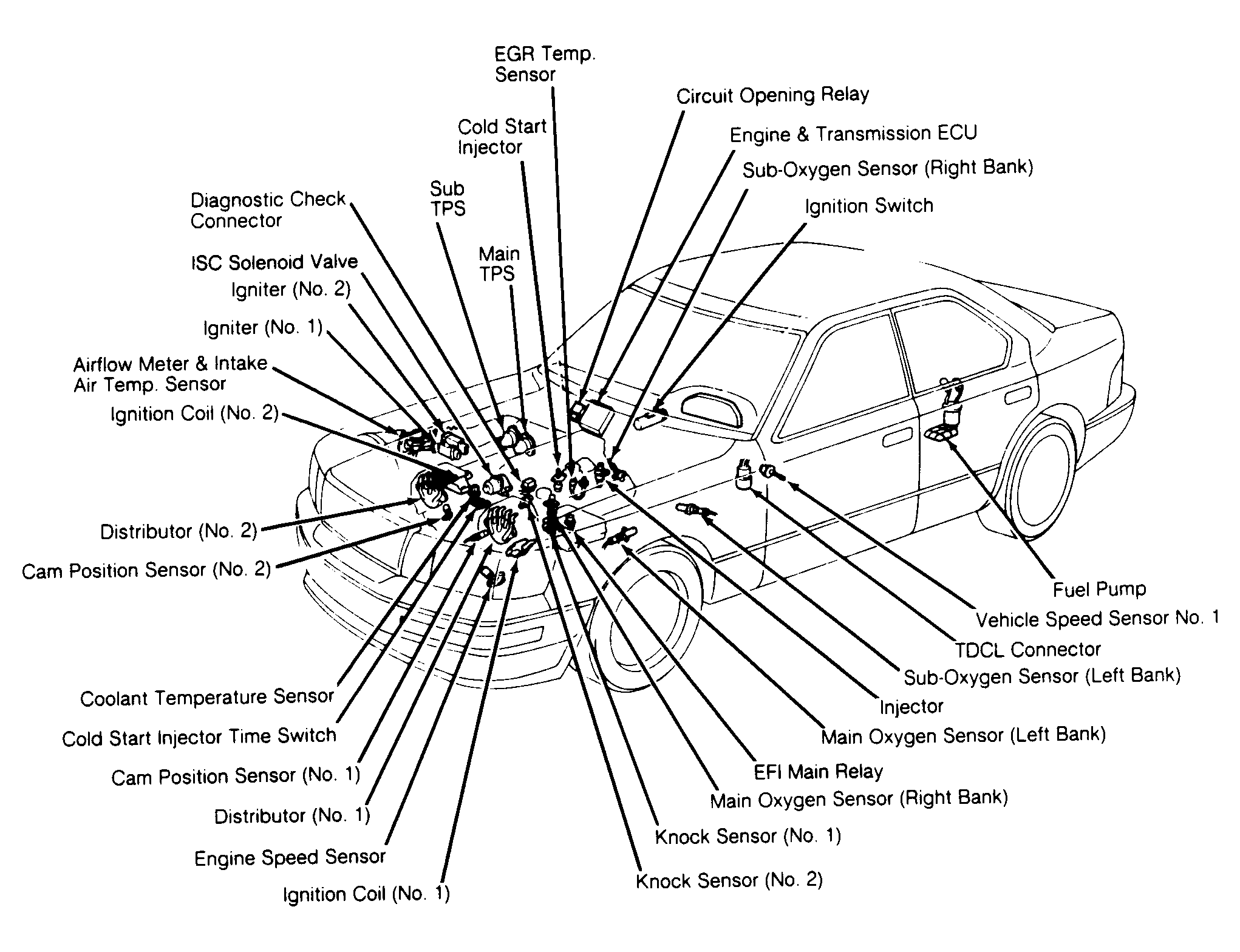

| Control Units & Sensor Location | Behind right side of dash. See Figure. | ||
| Power Door Lock | |||
| View of Dash | Behind left side of dash, integral of anti-theft ECU. See Figure. | ||
| Control Units & Sensor Location | Behind left side of dash, integral of anti-theft ECU. See Figure. | ||
| Electronic Control Unit (ECU) | |||
| Power Seat | Under driver's seat. See Figure. | ||
| Progressive Power Steering | |||
| View of Dash | Behind center of dash. See Figure. | ||
| Control Units & Sensor Location | Behind center of dash. See Figure. | ||
| Shift Lock | |||
| View of Dash | Under center console, on base of gear selector. See Figure. | ||
| Control Units & Sensor Location | Under center console, on base of gear selector. See Figure. | ||
| Tilt & Telescopic Steering Column | |||
| View of Dash | Behind left side of dash, above steering column. See Figure. | ||
| Control Units & Sensor Location | Behind left side of dash, above steering column. See Figure. | ||
| TRAC System | |||
| View of Dash | Behind right side of dash, integral of ABS ECU. See Figure. | ||
| Control Units & Sensor Location | Behind right side of dash, integral of ABS ECU. See Figure. | ||
| Transmission | |||
| View of Dash | Behind right side of dash, integral of engine ECU. See Figure. | ||

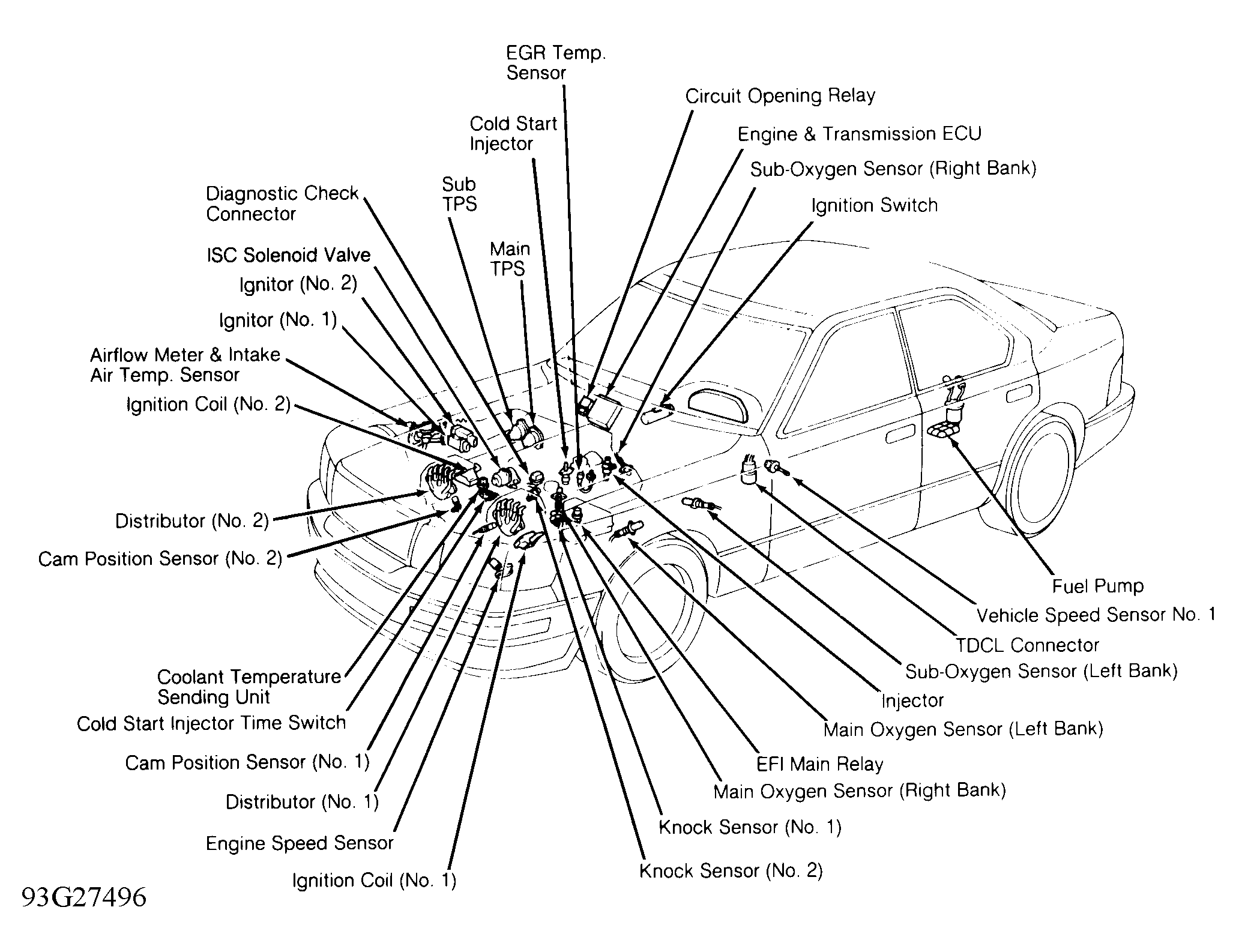

| Electrical Harness Layout | Behind right side of dash, integral of engine ECU. See Figure. | ||
| Control Units & Sensor Location | Behind right side of dash, integral of engine ECU. See Figure. | ||
| Wireless Door Lock | In left side of luggage compartment. | ||
