Ignition Timing: Es300
CAUTION:
Some tachometers may not be compatible with ignition system. Consult tachometer manufacturer before connecting tachometer to system. DO NOT allow tachometer terminal to become grounded, or damage to ignitor and/or coil may occur.

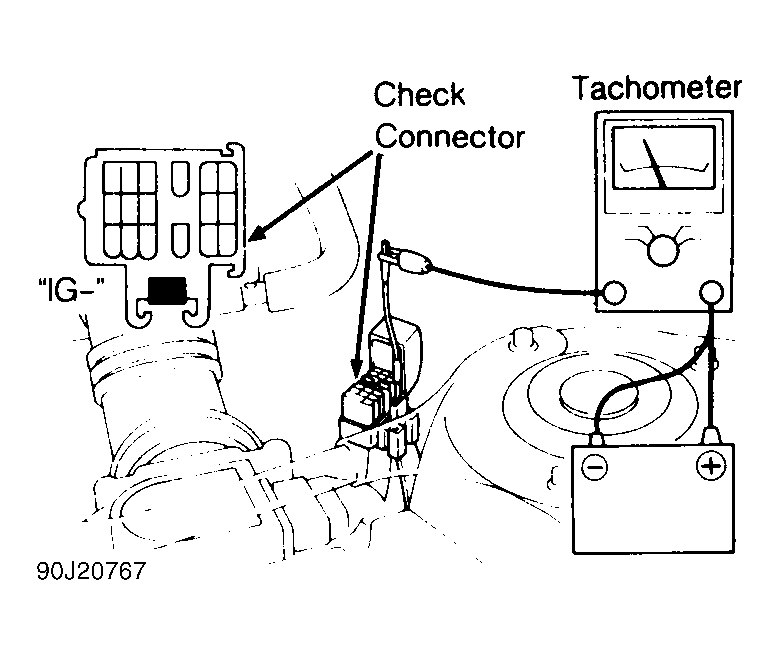

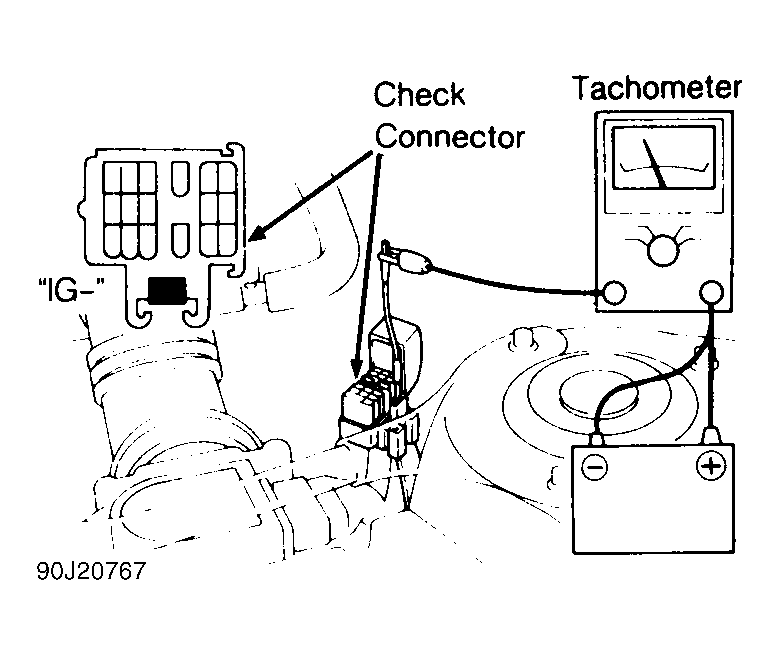

- Ensure engine is at normal operating temperature. Connect timing light to No. 1 plug wire. Connect tachometer to IG- terminal of engine check connector. See Fig 1.

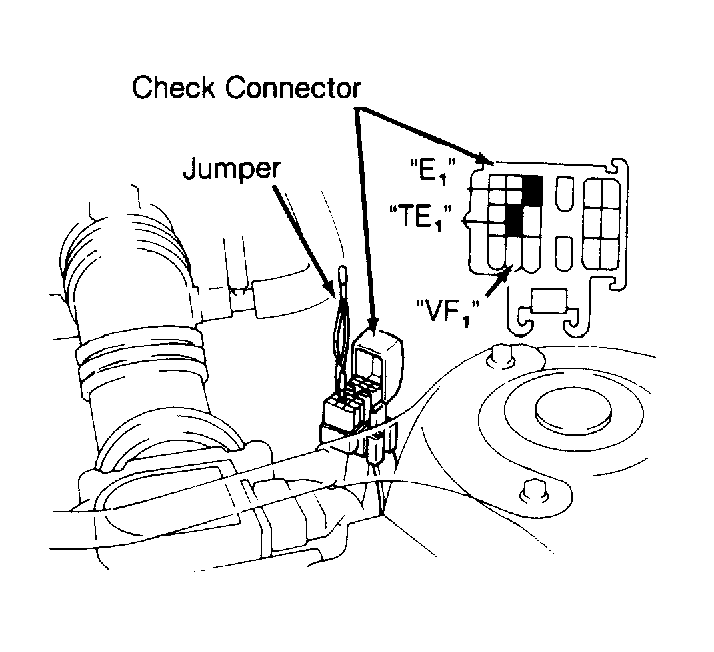

- Install jumper wire between terminals TE1 and E1 of engine check connector. See Fig 2. Ensure idle speed is within specification. See IDLE SPEED SPECIFICATIONS table under IDLE SPEED & MIXTURE. Ensure base timing is within specification. See IGNITION TIMING table. Adjust timing by turning distributor.
- Remove jumper wire from engine check connector and check that advance timing is within specification. See IGNITION TIMING table.
IGNITION TIMING
| Application | Timing Advance |
|---|---|
| ES300 | 10 @ 650-750 |
| LS400 | 8-12 @ 600-700 |
| SC300 | 8-12 @ 600-700 |
| SC400 | 8-12 @ 600-700 |
