Code 12 - Rpm Signal

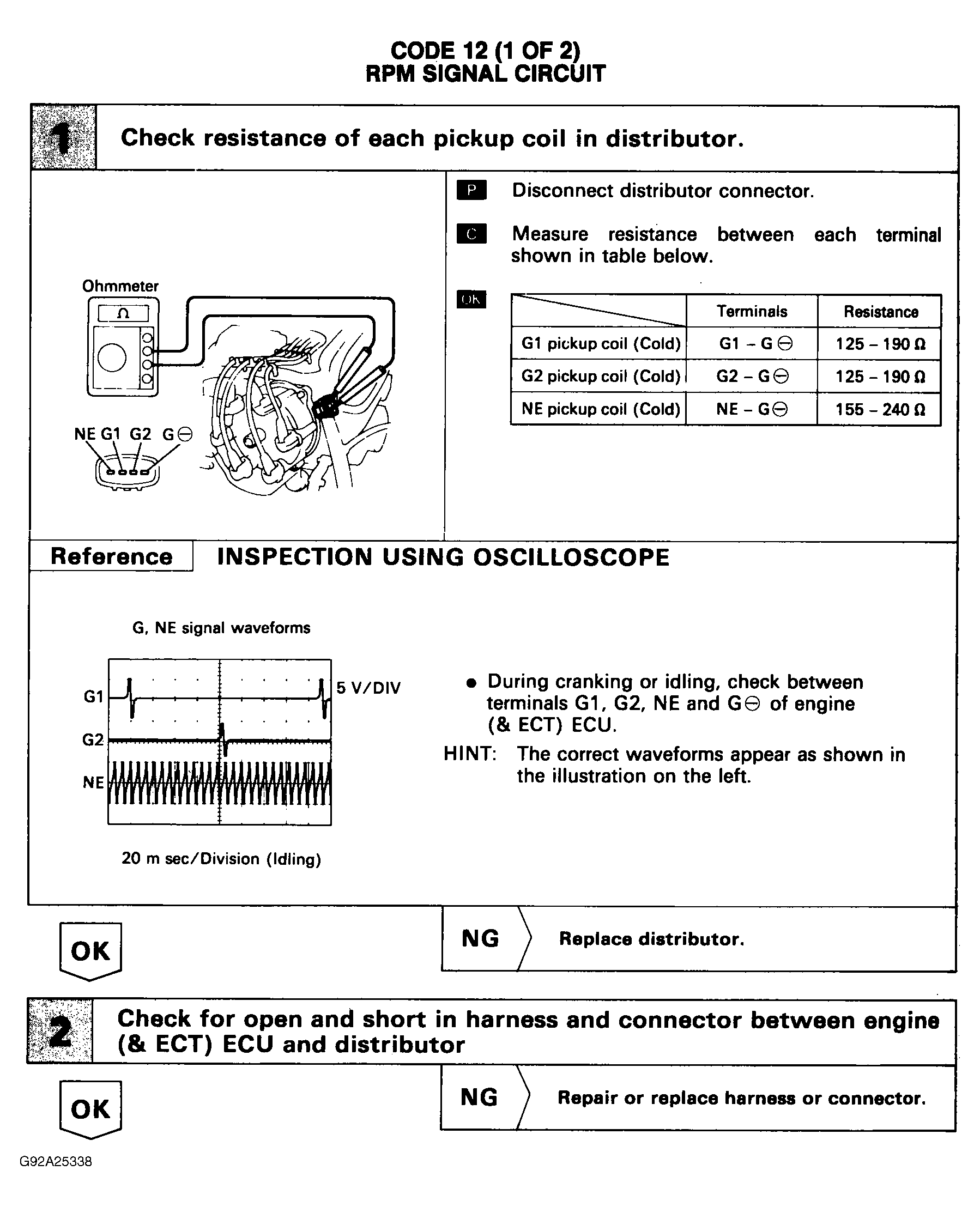

Fig 1: Code 12 Flow Chart (1 of 2) - RPM Signal
G92A25338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

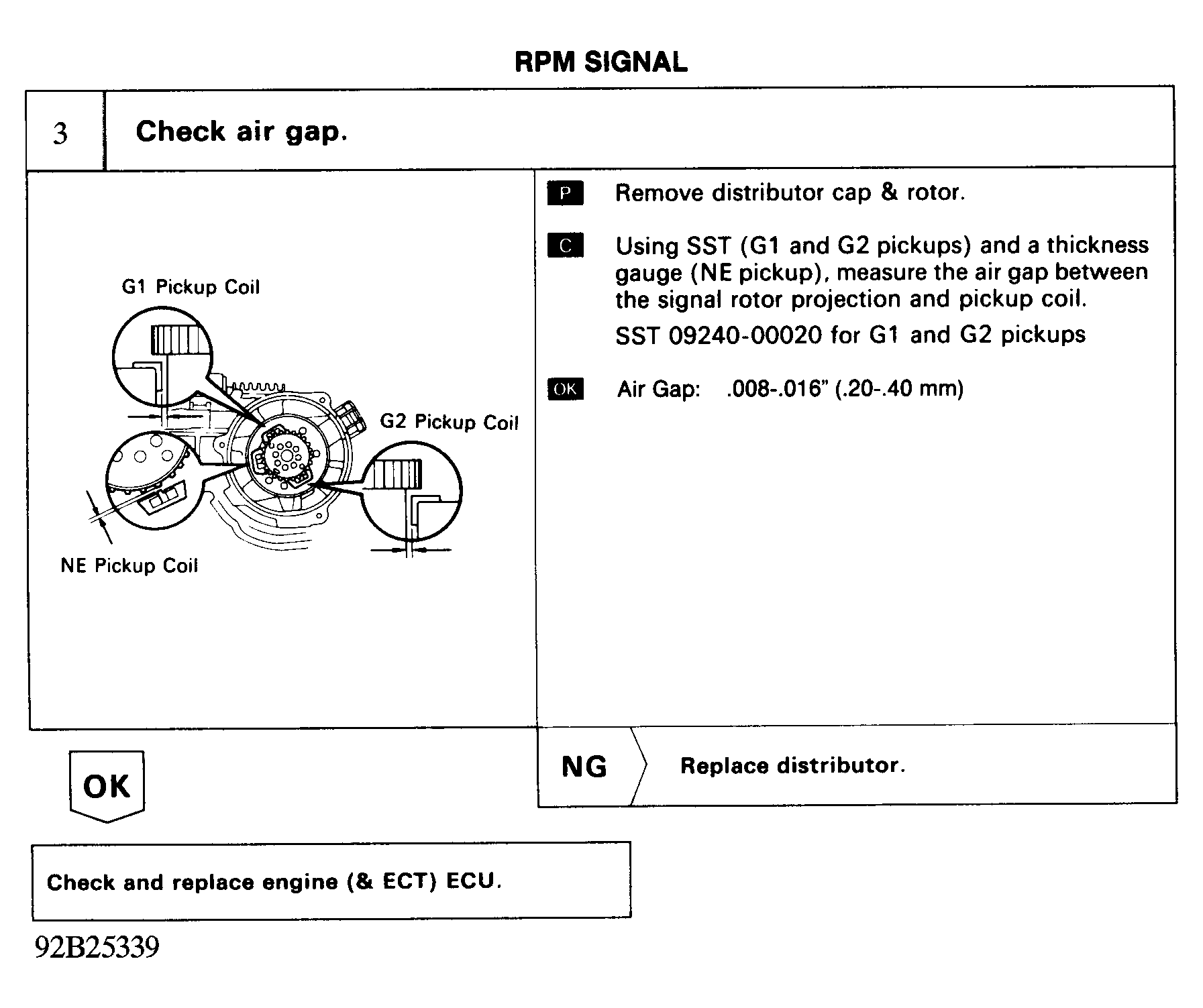

Fig 2: Code 12 Flow Chart (2 of 2) - RPM Signal
G92B25339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
