Code 24 - Intake Air Temperature Sensor Signal

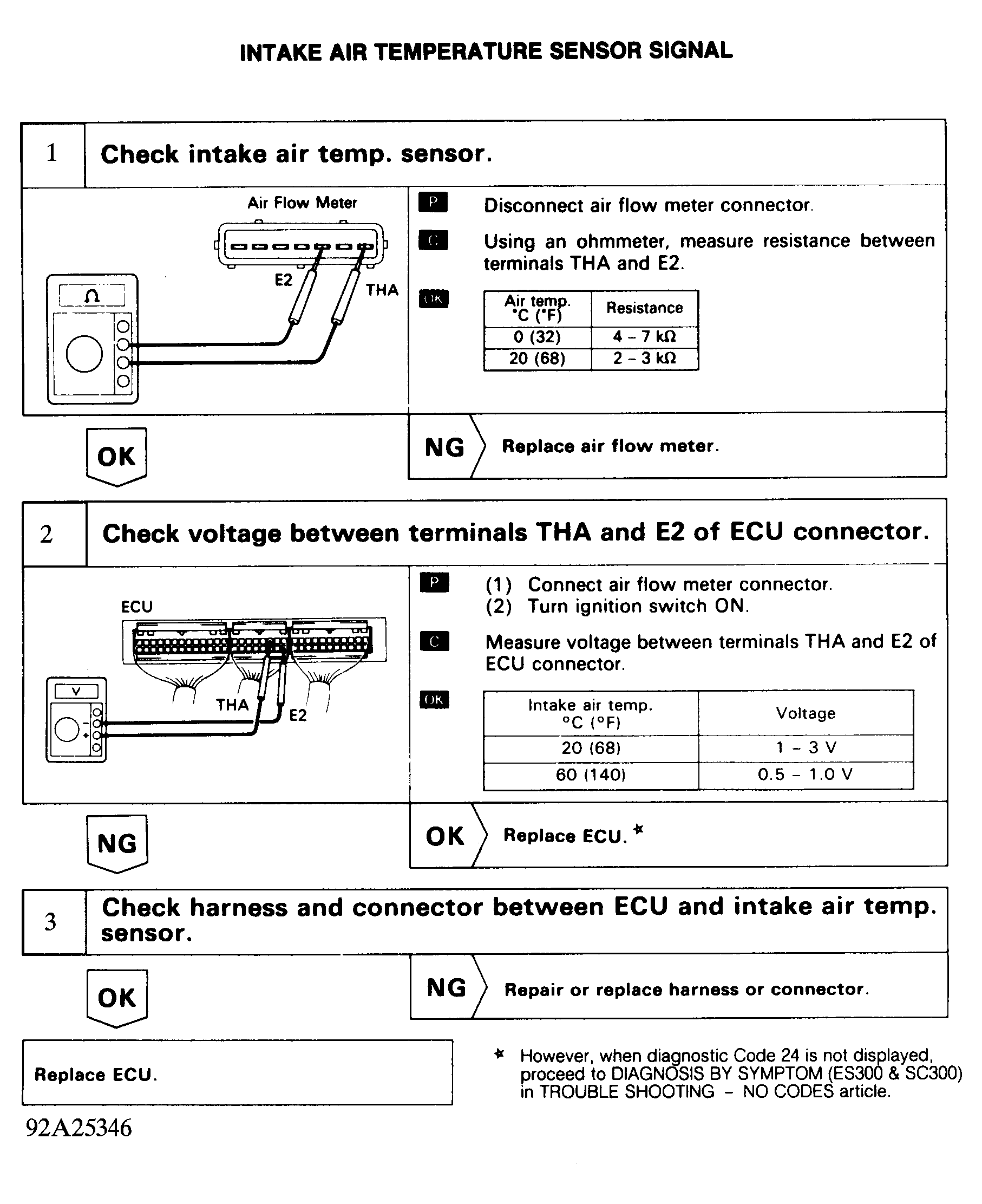

Fig 1: Code 24 Flow Chart - Intake Air Temperature Sensor Signal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
