Power Window Master Switch: Circuit

Disconnect the connector from the master switch and inspect the connector on the wire harness side, See Fig 1. If the circuit is not as specified, inspect the circuit connected to other parts.

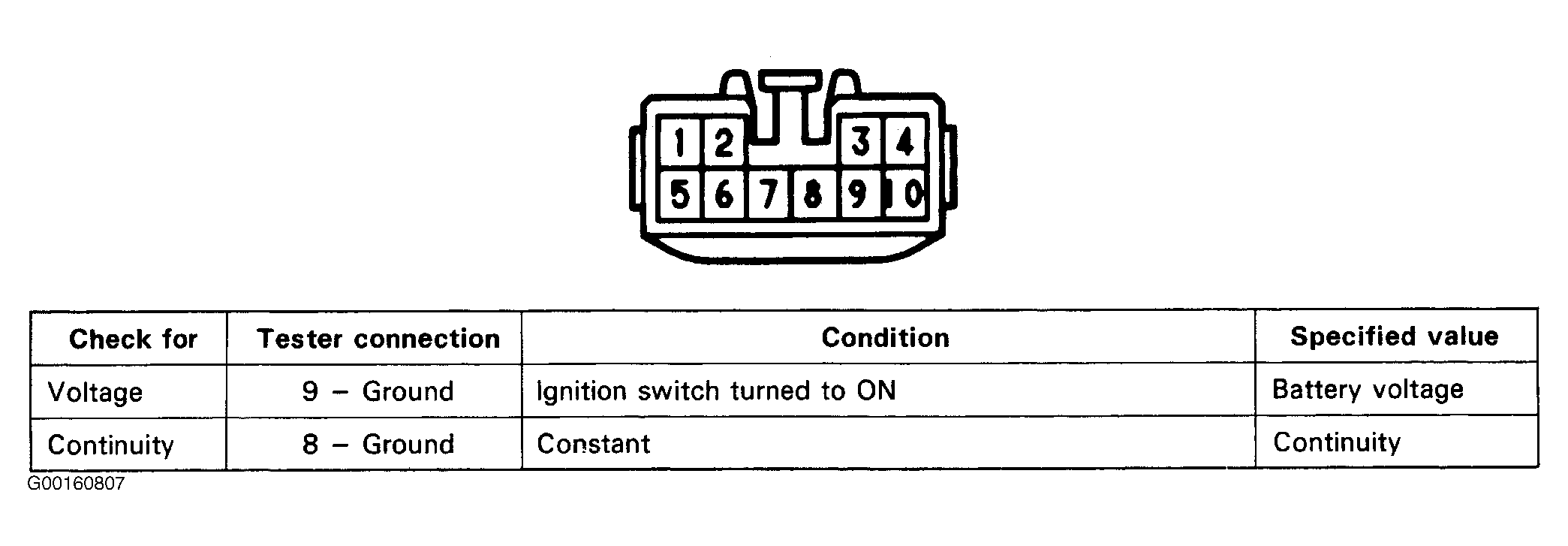

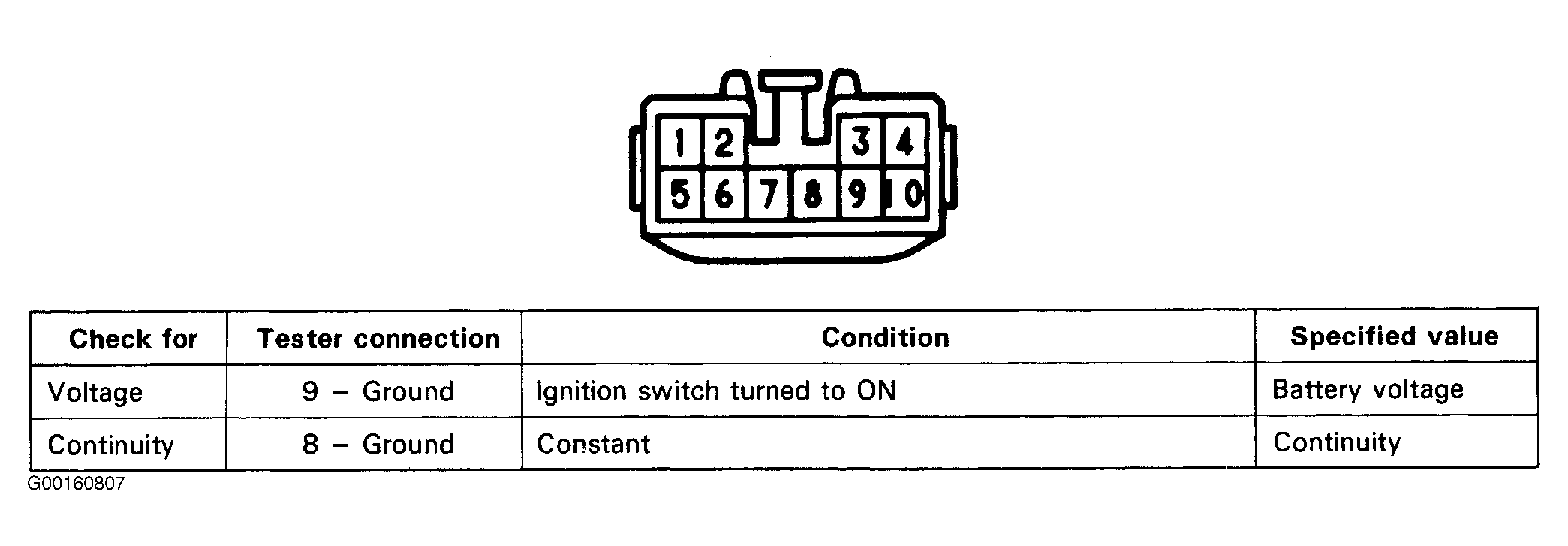

Fig 1: Testing Power Window Master Switch Circuit
G00160807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
