Power Window Master Switch: Continuity

To test the continuity of the power window master switch, see Fig 1. If continuity is not as specified, replace the master switch.

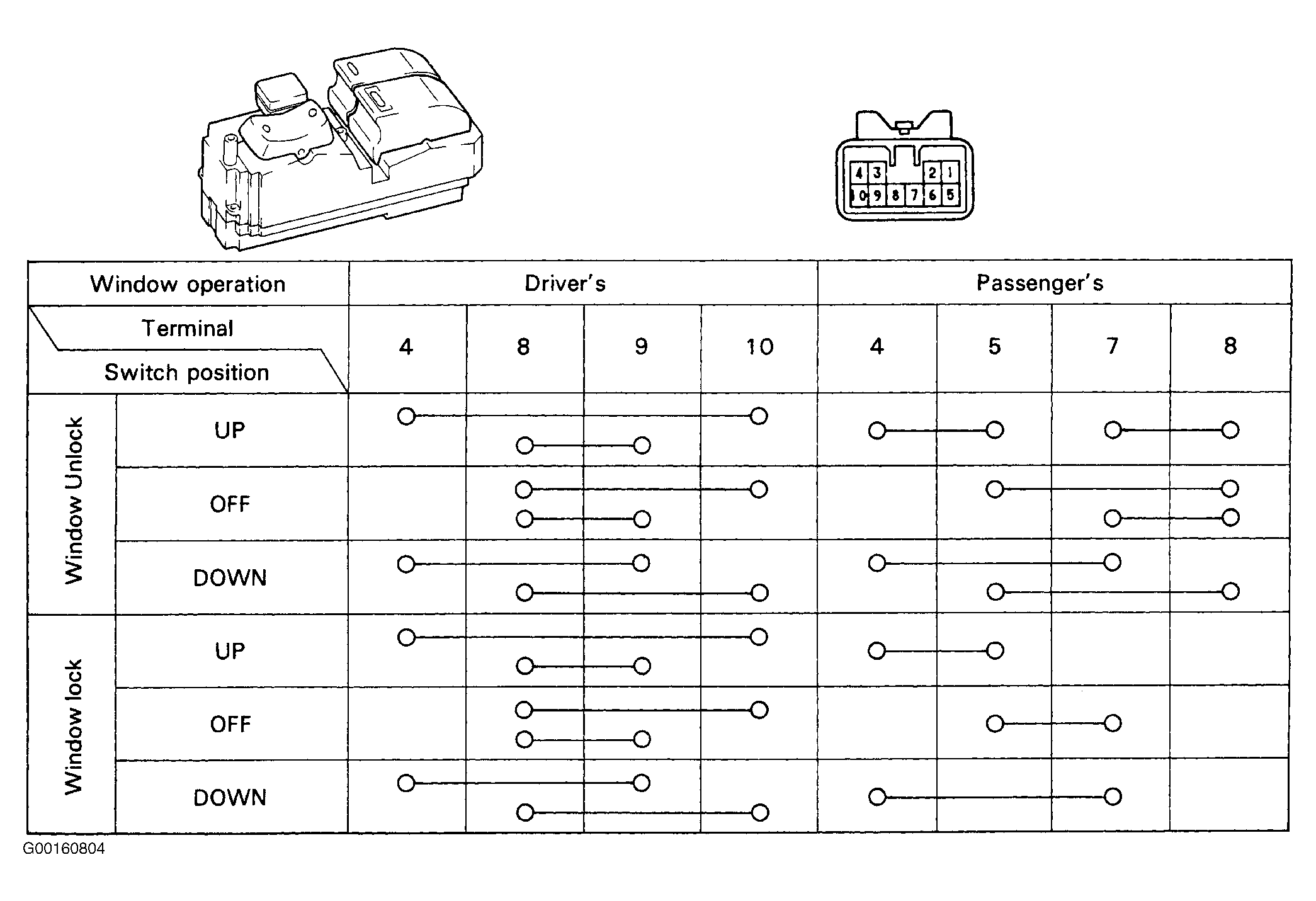

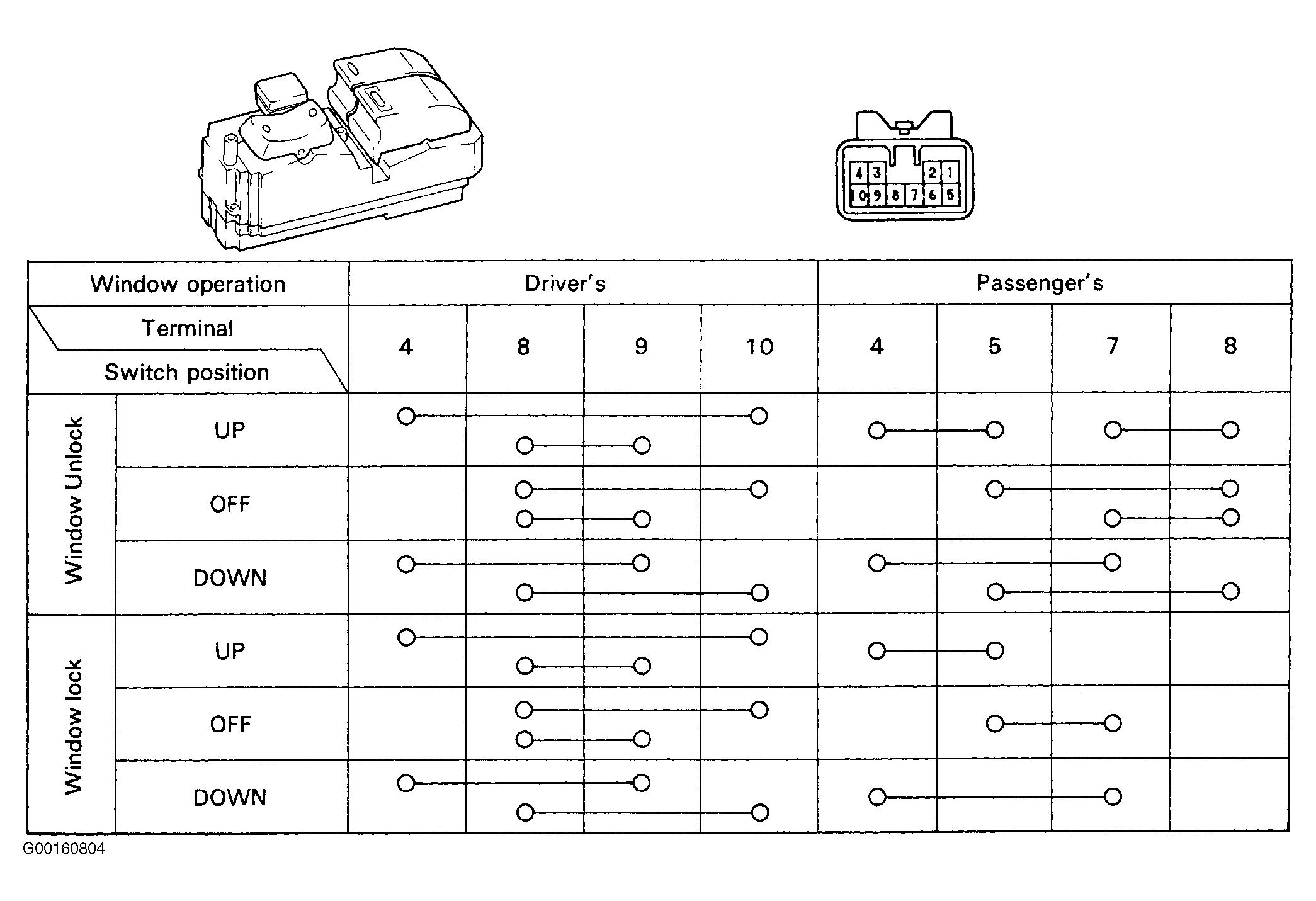

Fig 1: Testing Power Window Master Switch For Continuity

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
