Power Window Switch: Continuity

To test the continuity of the power window switch, see Fig 1. If continuity is not as specified, replace the switch.

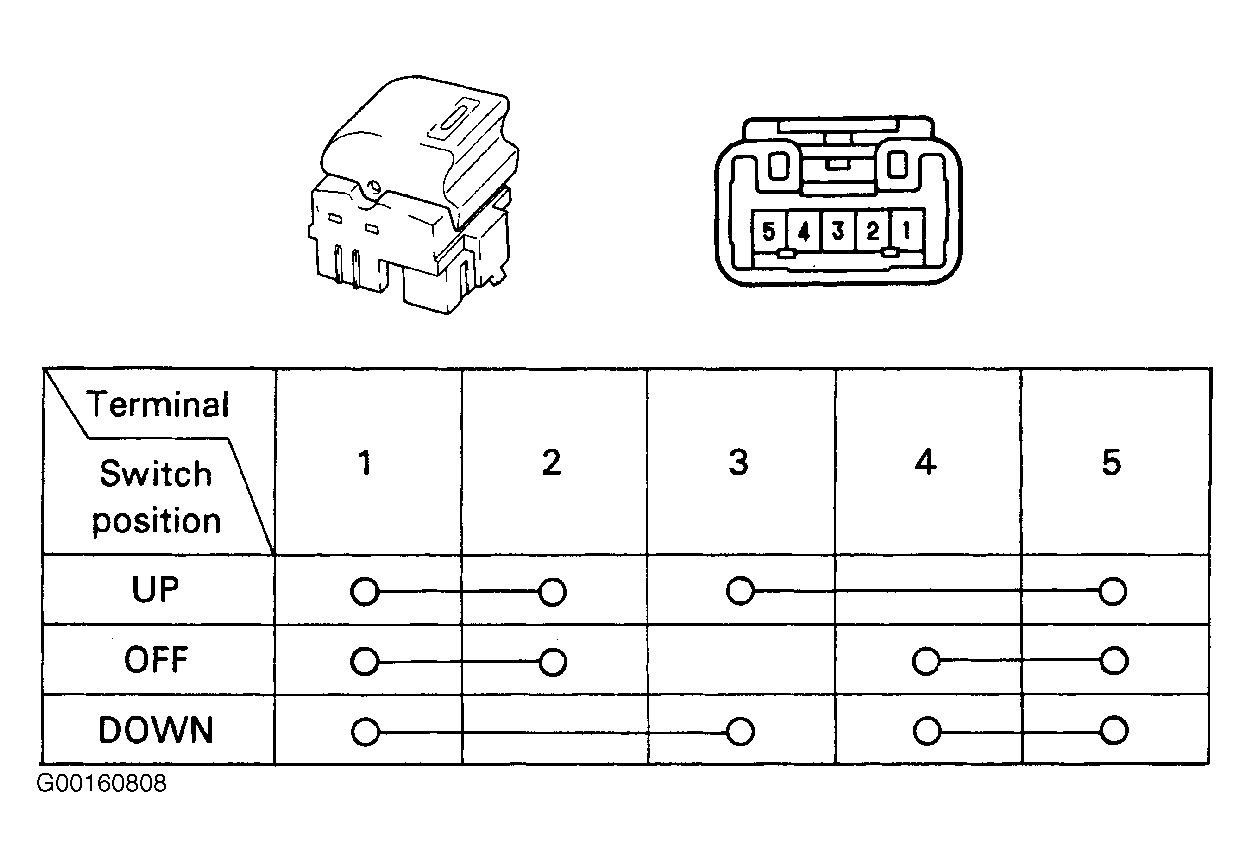

Fig 1: Testing Power Window Switch Continuity
G00160808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
