Neutral/Start Switch

Using an ohmmeter, ensure continuity exists between neutral/start switch terminals when selector lever is in either Park or Neutral position. No continuity should exist with selector lever in any other position. See Fig 1. If continuity is not as specified, replace switch.

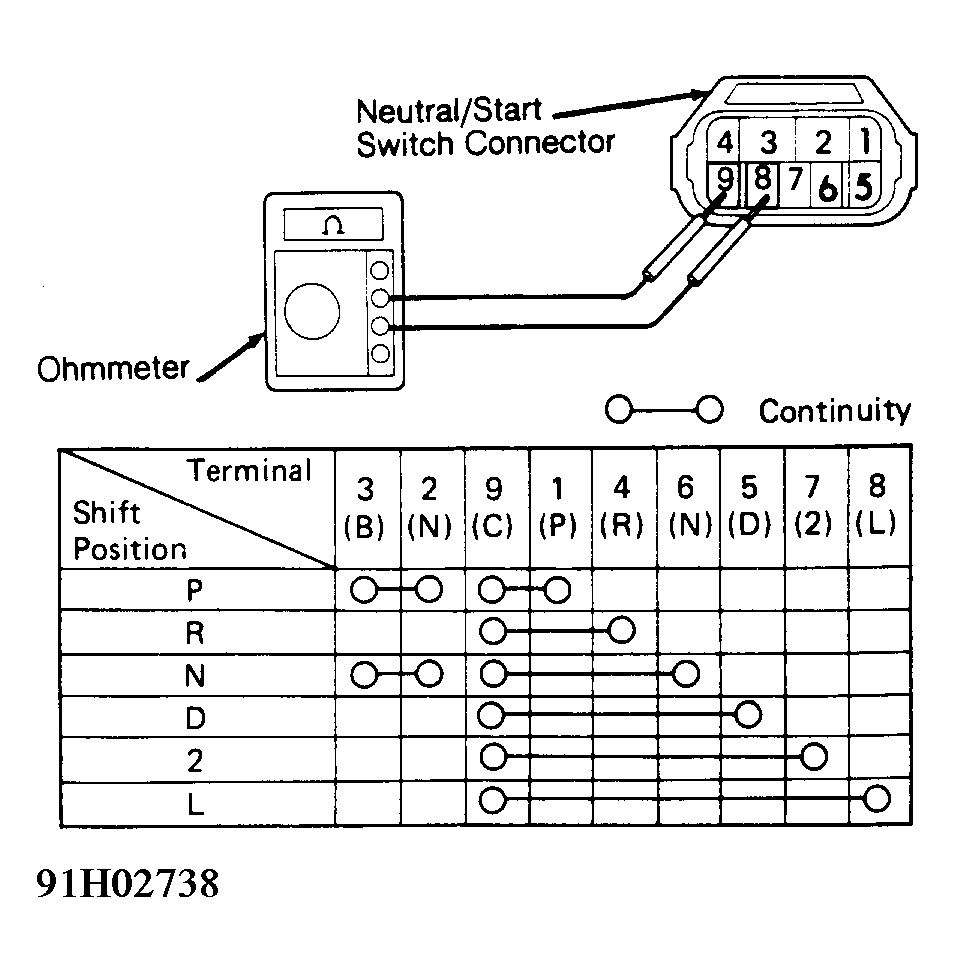

Fig 1: Testing Neutral/Start Switch
G91H02738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
