Code 31 - Airflow Meter Signal

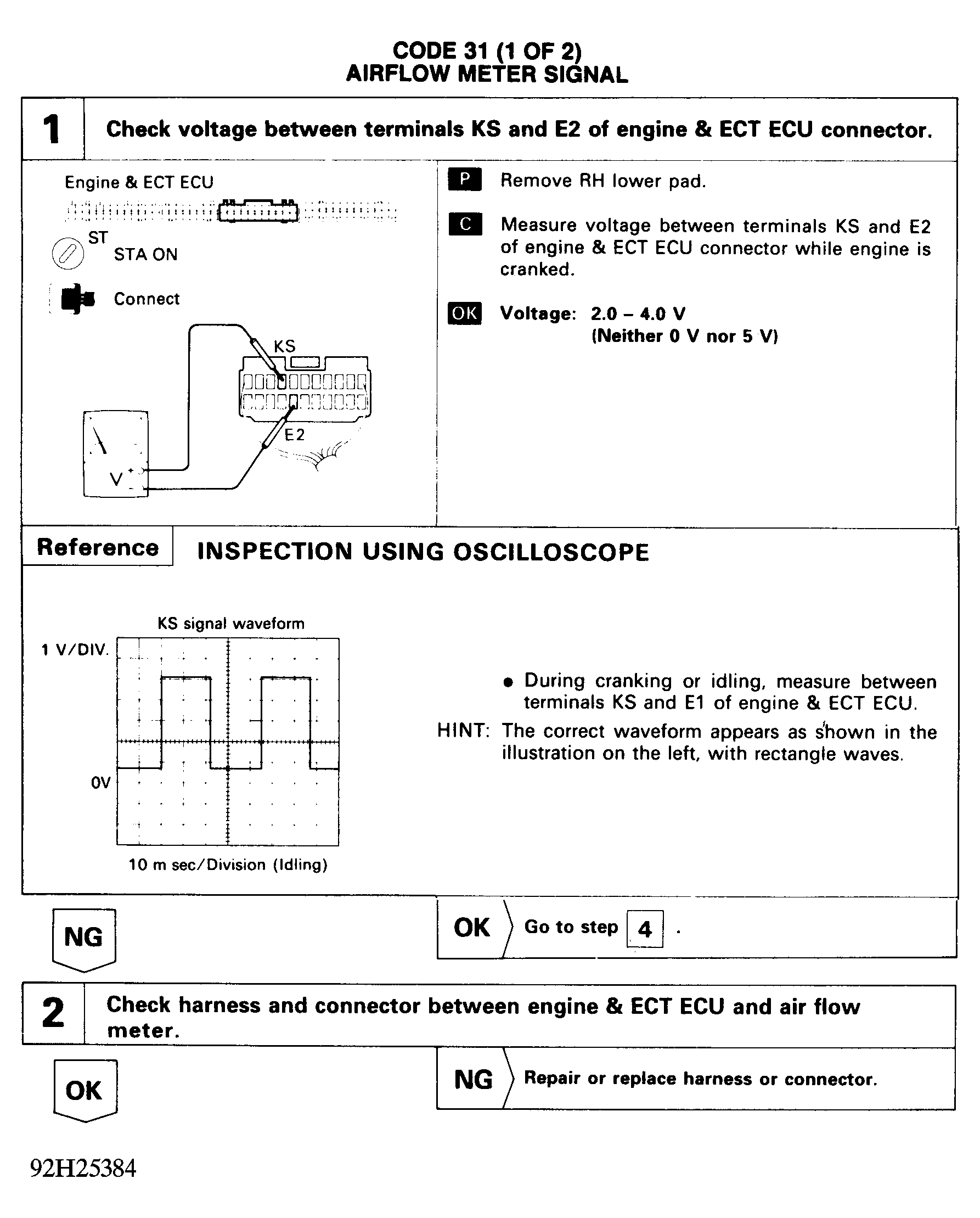

Fig 1: Code 31 Flow Chart (1 of 2) - Airflow Meter Signal
G92H25384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

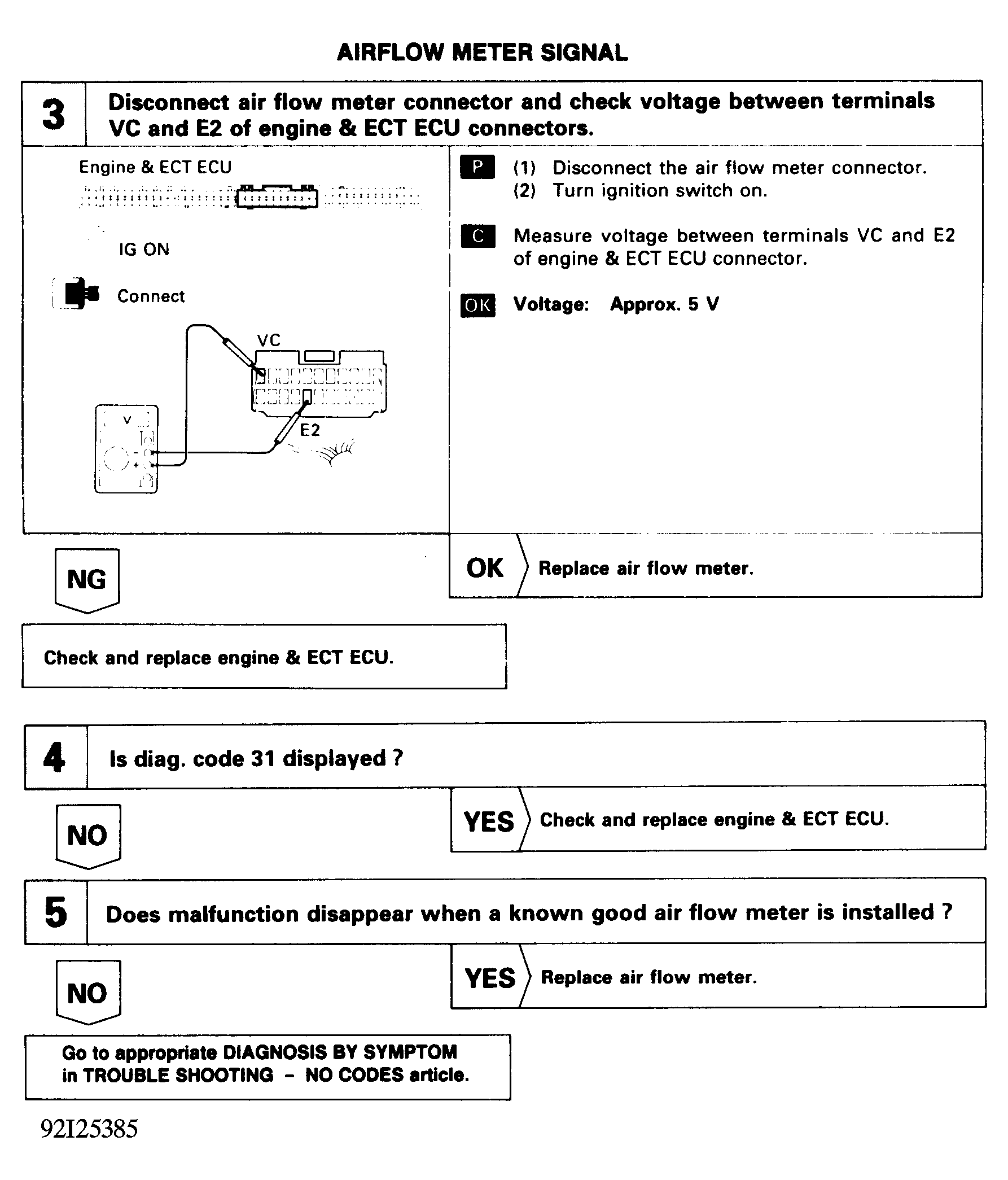

Fig 2: Code 31 Flow Chart (2 of 2) - Airflow Meter Signal
G92I25385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
