Code 14 - Ignition Signal Circuit

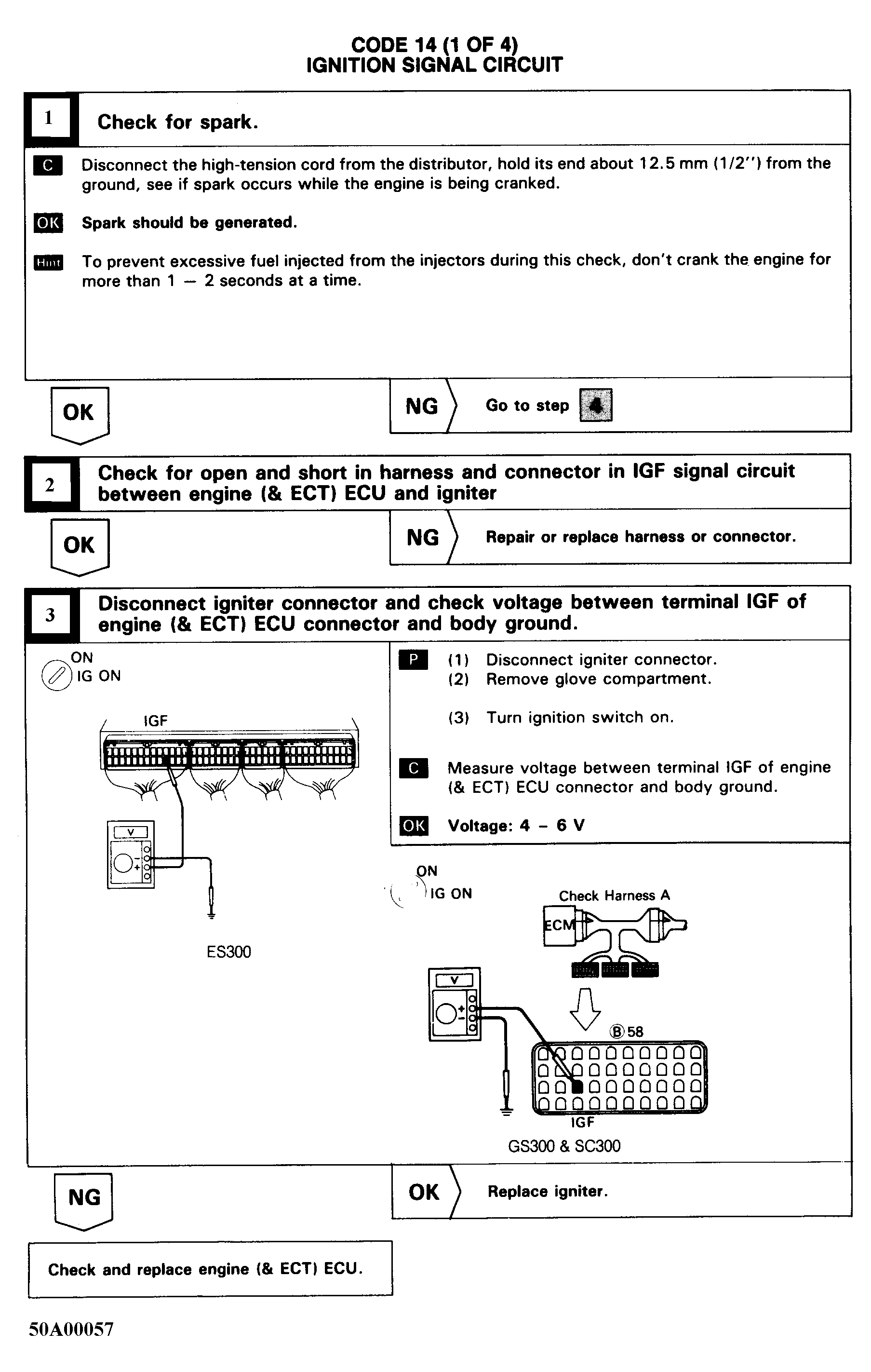

Fig 1: Code 14 - Diagnostic Flowchart (1 Of 4)
G50A00057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

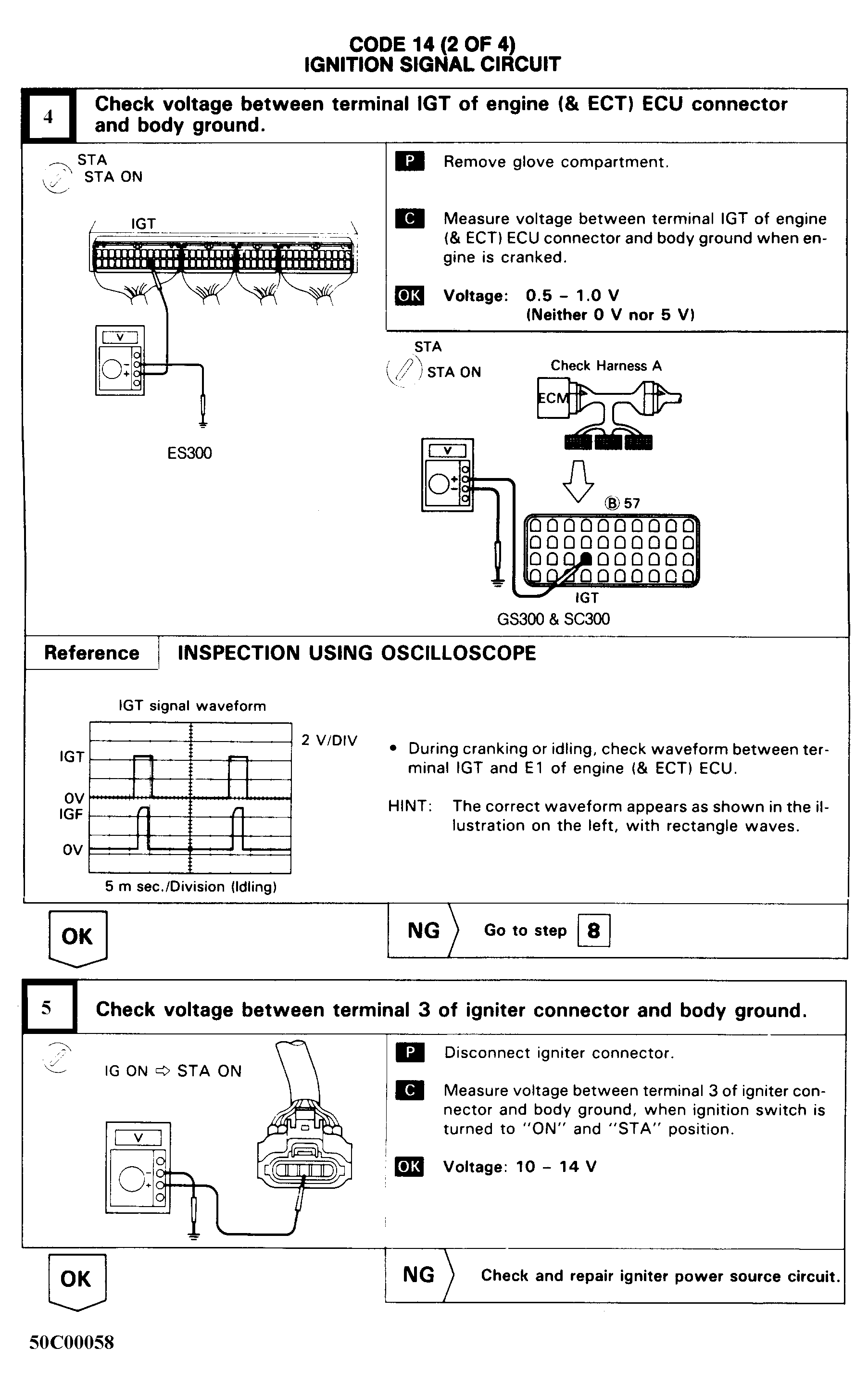

Fig 2: Code 14 - Diagnostic Flowchart (2 Of 4)
G50C00058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Code 14 - Diagnostic Flowchart (3 Of 4)
G92G25342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

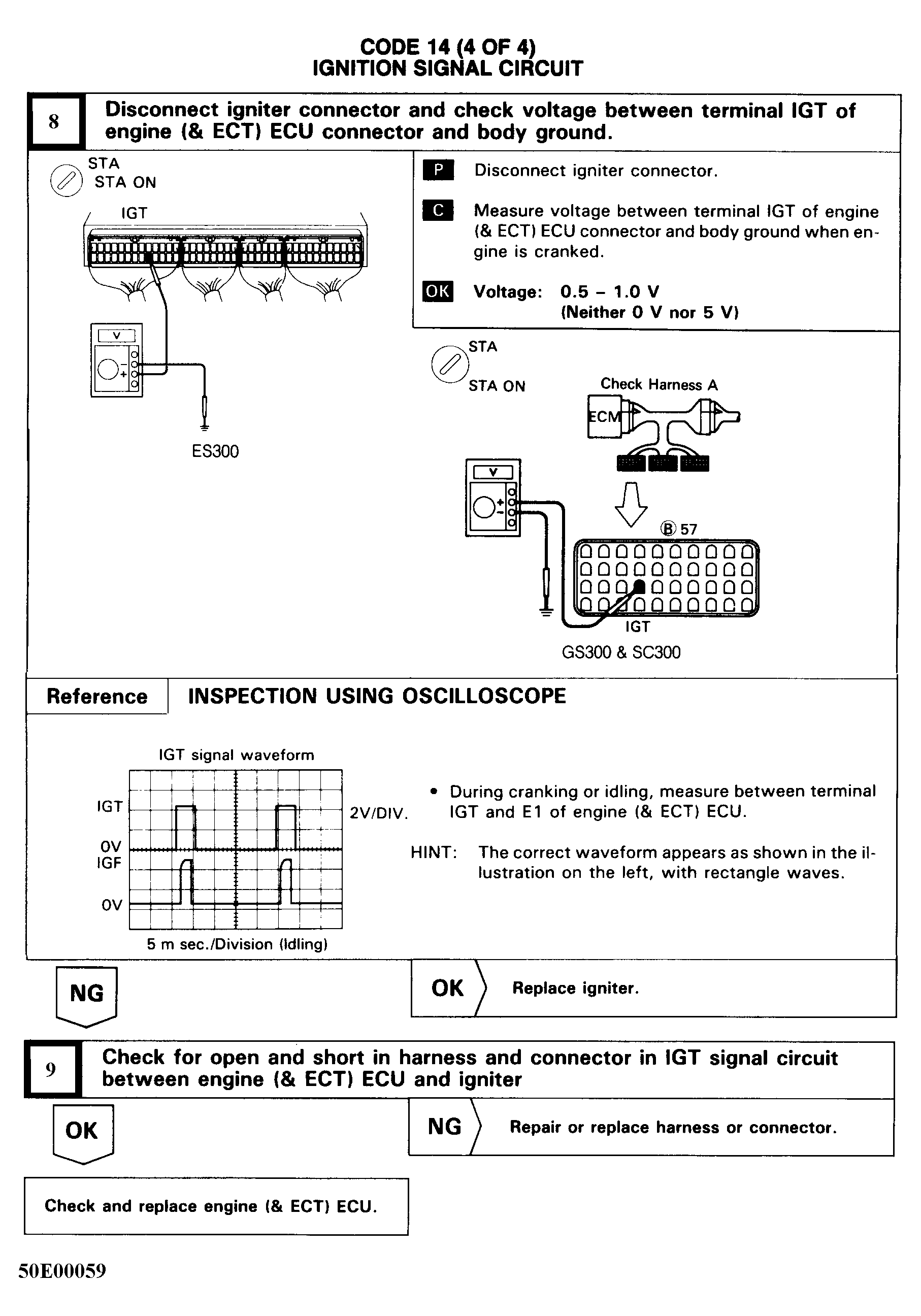

Fig 4: Code 14 - Diagnostic Flowchart (4 Of 4)
G50E00059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
