Ts Terminal Circuit

The sensor check circuit detects abnormalities in the speed sensor signal which can not be detected with the diagnostic code check. Connecting terminals Ts and E1 of the check connector in the engine compartment starts the check.

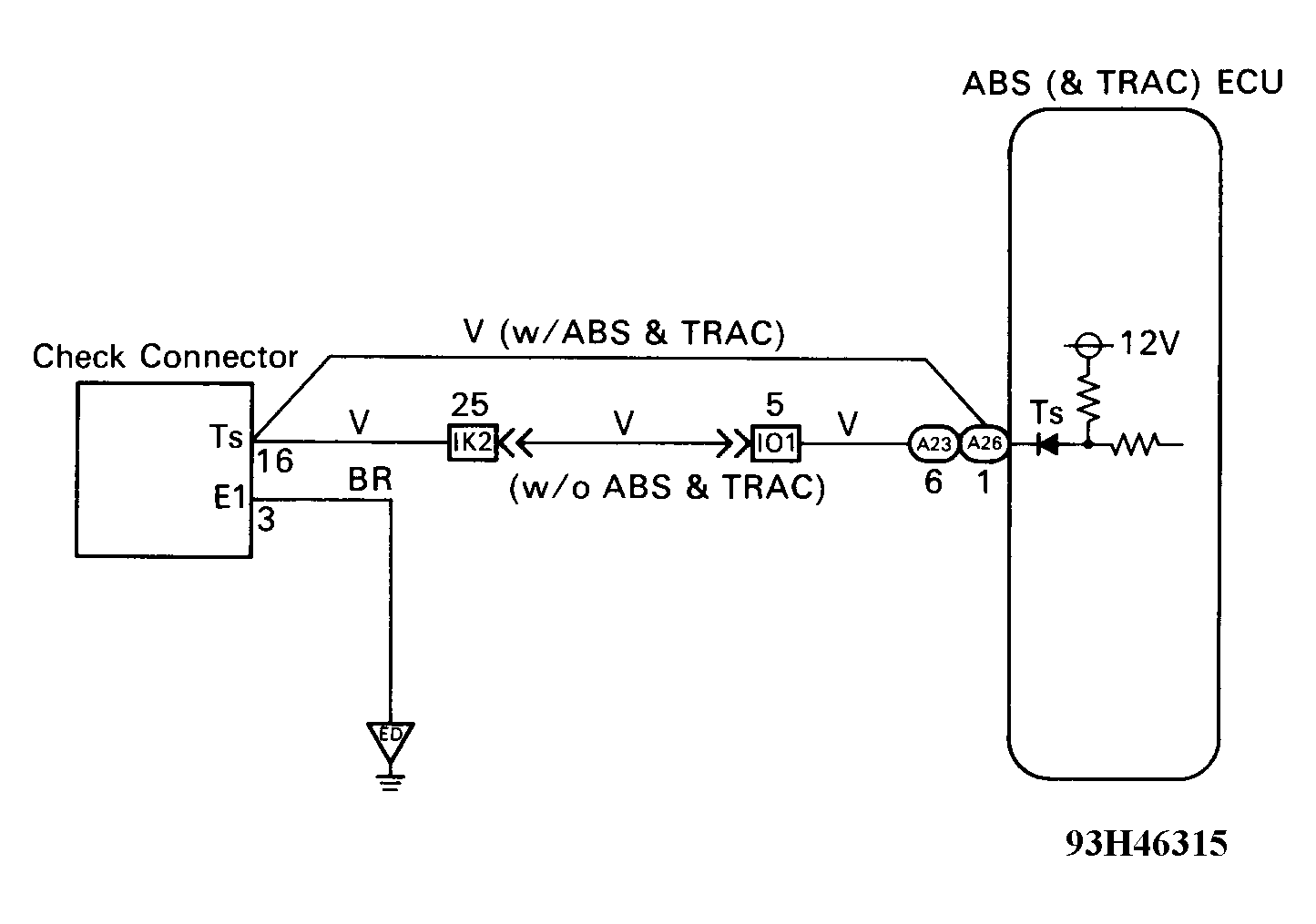

Fig 1: Ts Terminal Circuit Wiring Schematic

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

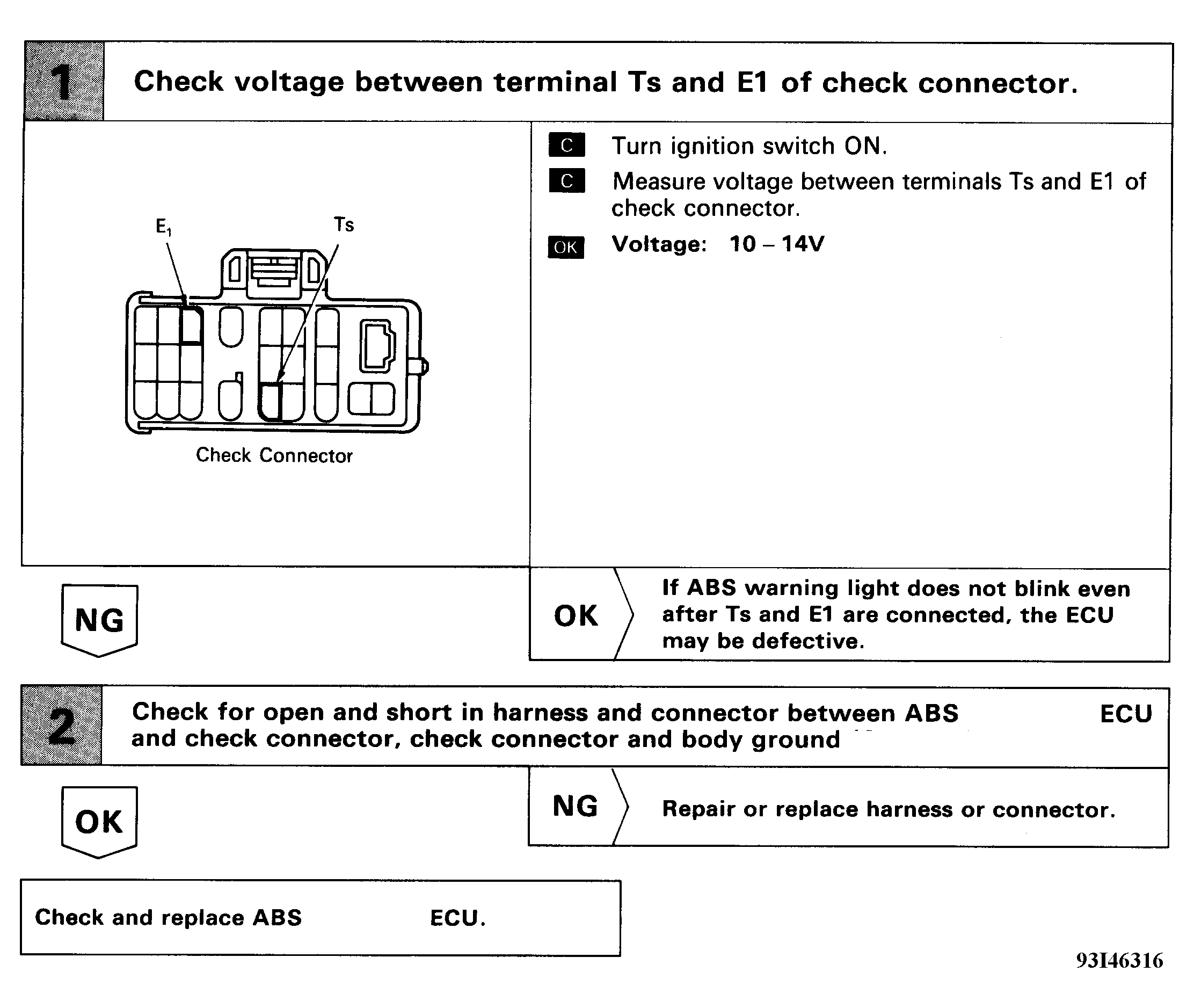

Fig 2: Voltage Check At Ts and E1 of Check Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
